| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Transportation / Transportation Facilities / Roadway Safety |
| Label: | guardrail , traffic barrier , crash barrier |
| Price: |
-
|
| Min. Order: | - |
| Last Online:12 Jan, 2023 |

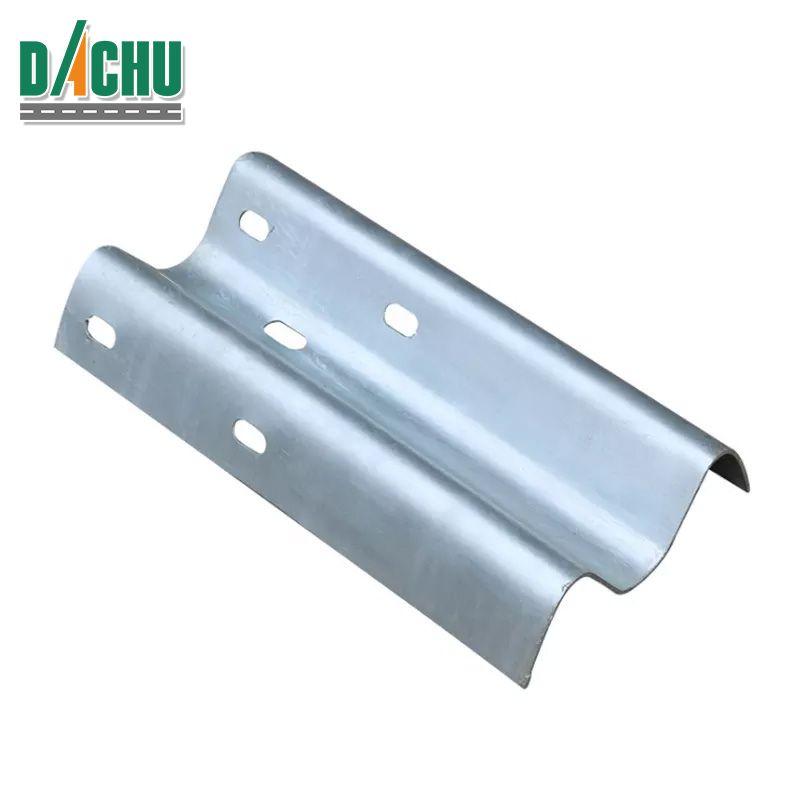

hot dip galvanized w-beam guardrail is cost-effective highway barriers designed to reduce the collisions, preventing vehicle impact and lessen the likelihood of vehicles overturning. It is the most common crash barriers used on South African highways.
|
Guardrail Standard |
SANS 1350 |
|
Totally Length |
4130MM |
|
Effective Length |
3810MM |
|
Base Steel thickness |
2.6MM / 3.25MM;Can be customized |
|
Material |
S355JR Steel |
|
Yield Point |
Minimum 345Mpa (50000psi); |
|
Tensile Strength |
Minimum 483Mpa (70000psi); |
|
Surface Treatment |
Hot Dip Galvanized |
|
Zinc Coating |
Average 55μm or 395g/m2;Can be customized |
|
Coat Standard |
SANS 121 |
|
Free Sample |
Available |
• To meet the needs our customers, we supply straight and pre-curved Hot dip galvanized W-beam guardrails
• Generally, straight Hot Dip Galvanized W-Beam Guardrail just can be applied to the curves with a radius greater than 45m by being lined up for transitioning smoothly.
• For the radius less than 45m, the pre-curved W-beam guardrail product exploits its advantages to a full.
• Durability: The galvanized steel construction ensures long-term durability, even in challenging environments.
• Corrosion Resistance: The hot dip galvanization process provides superior corrosion resistance, extending the lifespan of the guardrail.
• Enhanced Safety: Hot dip galvanized W-beam guardrails effectively redirect vehicles and minimize the impact of collisions, reducing the risk of injuries and fatalities.
• Low Maintenance: With minimal maintenance requirements, these guardrails offer a cost-effective solution for roadside protection.
