FD-6T high speed thread making machine automatic bolt threading machine

Model:FD-6T
Brand:FEDA
Origin:Made In China
Category:Industrial Supplies / Metallurgy Machinery
Label: -
Price: US $4350 / set
Min. Order:1 set
Inquire Now

Member Information

Detail

Feda Industry Co., Ltd

Free MemberGuang Dong - China
Last Online:06 Jun, 2025

Product Description

1. Automatic feeding with adjustable brackets

2. Speed is adjustable for different products

3. 54mm hole diameter for SKD11/DC53 thread rolling dies

4. Max. Rolling pressure is about 60KN

5. It is easy to operate and maintain the machine

6. CE, ISO9001-2008



Specification
Working diameter 2-16mm
Thread pitch 0.4-2.0P
Thread length 50mm
Spindle speed 25rpm
Outside diameter of rolling die 140-160mm
Inside diameter of rolling die(keyway) 54mm
Thickness of rolling die 50mm
Min.center distance between die spindles 100mm
Max.center distance between die spindles 150mm
Machine motor 3KW
Max.rolling pressure 6T
Supply voltage 380V 3P 50Hz
Weight(reference) 600(KG)
Package Dimension(L*W*H) 1200*1000*1350 mm
Dimension(L*W*H) 1150*950*1200 mm



Q1. Are you factory or trading company ?

A1. We are factory of manufacturing thread rolling machine and dies by ourselves.

      Welcome to visit our factory, if possible.



Q2. What is the delivery time ?

A2. Usually 15-25 working days for machine, and 10-15 working days for dies.



Q3. What is the warranty time for machine?

A3. Usually 12 months from B/L date.



Q4. What is the payment term?

A4. T/T, Western Union, Money Gram, Alipay, PayPal.

      50% as deposit, and 50% before shipping.



Q5. Is it possible to design and produce automatic loading & unloading devices?

A5. Yes, Engineer can design special auto feeding device according to your products.

      But please provide the drawing of your products before that.



Q6. How will you solve problems that we face during using your machine?

A6. A. Please provide necessary videos and pictures that can show the problems, our engineers will check        and give corresponding solutions.

      B. Will arrange engineers to solve problems at the scene, if possible.



WhatsApp&Phone:  +86-13312913043

QQ: 3833890347   Wechat: szfeda06


Payment Terms:TT

Product Image

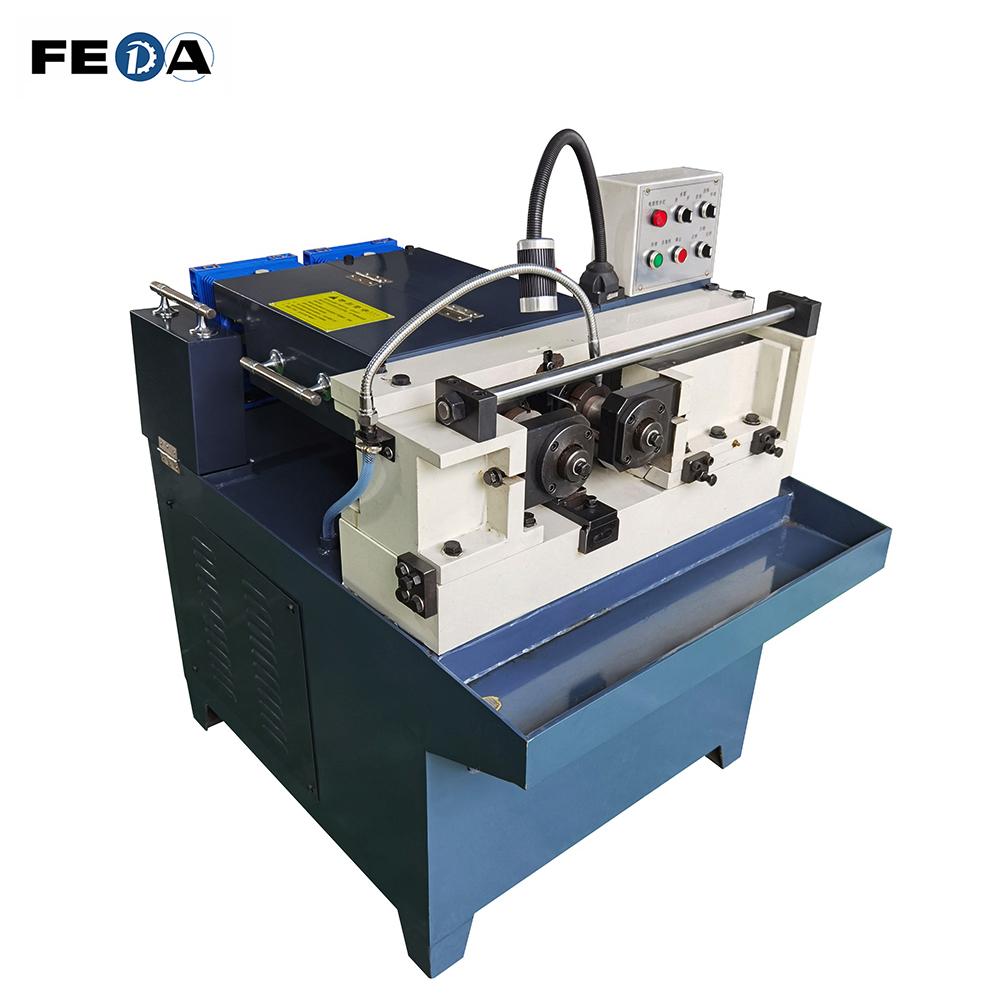

FD-6T high speed thread making machine  automatic bolt threading machine 1
Img 1

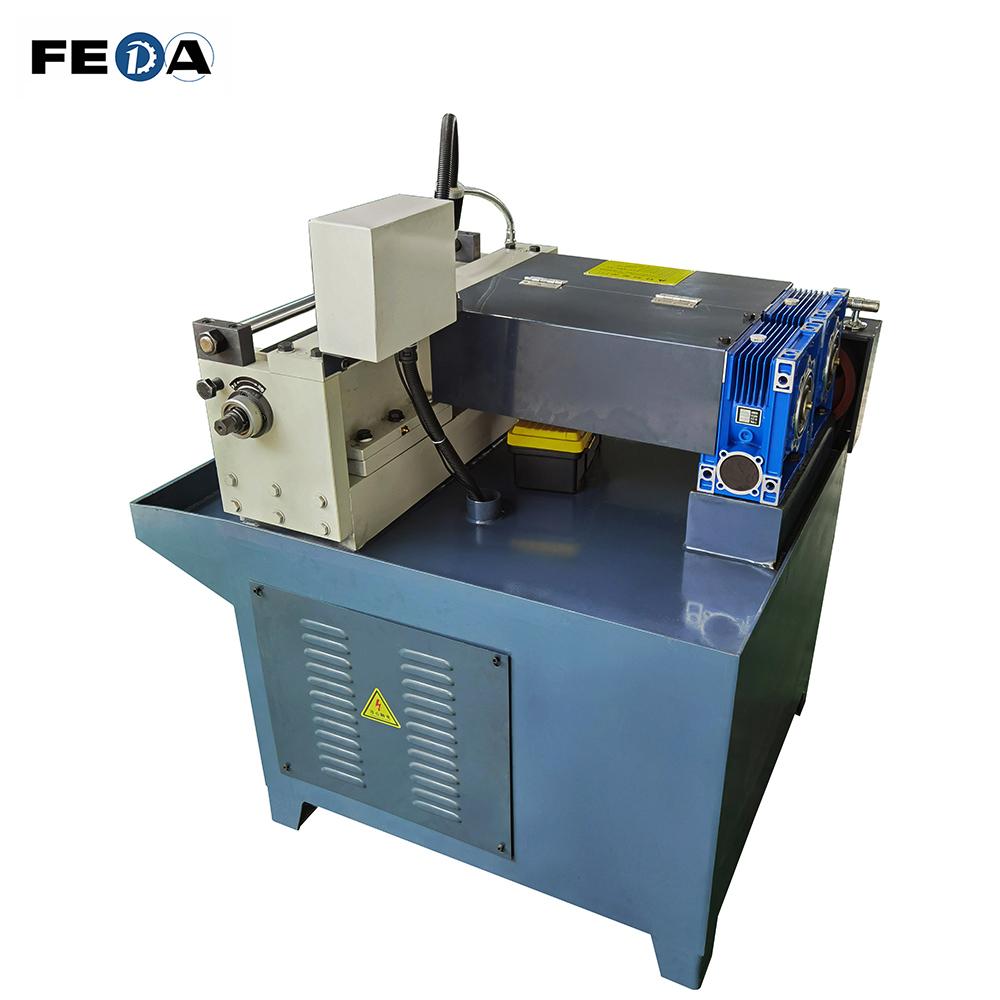

FD-6T high speed thread making machine  automatic bolt threading machine 2
