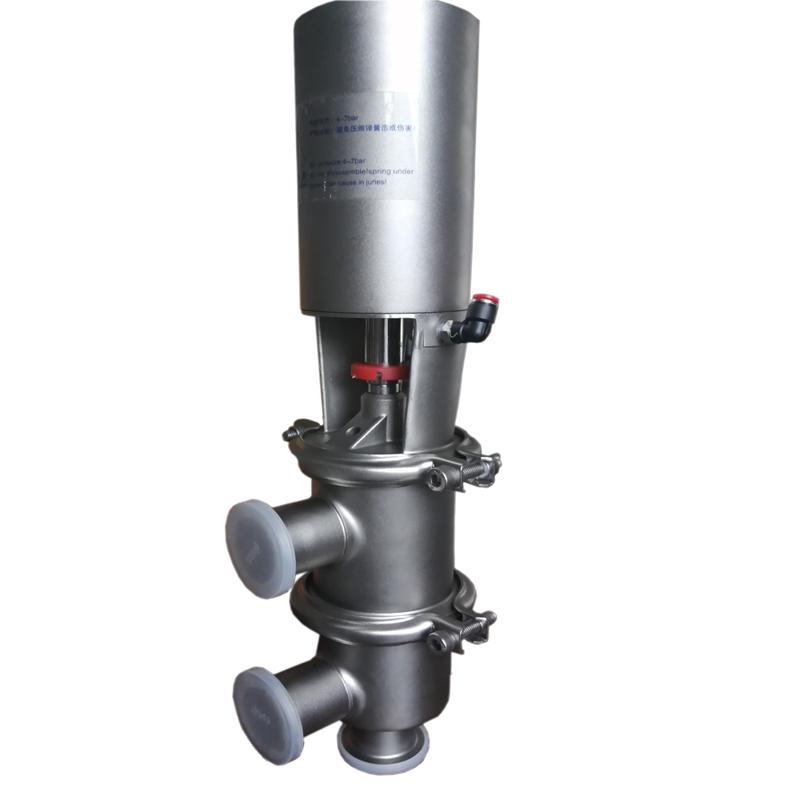

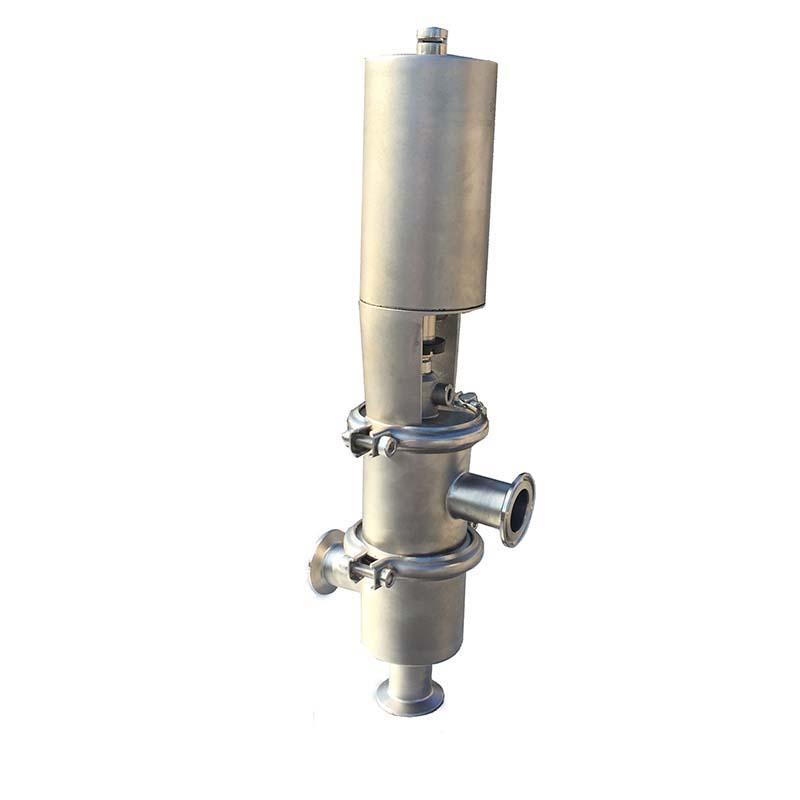

The product introduction of stainless steel sanitary pneumatic directional valve two position three-way is as follows:
Stainless steel sanitary pneumatic directional valve is a type of valve used to control the direction of fluid flow, widely used in industries with high hygiene requirements such as food, beverage, and pharmaceuticals. Its main features include:
Material: The valve body and parts in contact with the material are made of stainless steel AISI 316L, while the other parts are made of stainless steel AISI 304. The valve stem surface is reinforced with chrome plating. The sealing material adopts silicone rubber, ethylene propylene diene monomer (EPDM) or fluororubber that meets hygiene standards
Design features:
Open bracket: Separate the pneumatic part from the valve body for easy inspection and maintenance of the shaft seal
Elastic structure: The gate adopts an elastic structure with good sealing performance. The sealing surfaces of the gate and valve seat are welded with different hardness of Stellite cobalt based hard alloy, which is wear-resistant, high-temperature resistant, and corrosion-resistant
Channel treatment: The inner wall of the channel is precision polished and sterilized to keep the fluid flowing smoothly
Application scenario: Suitable for fluid control in industries such as beer, dairy products, beverages, pharmaceuticals, etc., ensuring smooth material flow and preventing blockages
Technical parameters:
Maximum working pressure: 10 bar
Suitable temperature range:- 10℃~+100℃
Control pressure: 4 bar~8 bar
Maximum particle size: 0.01mm
Maximum oil content: 0.08ppm
Maximum water content: 7.5/kg
These characteristics make stainless steel sanitary grade pneumatic directional valves have a wide range of application prospects in industries such as food, beverage, and pharmaceuticals.
