| Model: | LW-6/LW-7/LW-8 |
|---|---|
| Brand: | Yisen |
| Origin: | Made In China |
| Category: | Industrial Supplies / Farm Machines Tools |
| Label: | Farm Backhoe , Tractor Backhoe , Small Excavator |
| Price: |
US $2000
/ pc
|
| Min. Order: | 1 pc |
| Last Online:29 Mar, 2025 |

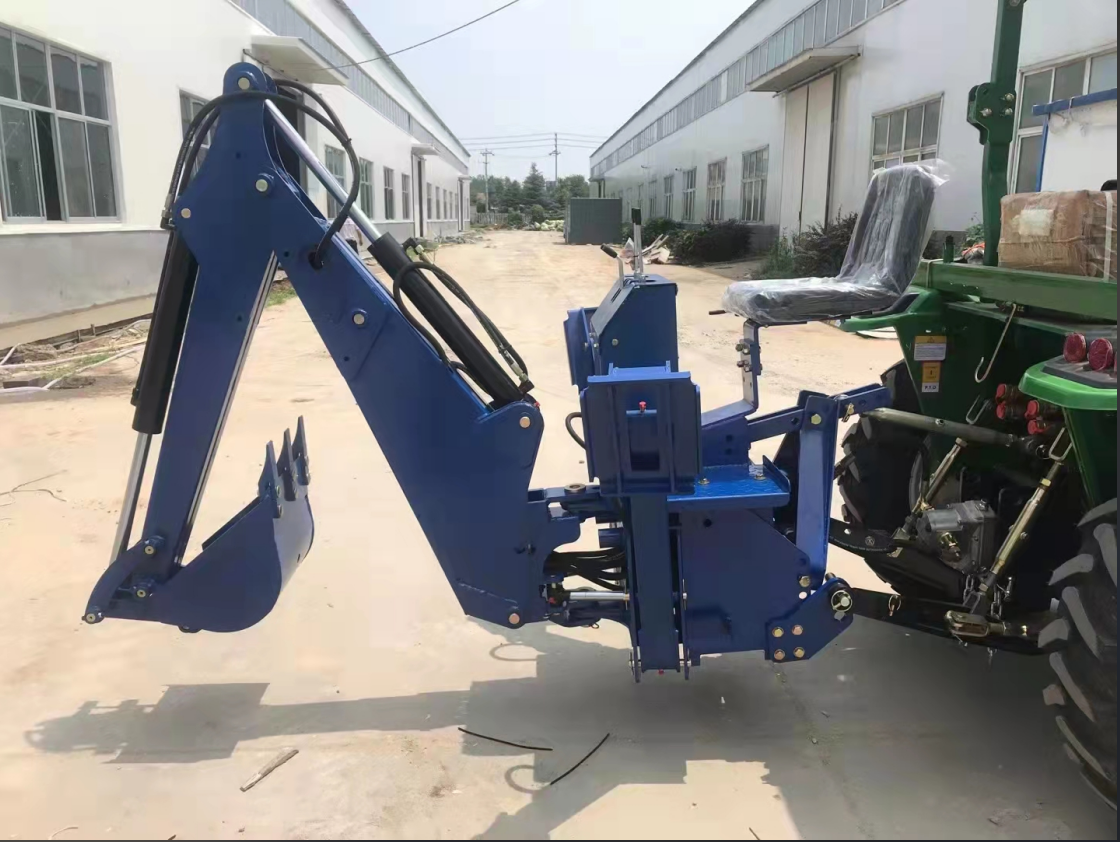

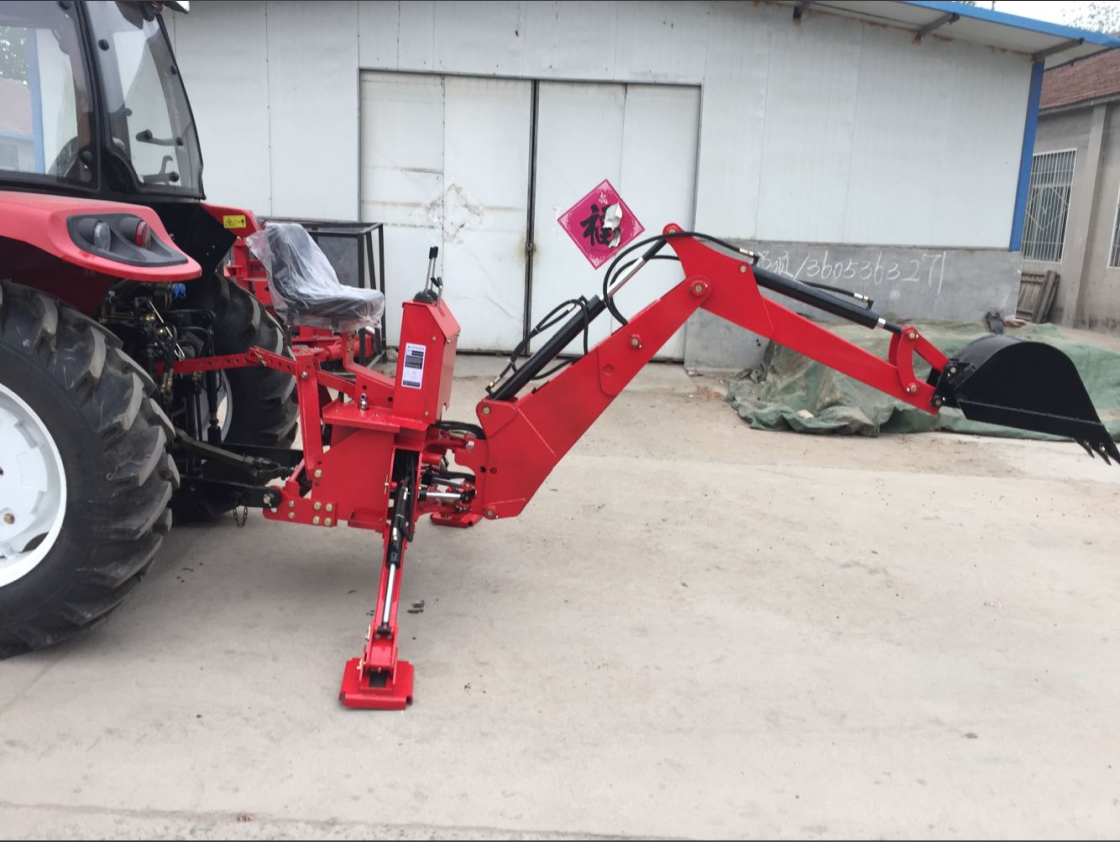

This is a rear excavator designed for tractors. The whole machine adopts hydraulic transmission, the working device is connected to the tractor in a quick-hook manner, and the hydraulic pipeline adopts a quick-change joint, which is very convenient for installation and disassembly. This equipment has a compact structure and is flexible and maneuverable. It is suitable for working in narrow places and can complete construction tasks that large machinery cannot complete. Following is this kind backhoe configuration, please check.
|
Model |
LW—6 |
LW—7 |
LW—8 |
LW—9 |
LW—10 |
LW—12 |
|
Dig Depth |
1850 mm |
2150 mm |
2640 mm |
2900 mm |
3000 mm |
3500 mm |
|
Dig Height |
2500 mm |
3400 mm |
3510 mm |
3900 mm |
4000 mm |
4300 mm |
|
Carry Height |
1400 mm |
1760 mm |
2000 mm |
2362 mm |
2637 mm |
3000 mm |
|
Unload Height |
1733 mm |
1878 mm |
1952 mm |
2413 mm |
2540 mm |
2770 mm |
|
Dig Force |
1300 kg |
1200 kg |
1600 kg |
1900 kg |
2600 kg |
2700 kg |
|
Bucket Rotation Angle |
160° |
160° |
160° |
150° |
150° |
172° |
|
Swing Angle |
140° |
140° |
140° |
160° |
160° |
180° |
|
Operate Oil Pressure |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
|
Bucket Width |
300 mm |
370 mm |
420 mm |
470 mm |
520 mm |
570 mm |
|
Bucket Volume |
0.03 m³ |
0.036 m³ |
0.048 m³ |
0.054 m³ |
0.06 m³ |
0.07 m³ |
