| Model: | YS1404 |
|---|---|
| Brand: | Yisen |
| Origin: | Made In China |
| Category: | Industrial Supplies / Farm Machines Tools |
| Label: | Big Farmland Tractor , Heavy Duty Tractor , 140 Hp Tractor |
| Price: |
US $16980
/ pc
|
| Min. Order: | 1 pc |
| Last Online:29 Mar, 2025 |

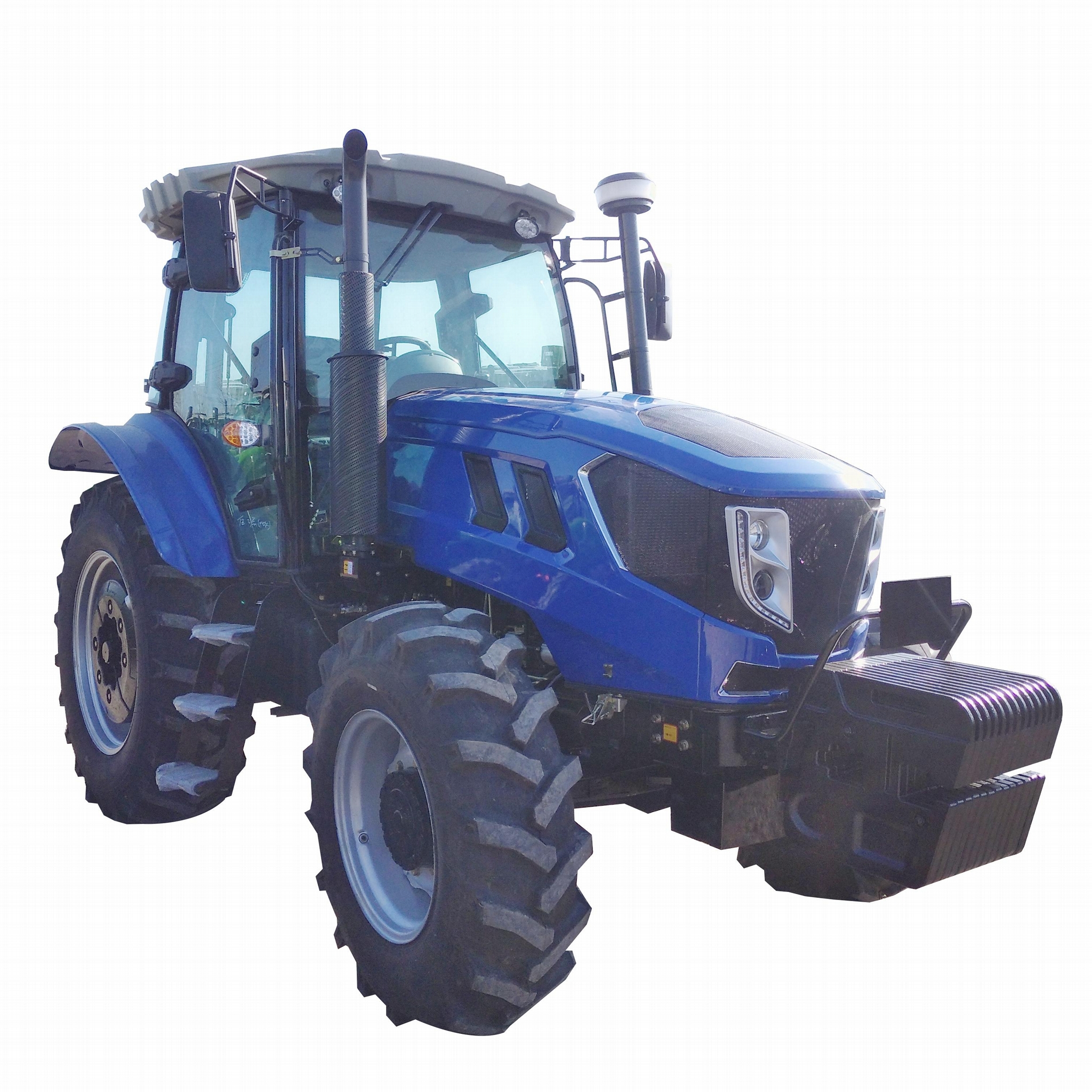

This is a large chassis 140 horsepower tractor. We installed a YTO brand 6-cylinder diesel engine for it, which is powerful and stable. It is also equipped with large-size tires, which further improves traction and off-road capabilities. It also has 16 forward gears and 8 reverse gears to meet different operating needs. With a net weight of about 4,500 kg and strong traction, it can drag heavy farm tools to complete difficult operations in your farmland. It is suitable for plowing, deep loosening, leveling, combined land preparation, harrowing, ridging, sowing and other operations on large farms, helping users pursue higher efficiency and benefits. Following is our product configuration, please check.
|
Tractor Model |
YS1404 |
|
Horsepower and Chassis |
140 Hp， TD Chassis |
|
Wheel Drive |
4x4 |
|
Dimension |
4580 x1870 x 2950 mm |
|
Wheel Base |
2210 mm |
|
Wheel Tread |
1700 mm |
|
Ground Clearance |
420 mm |
|
Net Weight |
4800 kgs |
|
Front and Rear Counterweight |
Have |
|
Air Condition Cabin |
Have |
|
Engine Brand and Model |
YTO, LR6M3Z-T146X1-U2 |
|
Emission |
Ⅱ |
|
Engine Type |
Water-cooled, Inline, Four-stroke, Direct injection |
|
Cylinder Number |
6 |
|
Rated Power and Rated Speed |
103 kw， 2300 r/min |
|
Steer |
Hydraulic Power |
|
Gearshift and Transmission |
16F+8R ， 4x(2+1)x2 |
|
Clutch |
Double Stage |
|
Tire Size |
18.4-34/14.9-24 |
|
Three Point Hitch |
Back, Ⅱ Type |
|
Lift Cylinder |
Double Cylinder |
|
Hydraulic Output Valve |
Three Groups, 6 Valves Total |
|
PTO |
6 Splines, 540/1000 rpm |
|
Traction Device |
U Type Tow Bar |
|
Optional 1 |
Roll Bar and Roof |
|
Optional 2 |
16.9-34/12.4-24 Inch Tire |
|
Optional 3 |
Swing Tow Bar |
|
Optional 4 |
Air Brake System |
