Product Description：

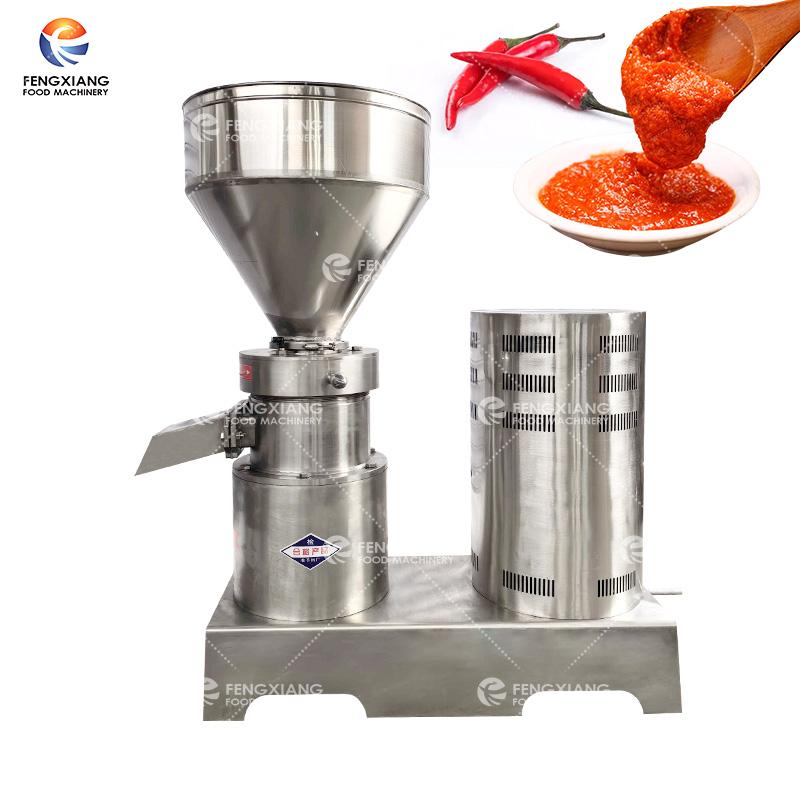

The 130-type semi-stainless steel and 85-type all-stainless steel colloid mills are machines for fine processing of fluid materials. Their structural form is the first in China, with advanced design. The grinding head speed can be adjusted according to the requirements of the processed materials, and the explosion-proof motor can be replaced at will for different processing objects and processing environments. The main technical indicators have reached the advanced level of similar domestic products. This machine has excellent ultra-fine grinding, dispersion, emulsification, homogenization, mixing and other efficiencies. After the materials are processed by this mill, the particle size can reach 2-60 microns, and the homogeneity can reach more than 95%. It is an ideal equipment for ultra-fine processing. It combines the various performances of homogenizers, ball mills, three-roll mills, mixers and other machines, and its efficiency is several times that of the above machines. It can be widely used in food, medicine, chemicals, cosmetics, light industrial plastics and other industries.
|
Model |
130 |
|
|
Material processing fineness |
2-70mm |
|
|
Output flow |
0.5-4（t/h） |
|
|
Motor |
Model |
Y160M |
|
|
Power |
7.5-11kw |
|
|
Speed |
2930rpm |
|
Dimension |
127*38.5*102.5cm |
|
|
Weight |
420kg |
|
Feature：
This machine not only maintains the characteristics of the traditional colloid mill, such as reasonable structure, simple operation, convenient maintenance, small size and light weight, but also has wide adaptability, simple speed change, and can replace different types of motors for different processing objects.
1. The main parts of this machine are made of stainless steel, which is corrosion-resistant and non-toxic.
2. The main working parts of this machine are the stator and rotor, which are well processed. The gap between the stator and the rotor can be slightly adjusted through the positioning plate. It is equipped with a dial, which is easy to control and ensure the processing quality of the product.
3. According to different uses, stators and rotors of different materials can be selected, which are easy to disassemble and assemble.
4. The speed of the machine can be adjusted. Users can order the appropriate speed from our unit according to the material processing conditions.
