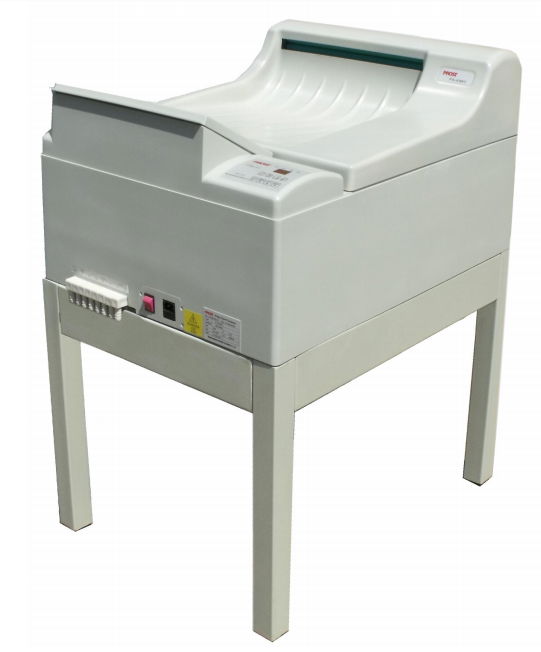

Features of Film Processor

l Densely packed roller group to ensure the transfer of various sizes of films.

l Regular running of the rollers reduces the crystallization on their surface and effectively activates the circulation system.

l Adjustable direction of the bridge ensures no jammed phenomenon of films.

l Adjustable interval distance of roller group structure avoids indentation phenomenon of different films.

l Professional prototype drying system ensures both sides of the films can be evenly winded, avoiding film water marks.

l Microcomputer program control is stable and performance reliable .

l Large digital display panel, elegant, simple, and integrates all functions.

Technical Data of Film Processor

l Film size: minimum 60×100mm; maximum 360×2000mm

l Rinse time: 6-14min ( one minute step adjustable)

l Developing time: 90-210 seconds

l Theoretical value of Film processing capacity: 8-18 pcs/hour (356×432mm); 30-72 pcs/hour (80×300mm)

l Developing temperature: 20-40℃ Fusing temperature: 20-40℃ Drying temperature: 20-70℃

l Washing temperature: normal temperature (5-25℃)

l Replenishment volume: automatic/manual 50-500ml/㎡

l Medicine tank capacity: about 6L for developing, about 6L for fixing, and about 6L for washing

l Water consumption: 2L/min during film processing

l Net weight: 40kg

l Power supply: 220V/50Hz/8.8A

l Overall dimensions: length 800×width 580×height 420mm (height does not include bracket)
