| Model: | - |
|---|---|
| Brand: | Aolong |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | dr , pulse x ray |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:10 May, 2024 |

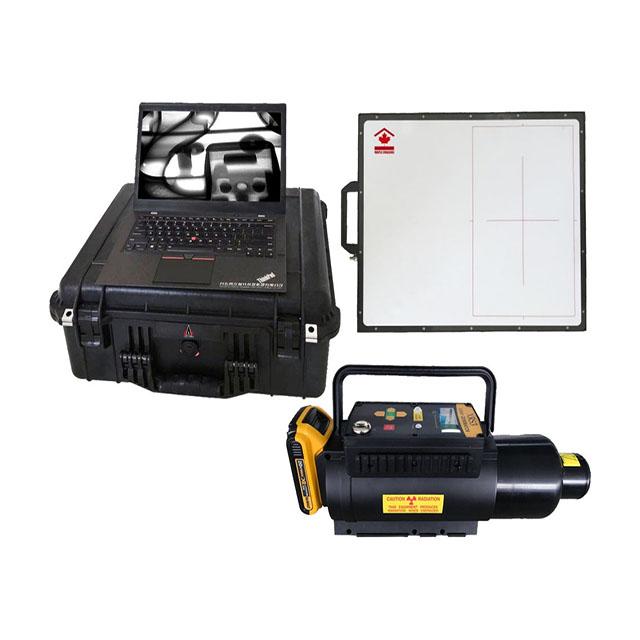

The X-ray DR system control center adopts Siemens S7-200 type programmable PLC, X-ray DR system positioning system adopts advanced magnetism positioning method which makes the product have many advantages, such as high integration, big memory, high coefficient of safety, high security, high sensibility and reliability.
Equipment Characteristic
● Portable Digital Radiography system is Small outsize,and with high penetrating ability.
● The DR system Use min input voltage but generate high voltage.
● X-ray machine and flat panel detector total weight is around 8kg.
● Low cost,reduce working time and labor.
● Maintenance cost is lower than radioactive source.
● Friendly operation interface, with pulse setting.
● X-ray DR system is easy to be fixed on tripod and other fixing tools.
● X-ray leakage is very limit,safe operation distance is 3 meters from the back of X-ray machine.
● The DR system doesn't contain bad and dangerous object, don't need worry about the transportation.
Parameters
● X-ray voltage: 150kV,270kV, or 350kV(optional )
● Output dose: Max 4.OmR/pulse, min 2.6mR/pulse
● X-ray size: 1/8inch ( 3mm )
● X-ray pulse width:25n second
● MAX duty circle: 200 pulse/4mins ( 3000pulse/ h )
● Warming up: no
● Flat panel detector size: 35cm x 43cm
● Pixel pitch : 140μm
| AL-DR-150 | AL-DR-270 | AL-DR-370 | ||
| Voltage | 150kV | 270kV | 370kV | |
| Output | Max 4.0 Mr/pulse,min 2.6Mr/pulse,12 inches away from the source. | |||
| Pulse rate | 15 pulses/second | 25 pulses/second | 10 pulses/second | |
| Pulse width | 60nanoseconds | 25nanoseconds | 15nanoseconds | |
| Source dimension | 3mm | |||
| Beam angle | 40° | |||
| Max.penetration | 12mm(A3 Steel) | 23mm(A3 Steel) | 50mm(A3 Steel) | |
| Weight | 4.5kg | 5.4kg | 10.5kg | |
| Power | 20V portable and rechargable nickel-cadmium battery | |||
| size | 350×430mm | |||
Inspection Sample
