| Model: | HM36P |
|---|---|
| Brand: | HMW |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | CNC lathe , CNC lathe , CNC lathe |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:08 Jul, 2023 |
motor drive to achieve high precision, high rigidity and speed stability. The heat sink type headstock design and symmetrical ribs can effectively reduce the spindle temperature rise and increase the spindle stability and bearing life.

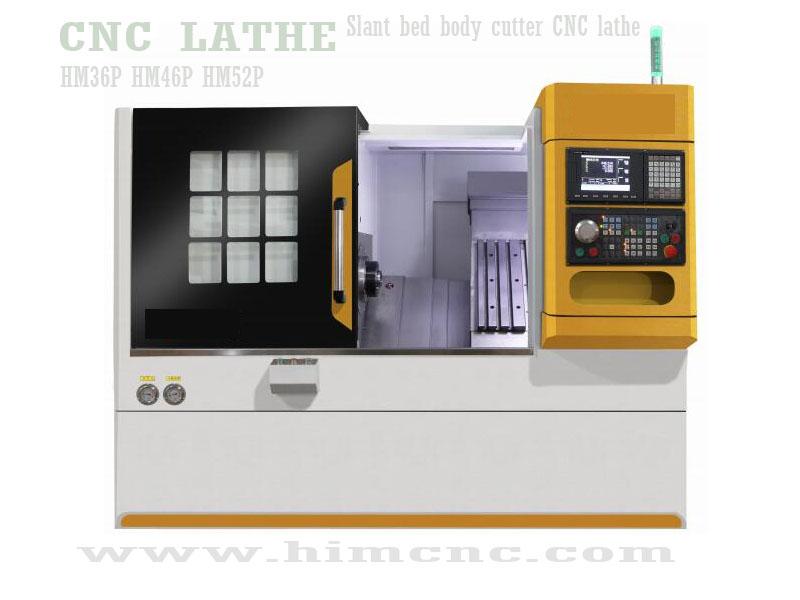

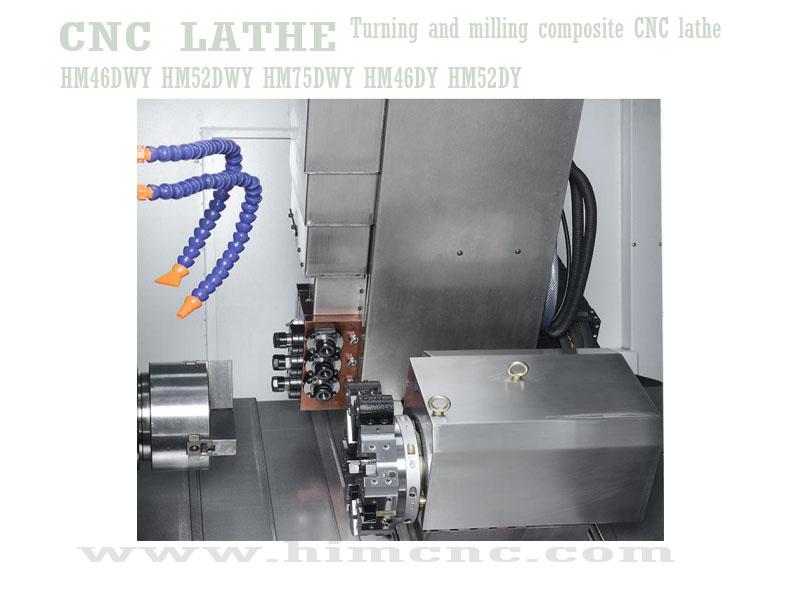

◆High rigidity, the bed is inclined by 30° or 45°. It is made of highquality cast iron resin sand and compact structure. It has good rigidity and strong shock resistance. The large carriage and the tool holder are inclined, which makes the operation and chip removal of the machine tool very convenient, and the floor space is small, and it is very pleasant.
◆Twoaxis rotation is directly connected by the servo motor and the precision ball screw through the elastic coupling. The force is good and the positioning accuracy is high. The computer automatic lubrication system is used to force lubrication of the linear guide and the ball screw.
◆The Xaxis and Zaxis adopt highrigidity linear slide rails. The calculated span is obtained between the track and the track. Low resistance, high rigidity and high precision. The displacement speed can reach 28M/min, which improves work efficiency and shortens processing. time.
◆The hydraulic station adopts Taiwan variable pump, hydraulic motor, solenoid valve and air-cooling device, which has low noise and low oil temperature.
◆ Fully enclosed protection, good waterproofness, and overall casting
|
Machine data\model |
unit |
HM36P |
HM46P |
HM52P |
|
|
Processing range |
Maximum turning diameter on the bed |
mm |
Φ320 |
φ450 |
Φ500 |
|
Maximum processing diameter |
mm |
Φ200 |
Φ300 |
Φ400 |
|
|
Maximum processing length |
mm |
250 |
300 |
320 |
|
|
Spindle parameter |
Spindle type |
A2-4 |
A2-5 |
A2-6 |
|
|
Chuck size |
5-inch chuck or36 type collet |
6-inch chuck or46 type collet |
8inch chuck or 52 type collet |
||
|
Spindle through hole diameter |
mm |
φ46 |
φ56 |
Φ66 |
|
|
Pull tube through hole diameter |
mm |
φ36 |
φ46 |
Φ52 |
|
|
Spindle rotation range |
rpm |
0-6000 |
0-6000 |
0-4500 |
|
|
X\Z axis parameter |
Maximum stroke (X/Z) |
mm |
800/250 |
900/350 |
900/350 |
|
Movement speed (X/Z) |
m/min |
28/28 |
28/28 |
28/28 |
|
|
Knife tower |
8/10/12 (optional) | 8/10/12 (optional) | 8/10/12 (optional) | ||
|
Minimum setting unit (X/Z) |
mm |
0.001 |
0.001 |
0.001 |
|
|
Axis accuracy |
Spindle index repeat positioning accuracy | ° | ±0.005° | ±0.005° | ±0.005° |
| Spindle indexing accuracy | ° | ±0.002° | ±0.002° | ±0.002° | |
|
X/Z axis repeat positioning accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
|
|
X/Z axis repeat positioning accuracy |
mm |
±0.002 |
±0.002 |
±0.002 |
|
|
Motor Power |
Spindle motor power |
kw |
4.0/5.5 |
5.5/7.5 |
5.5/7.5 |
|
Cooling pump power |
kw |
0.25 |
0.25 |
0.25 |
|
|
Hydraulic motor power |
kw |
0.75 |
0.75 |
0.75 |
|
|
X-axis motor power |
kw |
1.7 |
1.7 |
2.4 |
|
|
Z axis motor power |
kw |
1.7 |
1.7 |
2.4 |
|
|
Total machine weight |
kg |
2380 |
2800 |
3100 |
|
|
Dimensions (length * width * height) |
mm |
2100*1600*1950 |
2100*1600*1950 |
2300*1600*2000 |
|
Remarks: The company's machine tools are continuously researched and improved. If the appearance and technical parameters are for reference only, the actual appearance technical parameters are subject to the order.
