| Model: | HM52DE |
|---|---|
| Brand: | HMW |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | SLANT BED CNC LATHE , TURRET TURN-MILL |
| Price: |
US $9000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:17 Mar, 2023 |

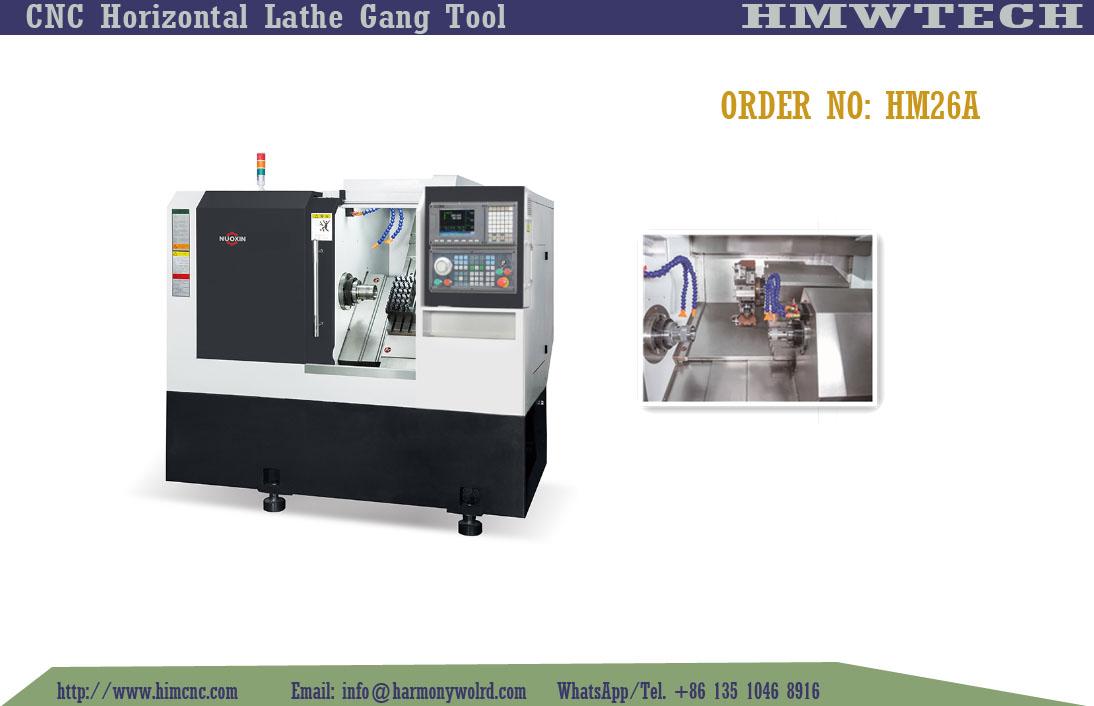

Slant Bed CNC Lathe Gang Tool CNC Horizontal Lathe Gang Tool Series

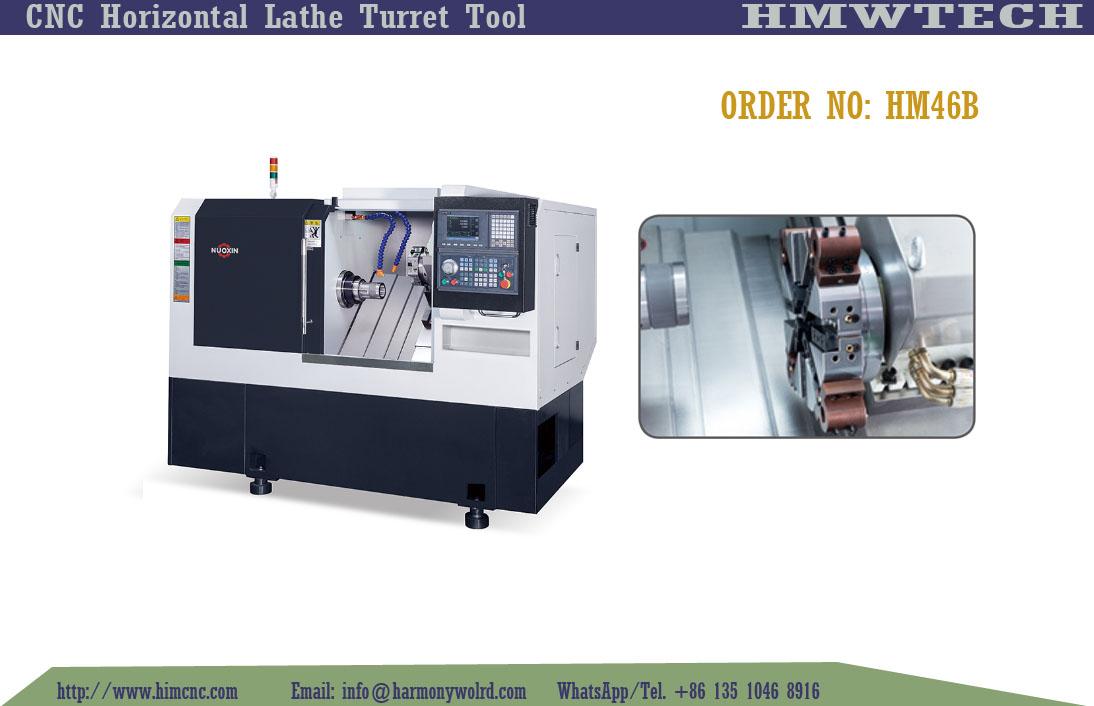

CNC Horizontal Lathe Turret Tool Slant Bed CNC Lathe Rotating Turret Tool Series

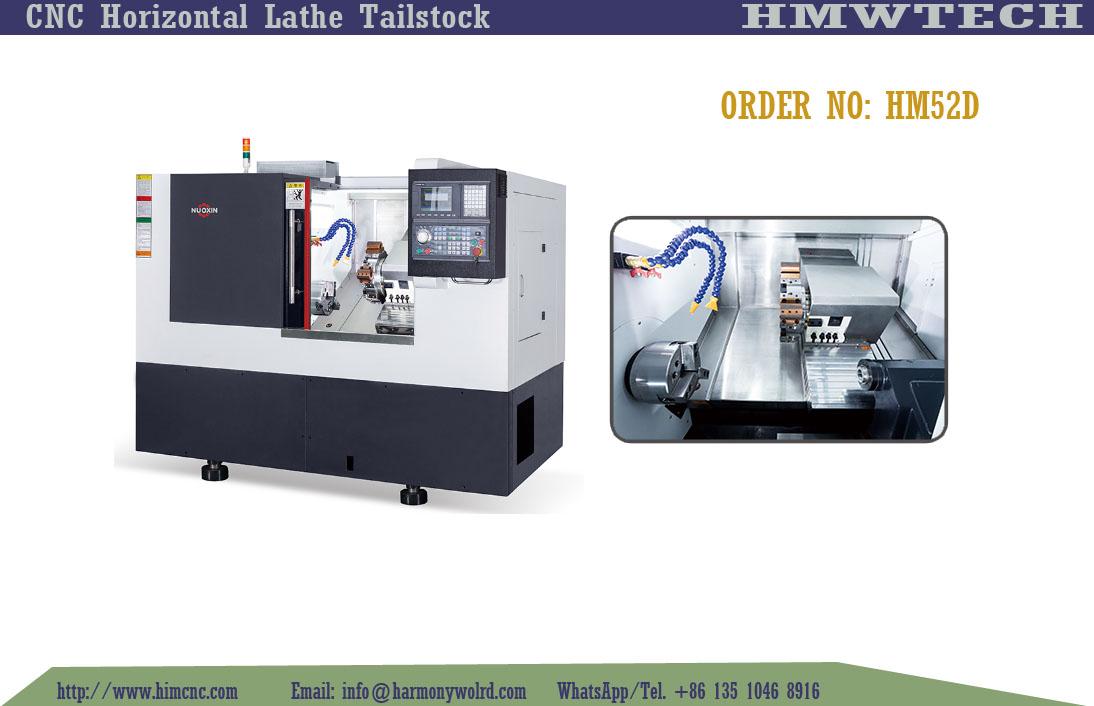

CNC Horizontal Lathe Tailstock Slant Bed CNC Lathe Turret Tailstock Series

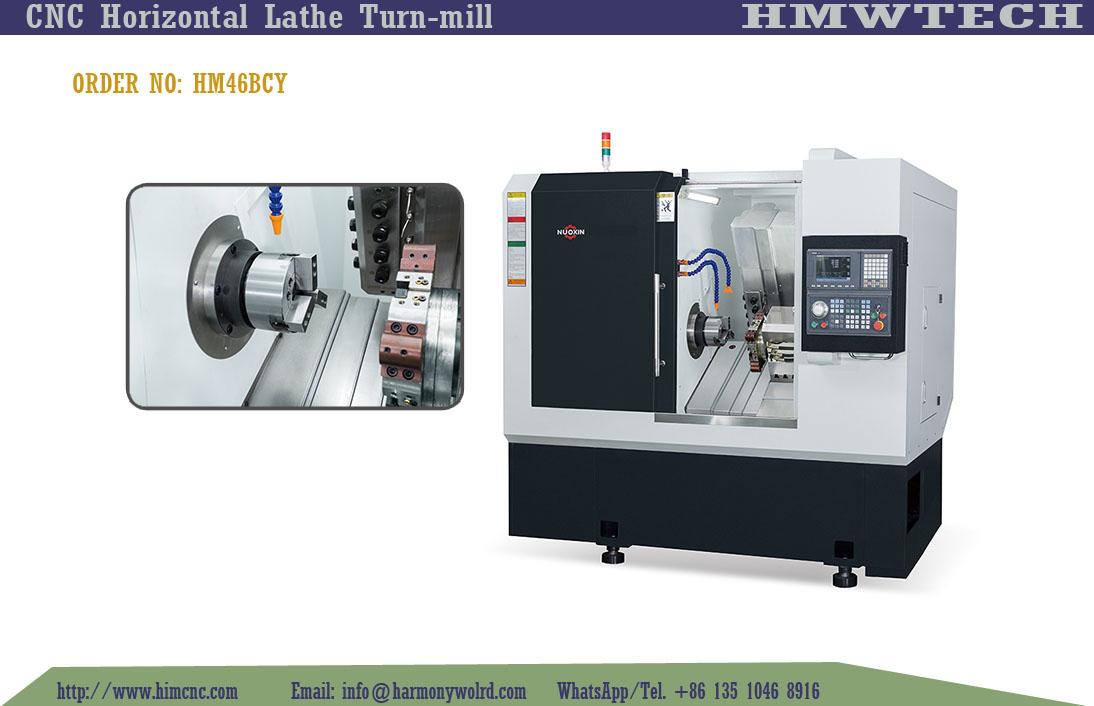

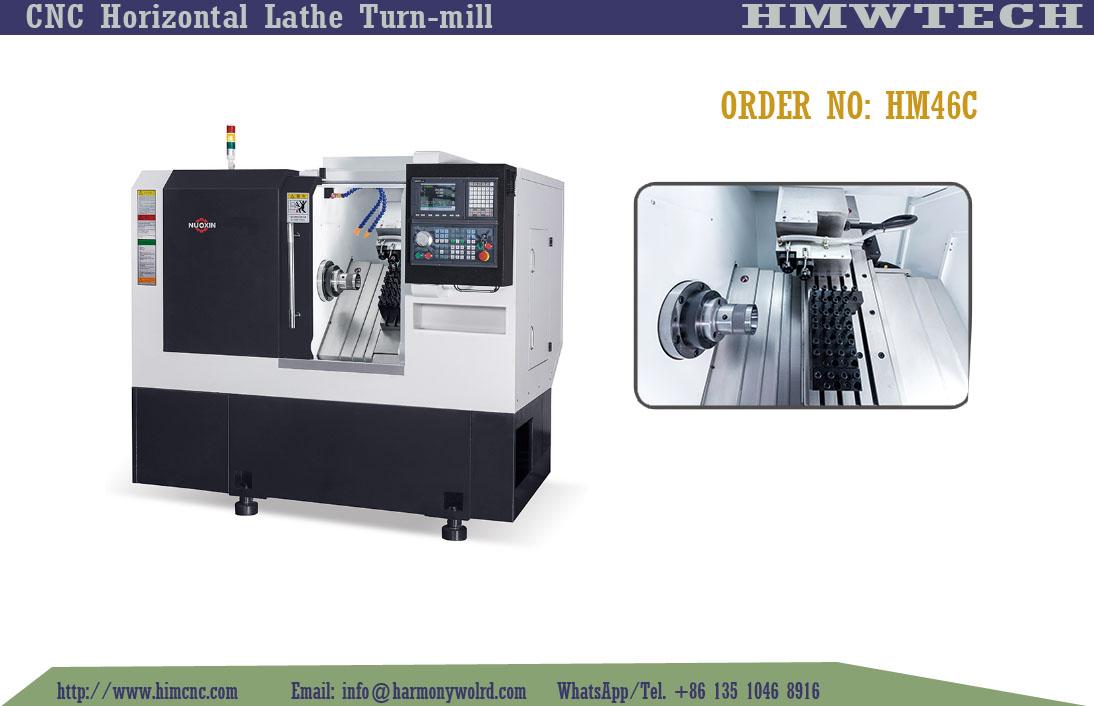

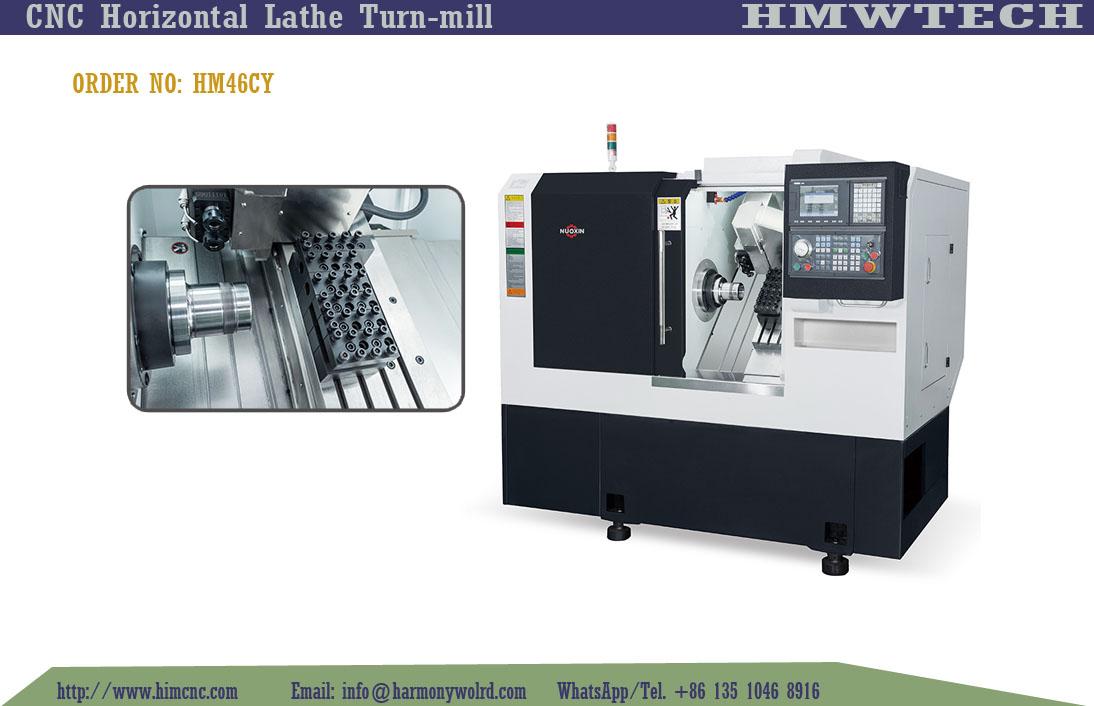

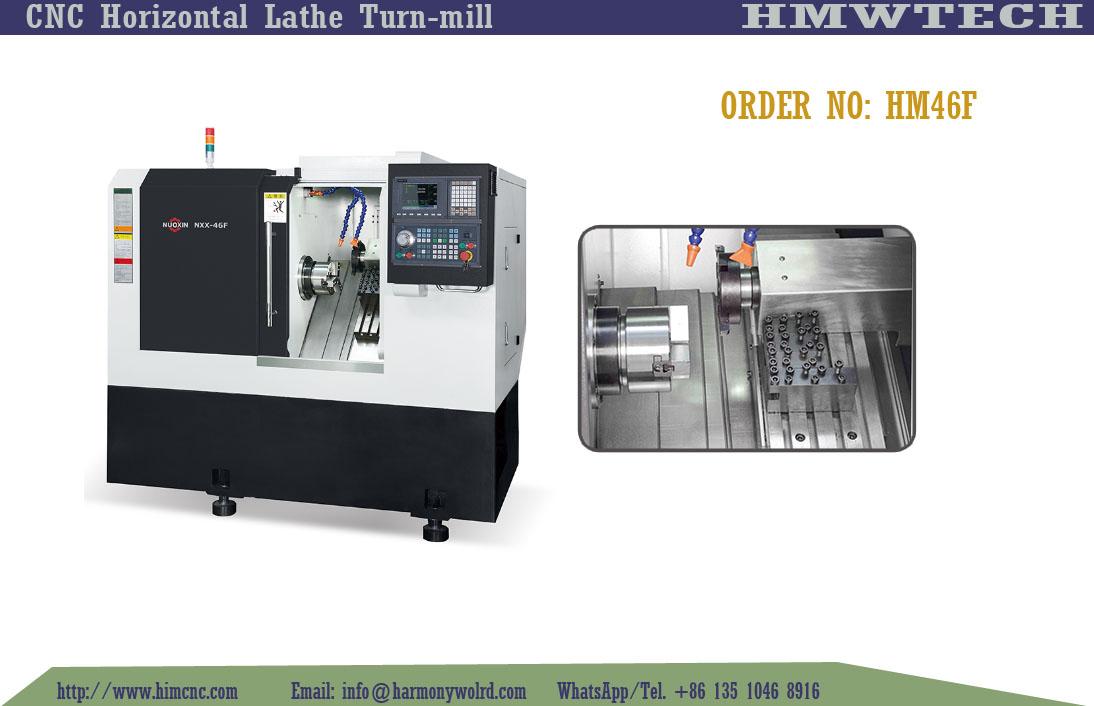

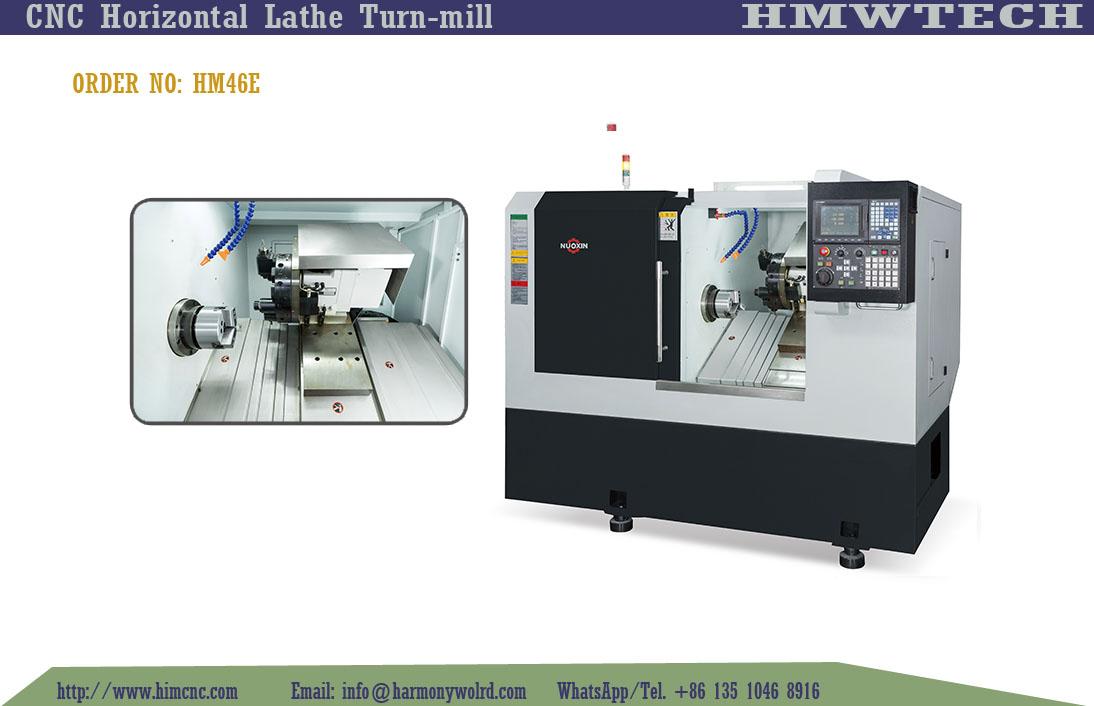

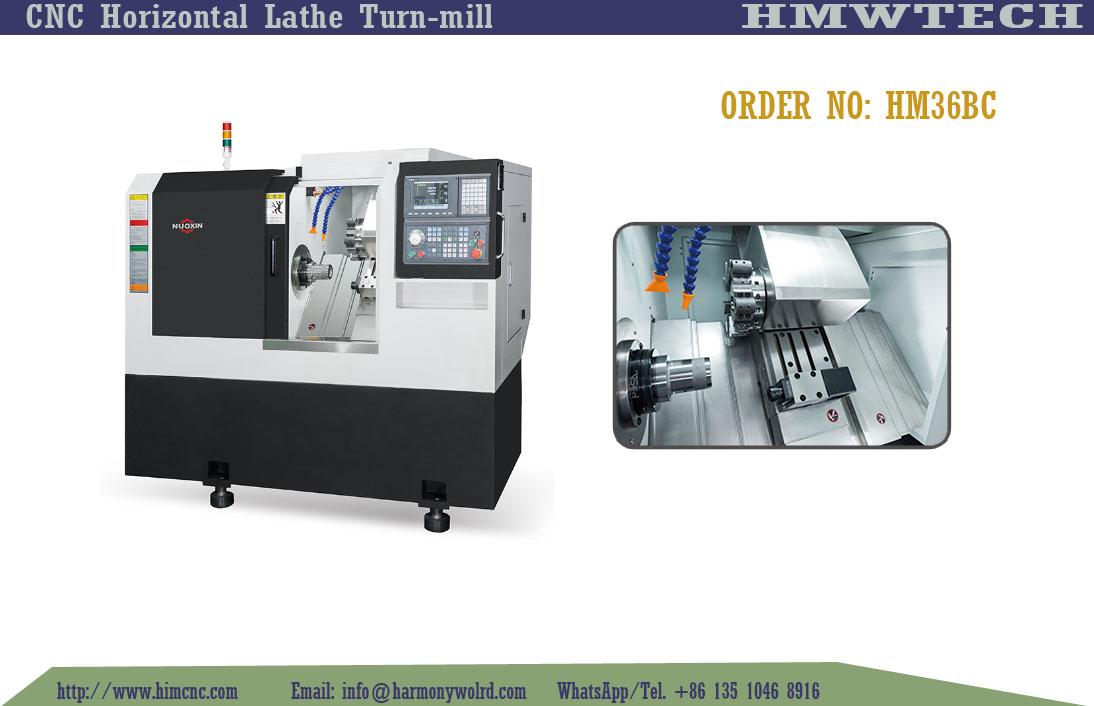

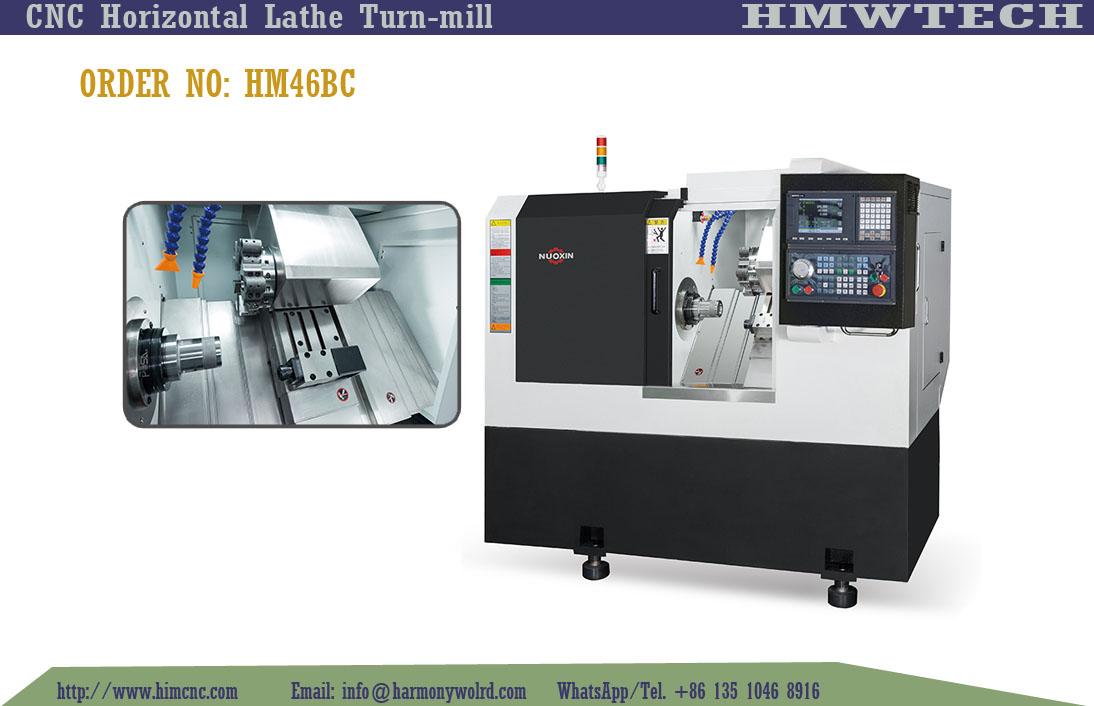

CNC Horizontal Lathe Turn-mill Slant Bed CNC Lathe Turn-mill Series
Slant Bed CNC Lathe Power Turret Turn-mill Series CNC Lathe
SLANT BED CNC LATHE/POWER TURRET TURN-MILL SERIES
Product Features
1.High precision, high rigidity, heavy load sleeve spindle.
2. lntegral cast iron base, inclined bed, good rigidity, convenient operation and chip removal.
3. High rigidity, high speed, high precision heavy-duty linear guide, precision ball screw.
4.Servo spindle, servo power rotating turret, and side milling and end milling power headsare used to improve the rigidity, stability and indexing accuracy of machining, thereby exertingexcellent heavy-cutting processing capabilities and realizing a spindle 360° Arbitrary indexingand positioning, with side-end face drilling, tapping, and milling functions, which can completethe processing ofmore complex parts in one clamping.
5.The tailstock is controlled by oil pressure, the mandrel automatically expands and contracts.the rigidity is good, the operation is convenient, and the long shaft parts can be processed.
MAIN FUNCTIONAL UNIT
CNC system: Taiwan Syntec
Spindle parts: Domestic or Taiwan Posa
Spindle servo motor/Driver: Beijing CTB or Taiwan Syntec
X/Z axis servo motor/Driver: Taiwan Syntec or Yaskawa,Japan
X/Z axis ball screw: Japan THK
X/Z axislinear guide:Japan THK
Powerunit: Taiwan precision gear-driven power unit
Power head servo turret: Taiwan Syntec or Yaskawa, Japan
Turret: Taiwan or domestic servo power turret
MAIN TECHNIOUE PARAMETERS
|
Description |
Unit |
HM52DE |
|
|
Swing over bed |
mm |
Φ500 |
|
|
Turning lenght |
mm |
320(Endmilling) |
|
|
Max rotary diameter on turret |
mm |
Φ280 |
|
|
Turning dia(disc-/axle) |
mm |
Φ500/Φ280 |
|
|
Spindle bore |
mm |
Φ62 |
|
|
Bar capacity |
mm |
Φ51 |
|
|
Spindle speed range |
r/min |
0-4000 |
|
|
Gear of spindle speeds |
level |
stepless |
|
|
Spindle nose |
flange |
A2-6 |
|
|
Spindle motor power |
kw |
11 |
|
|
Bed tana |
linear measure |
30 |
|
|
X-rapid speed |
m/min |
30 |
|
|
Z-rapid speed |
m/min |
30 |
|
|
Y-rapid speed |
m/min |
12 |
|
|
X-travel |
mm |
225(radius Radium) |
|
|
Z-travel |
mm |
450 |
|
|
X/Z axis servo turret machine power |
kw |
1.3 |
|
|
Tail socket diameter |
mm |
Φ80 |
|
|
Tailstock sleeve stroke |
mm |
80 |
|
|
Tailstock spindle taper |
mm |
5# |
|
|
Tailstock stroke |
mm |
460 |
|
|
Re-accuracy |
X-axis |
mm |
±0.0025 |
|
Zaxis |
mm |
±0.0025 |
|
|
Spindle(C-axis)re-positioning precision |
mm |
0.01 |
|
|
Standard tool type |
- |
Servo power turret |
|
|
Max loading tools |
Grasp pc |
12 |
|
|
Tools indexing time |
s |
0.3 |
|
|
Tool size |
o.D.tool size |
mm |
20X20 |
|
l.D.tool size |
mm |
Φ25 |
|
|
Power unit |
- |
ER25 |
|
|
Head motor power |
kw |
3.1+0.85 |
|
|
Head speed |
r/min |
3000 |
|
|
Head clamping dia |
mm |
Φ16 |
|
|
Max tap dia |
mm |
M10 |
|
|
Machine power |
kw |
18.5 |
|
|
Machine G.W |
kg |
4500 |
|
|
Machine layout(LxXxH) |
mm |
2580X1950X1950 |
|
More detals: Download Datesheet
