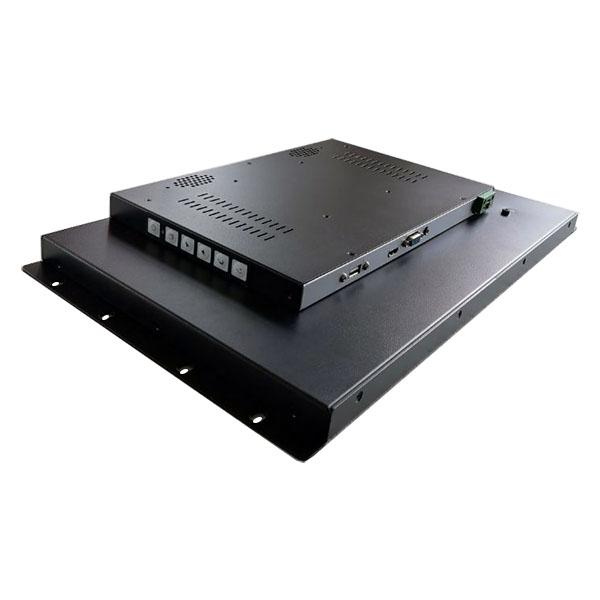

RCIM-173W is a Rack mount display with FHD 1920 x 1080, 6u height, 17.3" LCD monitor,  HDMI/DVI & VGA interface, touch screen are optional, with speaker for audio output

Features

• 17.3" wide screen rackmount LCD Monitor Display, 6u Height
• 1920 x 1080 Ultra high resolution
• DVI,HDMI & VGA Port
• Support FHD with 1080p resolution.
• 300 cd/m2 brightness
• Build in 2x 2 watts speakers
• OSD control keys to optimize the display
• DC 12V inut or 9 ~ 36 V DC power input
• 2 x stereo speakers for industrial automation system voice output

Specifications

LCD Panel

Display Type 17.3" Wide Screen LCD
Resolution 1920 x 1080
Max.color 262K
Luminance 300 cd/m2
View Angle 140°(H) , 120°(V)
Contrast Ratio 600:1
Response Time 8 ms
Backlight Life 50,000hrs

System

Touch screen(optional) Resistive touch screen(RS232/USB)
Input Signals VGA, HDMI/DVI, Audio
Power Supply 100~240V AC,50/60Hz, DC 12V external ac adapter
DC Power (Optional) DC 9~ 36v input power module


Mechanical and Environmental

Construction Heavy duty steel alloy chassis
Operate temperature 0 °C to 50 °C
Storage temperature -20 °C to 60 °C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Dimensions (WxHxD) 402x 252 x 45 mm
Weight Net: 7.0kg , Gross:8.5 kg
