Features

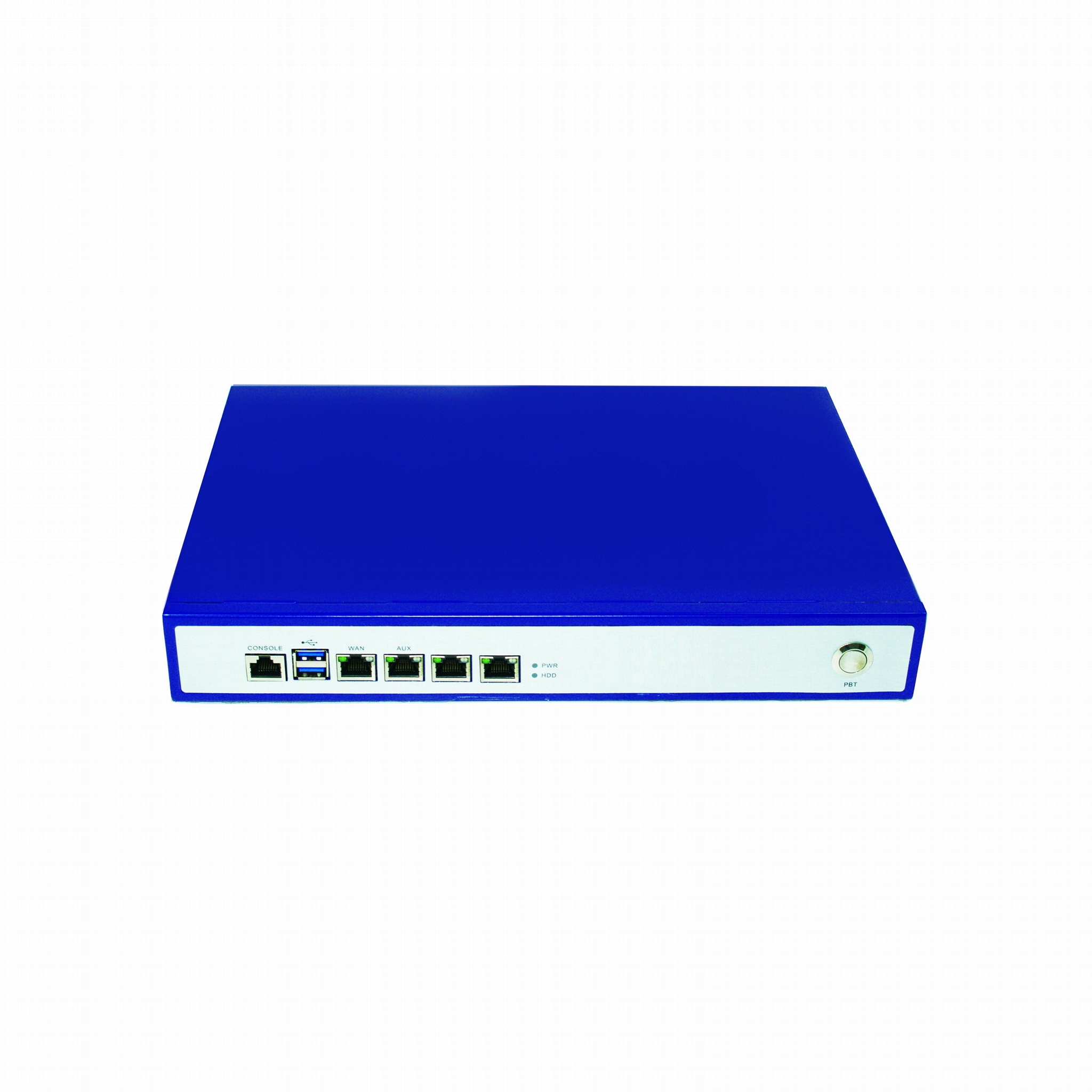

x86 desktop network appliance, small chassis size 300x210x44.5mm

Onboard Intel Bay Trial J1900 Quad-core Processor, 2.0GHz, L2 Cache

One 204-pin DDR3-L DIMM slots, up to 8 GB

Four Intel PCIe GbE controllers, Optional one channel bypass

One SATAinterface and one mSATA interface

Two USB3.0 interfaces

One RJ45 for RS232 communication

Optional one expansion wifi or 3G/4G module

Specifications

Motherboard

CPU Onboard Intel Bay Trial J1900 Quad-core CPU

System memory One 204-pin DDR3-L DIMM slots, up to 8GB

Storage

Interface One SATA and one mSATA connectors

Hard Drive One2.5" HDD tray

Ethernet

LAN Port Four 10/100/1000Mbps RJ-45 ports

Ethernet Controller Four Intel PCIe GbE controllers

BYPASS Optional one channels BYPASS

Wireless module Optional one expansion wifi or 3G/4G module(built-in a SIM slot)

Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB3.0

COM One RJ-45 COM

Reset Button One built-in reset button

Indicator One Power LED, one HDD LED

Video Built-in one VGA interface, support hot plug(Internal)

Power supply

Power consumption Built-in 60W power supply

Power input 100 ~ 240V AC input

Environmental

Mounting Supports rack-mounting or desktop-mounting

Operate Temperature -10°C ~ 50°C

Storage Temperature -20°C ~ 75°C

Operate Humidity 5% ~ 85% non-condensing @ 40°C

Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Blue or OEM

Front panel Silver PVC (OEM/Neutral)

Construction Desktop chassis, Heavy duty metal

Dimensions (D x W x H) 300x210x44.5mm

Weight 5.8 kg

Ordering informations

F19401 Destop network appliance, J1900 CPU, 4 x GbE RJ45, 60W PSU

Optional NIC modules

83S5 4-ports 100M NIC module lan card supports mirror/switch mode
