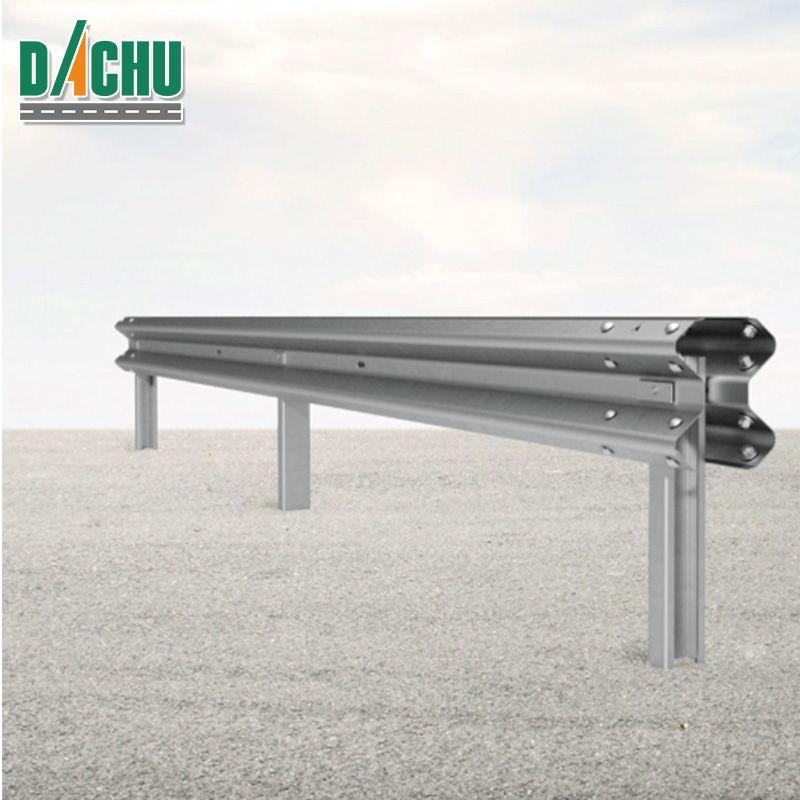

EN1317 W Beam Traffic Crash Barrier for Road Safety
Product Description
Our W-beam guardrail product is formed in accordance with the latest highway safety barrier technology for making sure its high durability and maximum strength.
It is made of high quality steel, which reduces the impact force caused by mobile equipment to the maximum extent.
Meanwhile, the zinc coating or PVC coating perfectly combined to the W-beam guardrail keeps the products free of damages of corrosion and rust.
Parameters
|
Guardrail Standard |
EN1317 |
|
Totally Length |
4300MM |
|
Effective Length |
4000MM |
|
Base Steel thickness |
2.5MM / 3.0MM;Can be customized |
|
Material |
S355JR Steel |
|
Yield Point |
Minimum 345Mpa (50000psi); |
|
Tensile Strength |
Minimum 483Mpa (70000psi); |
|
Surface Treatment |
Hot Dip Galvanized |
|
Zinc Coating |
Average 55μm or 395g/m2;Can be customized |
|
Coat Standard |
ISO 1461 |
|
Free Sample |
Available |
|
Curved W Beam |
Can be customized |
Wide selection of W Beam guardrail with different metal materials and curve design are available to be widely applied safety barrier system offering safety protection on the sides of the way. Feel free to click here
