| Model: | G2 |
|---|---|
| Brand: | South |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Other Electronic Instrument |
| Label: | South GNSS receiver , Leica total station , Trimble R10 GPS |
| Price: |
US $3800
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:06 Jan, 2023 |

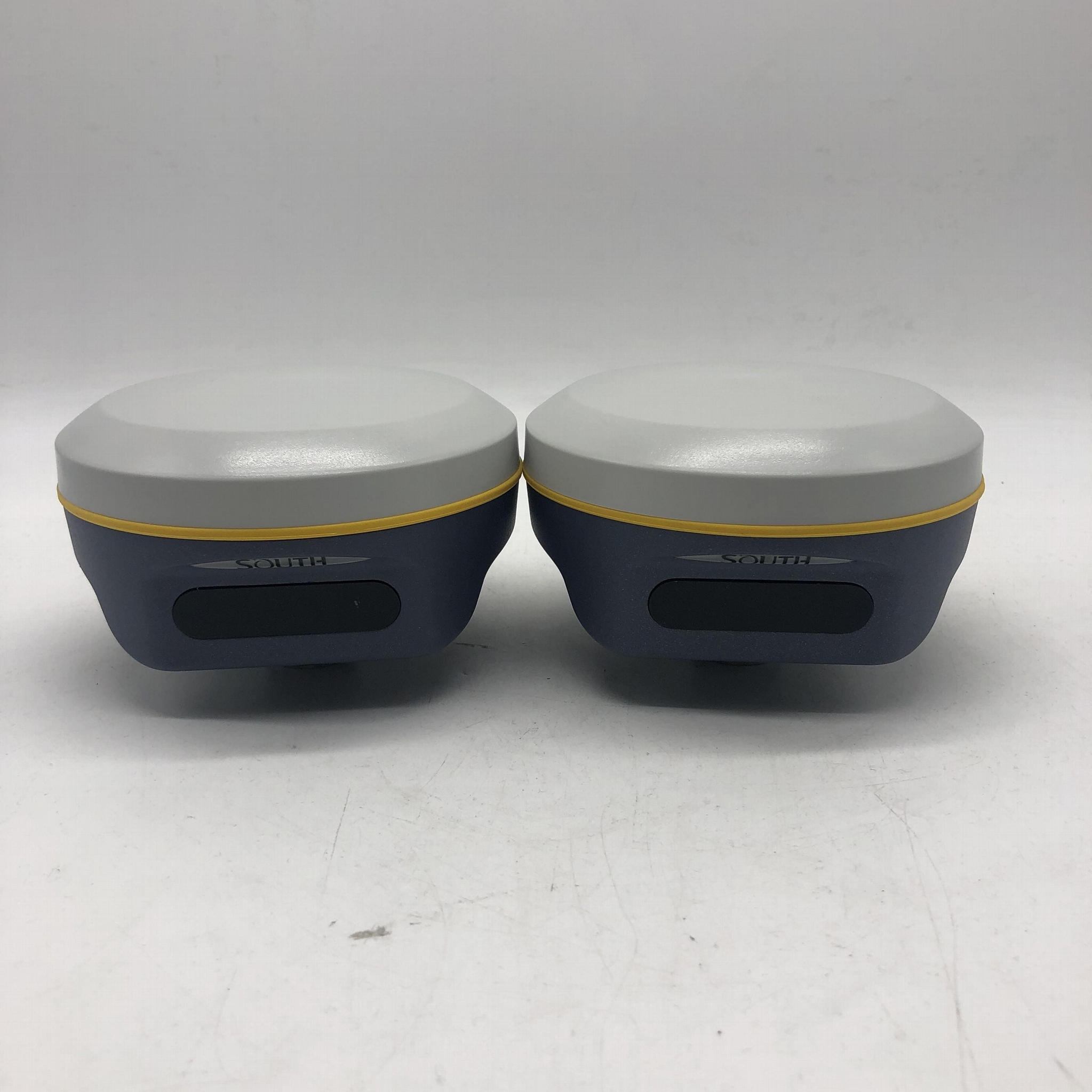

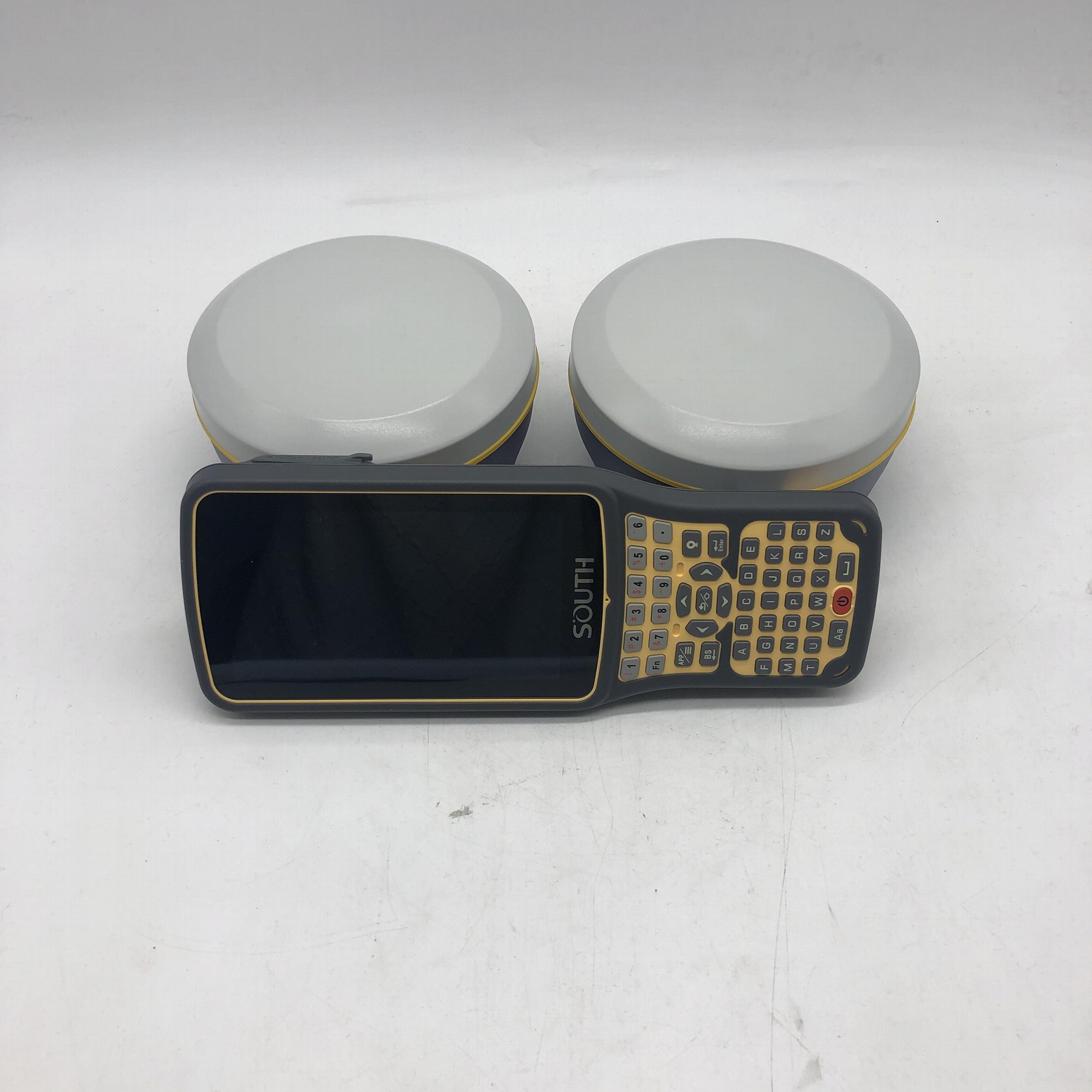

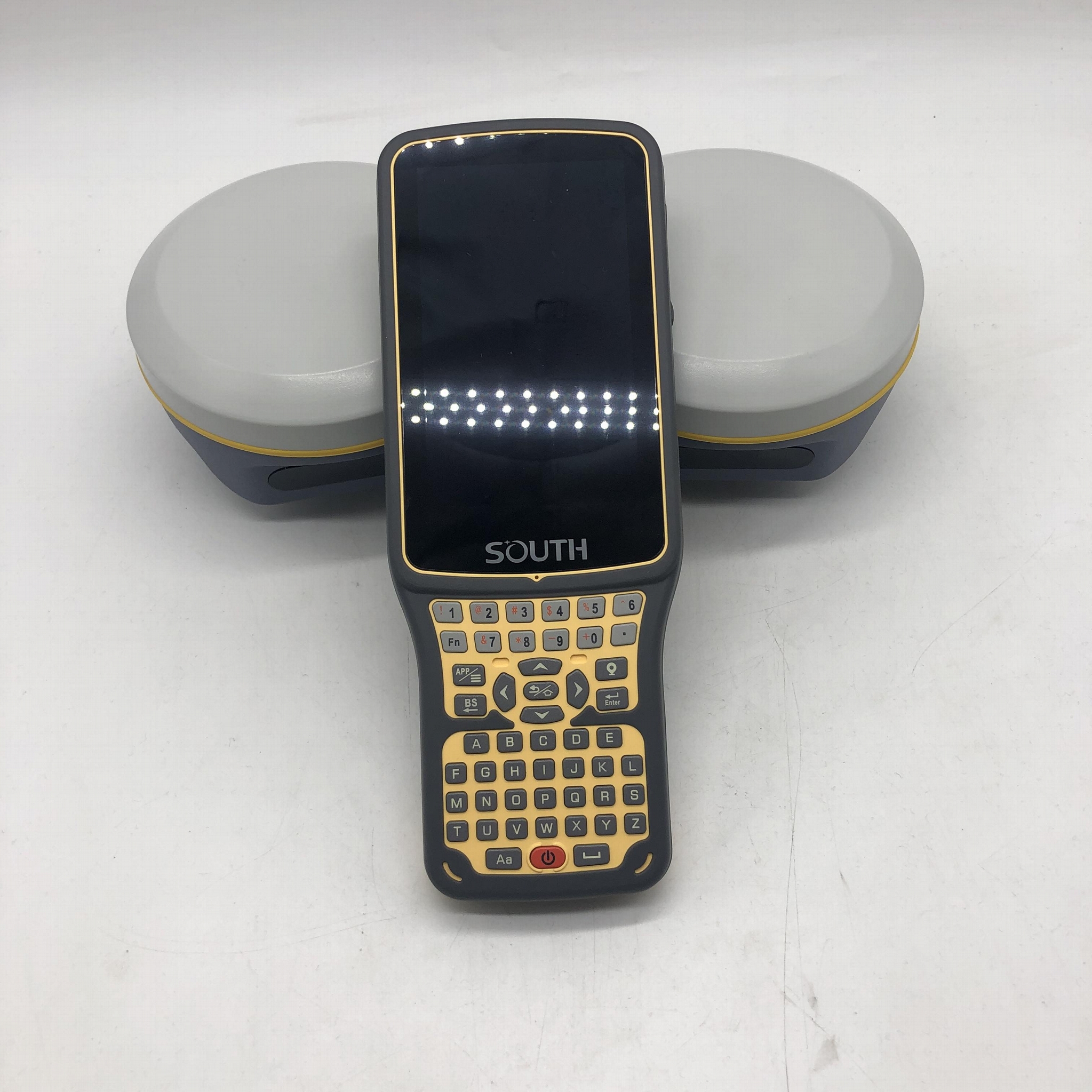

Handheld design South GPS 965 channels south Galaxy G2 GNSS RTK Receiver Price.
Technical parameter
| NSS Features | Channels | 965 |
| GPS | L1, L1C, L2C, L2P, L5 | |
| GLONASS | L1C/A, L1P, L2C/A, L2P, L3 | |
| BDS | BDS-2: B1I, B2I, B3I
BDS-3: B1I, B3I, B1C, B2a, B2b* |
|
| GALILEOS | E1, E5A, E5B, E6C, AltBOC* | |
| SBAS (WASS, MSAS, EGNOS and GAGAN) | L1C/A | |
| IRNSS | L5* | |
| QZSS | L1, L2C, L5* | |
| MSS L-Band (Reserve) | ||
| Positioning output rate | 1Hz~20Hz | |
| Initialization time | < 10s | |
| Initialization reliability | > 99.99% | |
| Positioning Precision | Code differential GNSS positioning | Horizontal: 0.25 m + 1 ppm RMS
Vertical: 0.50 m + 1 ppm RMS |
| GNSS static | Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS |
|
| Real-time kinematic
(Baseline<30km) |
Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS |
|
| Network RTK | Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS |
|
| SBAS positioning | Typically < 5m 3DRMS | |
| RTK initialization time | 2 ~ 8s | |
| IMU tilt angle | 0° ~ 60° | |
| Hardware Performance | Dimension | 130.5mm(φ) × 84mm(H) |
| Weight | 850g (battery included) | |
| Material | Magnesium aluminum alloy shell | |
| Operating temperature | -25℃ ~ +65℃ | |
| Storage temperature | -35℃ ~ +80℃ | |
| Humidity | 100% Non-condensing | |
| Waterproof/Dustproof | IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dust | |
| Shock/Vibration | Withstand 2 meters pole drop onto the cement ground naturally | |
| Power supply | 6-28V DC, overvoltage protection | |
| Battery | Inbuilt 6800mAh rechargeable, removable Lithium-ion battery | |
| Battery life | Single battery: 16h (static mode), 8h (Base + UHF), 12h (Rover + UHF), 15h (Rover + ) | |
| Communications | I/O Port | 5PIN LEMO external power port + Rs232
Type-C interface (charge + OTG + Ethernet) 1 UHF antenna interface SIM card slot (Micro SIM) |
| Internal UHF | 1W radio receiver and transmitter | |
| Frequency range | 410 - 470MHz | |
| Communication protocol | Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel | |
| Communication range | Typically 8km with Farlink protocol | |
| Cellular mobile network | 4G cellular module standard, customizable 5G module | |
| 3.0/4.1 standard, 2.1 + EDR | ||
| NFC Communication | Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else) | |
| WIFI | Modem | 802.11 b/g standard |
| WIFI hotspot | Receiver broadcasts its hotspot form web UI accessing with any mobile terminals | |
| WIFI datalink | Receiver can transmit and receive correction data stream via WiFi datalink | |
| Data Storage/Transmission | Storage | 8GB SSD internal storage standard, extendable up to 64GB
Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough) Support external USB storage The customizable sample interval is up to 20Hz |
| Data transmission | Plug and play mode of USB data transmission
Supports FTP/HTTP data download |
|
| Data format | Static data format: STH, Rinex2.01, Rinex3.02 and etc.
Differential data format: RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 Output format: ASIC (NMEA-0813), Binary code (SOUTH Binary) Network model support: VRS, FKP, MAC, fully support NTRIP protocol |
|
| Sensors | Electronic bubble | Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time |
| IMU | Built-in IMU module, calibration-free and immue to magnetic interference | |
| Thermometer | Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature | |
| User Interaction | Operating system | Linux |
| Buttons | Single button | |
| Indicators | 5 LED indicators | |
| Web interaction | With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely | |
| Voice guidance | It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish | |
| Secondary development | Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition | |
| Cloud service | The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.
|
