Sokkia IM105 Waterproof Manual Total Station Dual Axis 171mm

Model:IM105
Brand:Sokkia
Origin:Made In Japan
Category:Electronics & Electricity / Electronic Instrument / Other Electronic Instrument
Label:Sokkia total station , Leica total station , Topcon total station
Price: US $5500 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shanghai Galaxy International Trade Co., Ltd.

Biz MemberShang Hai - China
Live Chat:
点击这里给我发消息Last Online:06 Jan, 2023

Product Description

Sokkia new model IM105 total station iM-100 Series Sokkia total station:

Key Features:

  • 1,000 m non-prism range
  • 6,000 m prism range
  • “Best-in-class” 1″angle accuracy
  • Up to 32 GB storage
  • Waterproof/dust-proof IP66
  • Environmentally protected
  • Compatible with industry standard thumb drives
  • 21 hour battery life in normal mode

Description

This powerful, cost efficient Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It features an ultra-powerful EDM, best-in-class angle accuracy encoder system to provide the accuracy, speed, and endurance needed on the most demanding job sites. Plus, with a r ed housing and extented battery-life you’ll be able to handle even the toughest conditions.

The GM-105 Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It’s r ed waterproof/dustproof magnesium-alloy housing encases an ultra-powerful 6,000m prism range 1.5mm accuracy EDM, Best-in-class 1″ angle accuracy angle encoder system, and 28 hour battery-life power supply. The GM-100 also features dual axis compensation, 32 GB USB, Bluetooth to 10m and TSshield™ telematics for ultimate security and investment protection.

Designed to deliver the latest technological advantages in a sleek design, each GM-100 total station is equipped with a best-in-class EDM. The total station measures up to 5,000 meters to standard prisms (6,000 meters under good conditions) and up to 800 meters in reflectorless mode. Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to an internal memory of 50,000 points, the total station also features a USB 2.0 slot for up to 32GB of storage. TSshield™ technology provides ultimate security and maintenance capabilities for your total station thanks to a telematics-based multi-function communications module. If an activated total station is lost or stolen, just send a coded signal to the instrument and disable it – anywhere in the world. You can also access cloud-based Topcon servers for available software updates and firmware enhancements. Waterproof/dustproof IP66 designSokkia IM105 Waterproof Manual Total Station Dual Axis 171mm 0

Sokkia IM105 Waterproof Manual Total Station Dual Axis 171mm 1

Sokkia IM105 Waterproof Manual Total Station Dual Axis 171mm 2

Sokkia IM105 Waterproof Manual Total Station Dual Axis 171mm 3

Sokkia IM105 Waterproof Manual Total Station Dual Axis 171mm 4

MODEL

IM-105

Telescope

Magnification / Resolving power

30x/ 2.5"

Length

171 mm (6.7 in.)

Objective aperture

45 mm (1.8 in.)
(48 mm (1.9 in.) for EDM)

lmage

Erect

Field of view

1°30'(26 m/1,000 m)

Minimum focus

1.3 m (4.3 ft.)

Reticle illumination

5 brightness levels

Angle Measurement

Display Resolution

1"/5"

Accuracy (ISO 17123-3:2001)

5”

IACS (ndependent Angle Calibration System)

Provided

Dual-axis compensator /
Collimation compensation

Dual-axis liquid tilt sensor,
working range:±6'(±111 mgon)/
Collimation compensation available

Distance Measurement

Laser output

Reflectorless mode: Class 3R/
Prism /sheet mode: Class 1

Measuring range
(under average conditions

Reflectorless
Reflective sheet

0.3 to 800m (1.0 to 2,624ft.)
RS90N-K: 1.3 to 500 m (4.3 to 1,640 ft.)
RS5ON-K:1.3 to 300 m(4.3 to 980 ft.)
RS10N-K:1.3 to 100 m(4.3 to 320 ft.)



Mini prisms
One AP prism

CP01:1.3 to 2,500m(8,200ft.),
OR1PA:1.3 to 500m(1,640ft.)
1.3 to 5,000 m (4.3 to 16,400 ft.)/
Under goodconditions:6,000 m(19,685 ft.)

Display Resolution

Fine/Rapid: 0.001 m/0.01 ft./ 1/8 in.
Tracking: 0.01 m/0.1 ft./1/2 in.

Accuracy(So 17123-4:2001)
(D=measuring distance in mm)

Reflectorless
Reflective sheet APICP prism

(2+2 ppm x D) mm7
(2+2 ppm x D)mm
(1.5+ 2 ppm x D)1.5mm

Measuring time

Fine: 0.9 s(Initial 1.5 s),
Rapid:0.6 s(Initial 1.3 s),
Tracking:0.4 s (initial 1.3 s)

lnterface and Data management

Display / Keyboard

Graphic LCD,192 x80 dots,backlight,
contrast adjustment /Alphanumeric keyboard: 28 keys with backlight

Control panel location

on both faces (second display is optional)

Trigger key

On right instrument support

Data storage

lnternal memory
Plug-in memory device

Approx.50,000 points
USB flash memory (max.32GB)

lnterface

Serial RS-232C,USB2.0
(TypeA, for USB flash memory)

General

Laser-pointer

Coaxial red laser using EMD beam

Guide light

Green LED (524 nm) and
Red LED(626 nm),
Operating range:1.3 to 150 m
(4.3 to 490 ft.)

Levels

Graphic Circular level(on tribrach)

6 (Inner Circle)
10'/ 2 mm



Plate Level

Regional Dependent

Optical plummet
(optional for NA,LA and EU)

Magnification: 3x,
Minimum focus: 0.3m (11.8 in.) from tribrach bottom

Laser plummet
(optional for Oceana and Russia)

Red laser diode (635 nm± 10 nm),
Beam accuracy: ≤1.0 mm at 1.3 m,Class 2 laser product

Dust/Water Rating

lP66(IEC 60529:2001)

Operating Temperature

-20 to +60°C

Size with handle
(W x H x D)

Control panel on both faces: 183×181×348 mm
Control panel single:
face:183×174x348mm

Weight with battery and tribrach

Approx.5.3 kg


Product Image

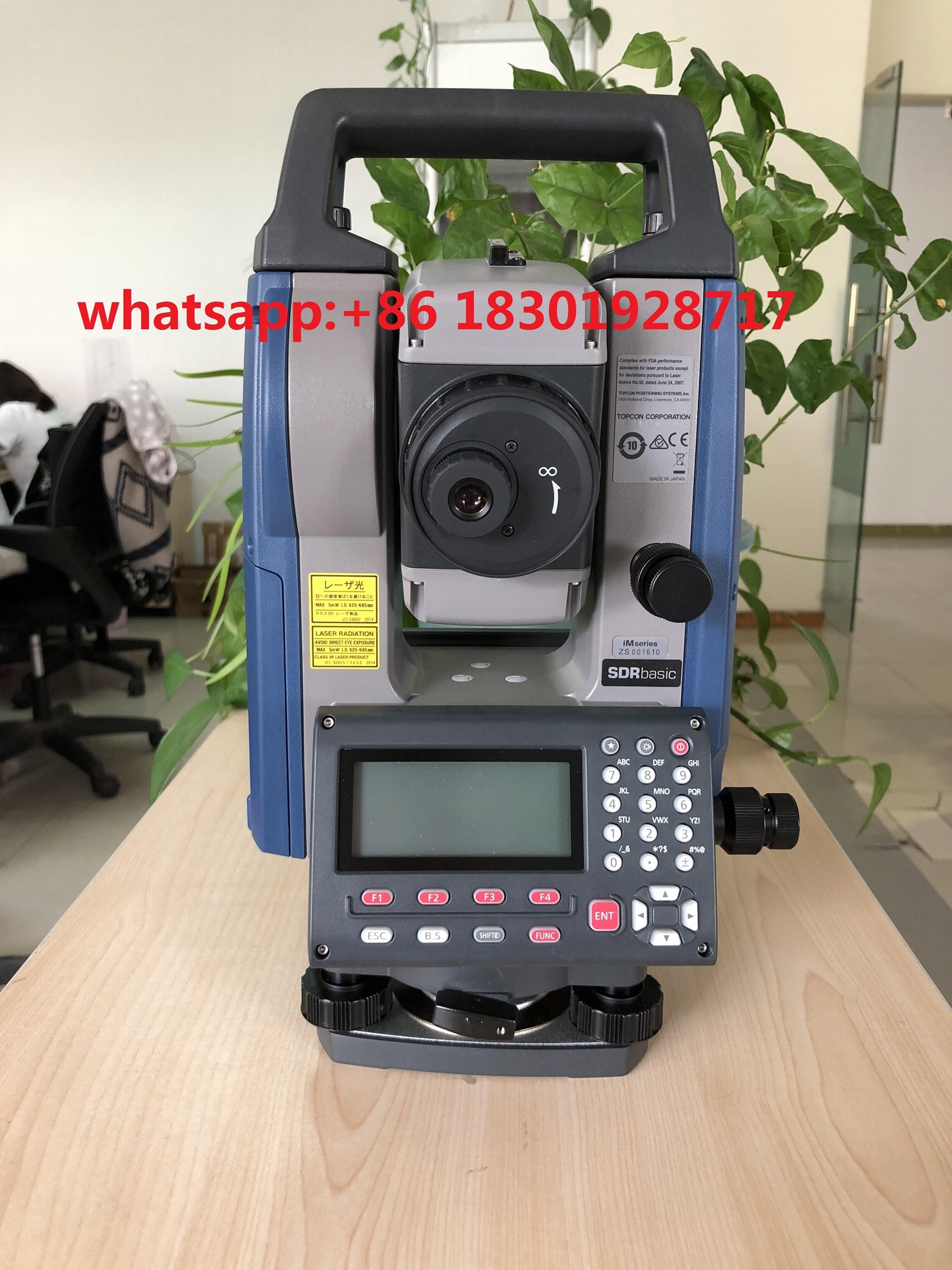

Sokkia IM105 Waterproof Manual Total Station Dual Axis 171mm 1
Img 1

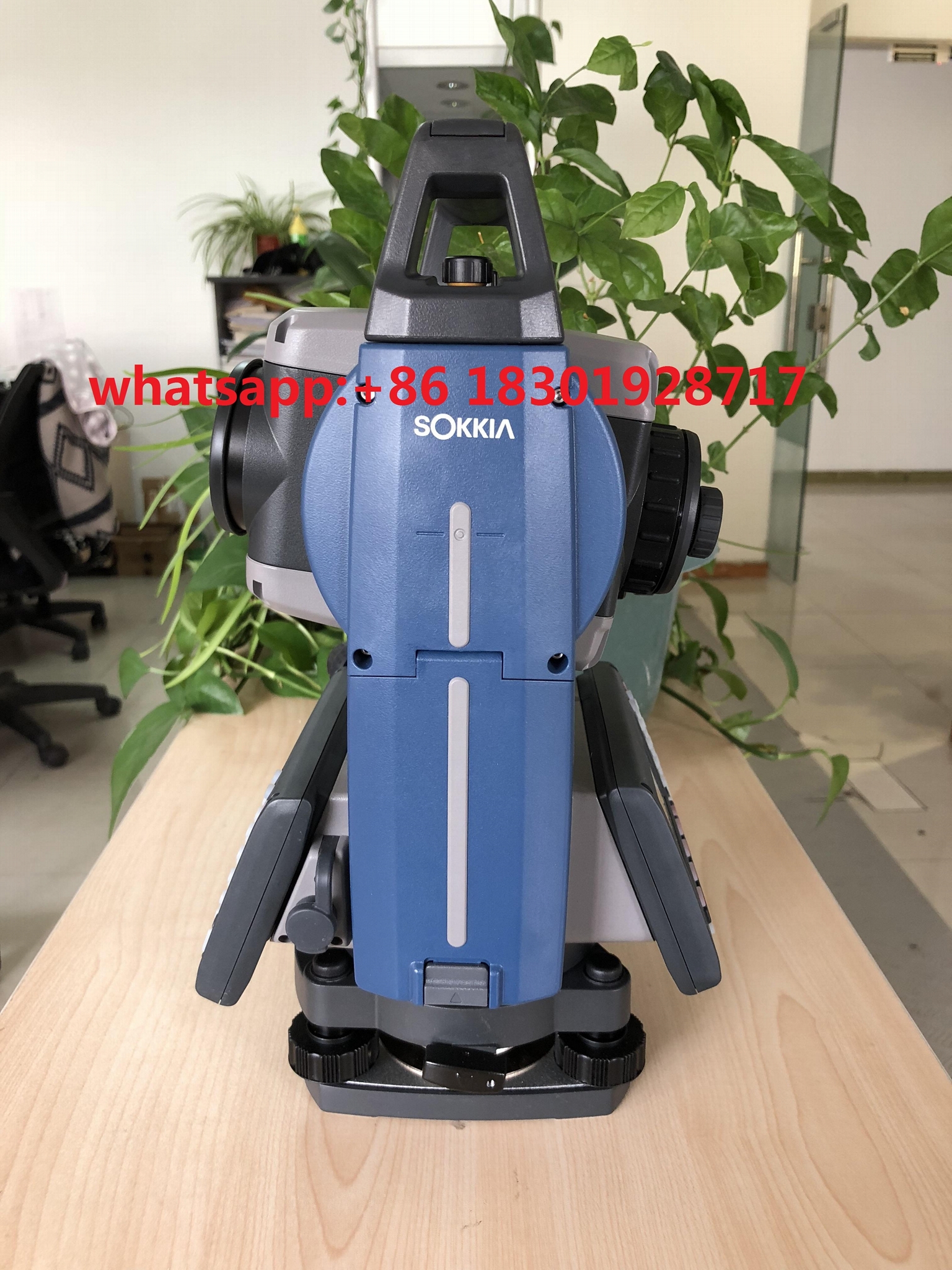

Sokkia IM105 Waterproof Manual Total Station Dual Axis 171mm 2
