| Model: | - |
|---|---|
| Brand: | Spark |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Other Electronic Components |
| Label: | - |
| Price: |
US $20
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:16 Aug, 2022 |

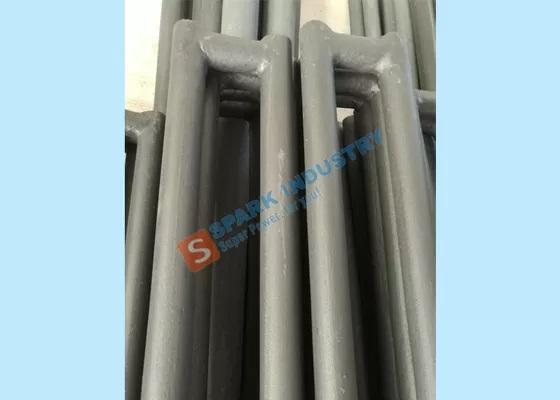

SiC U-Shaped Heating Element For High Temperature Experimental Electric Furnace
Multi Shape SiC Heater Specification
| Name: | Polymorphic silicon carbide heater for electric heating equipment | ||||||
| Shape: | ED, SC, SCR, Dumbbell, U, W and other special shape | ||||||
| Usage temperature: | Up to 1400C | ||||||
| Production process: | Made into blank, silicided under high temperature and re-crystallized. | ||||||
| Available diameter: | 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 25mm, 30mm, 31.8mm, 35mm, 38.1mm, 40mm, 44.5mm, 50mm, 54mm | ||||||
| Spec | Out
diameter |
Length of hot
zone(HZ)(mm) |
Length of cold
zone(CZ)(mm) |
Overall
length(OL)(mm) |
Range of
resistance (ohms) |
||
| 12 | 100-400 | 100-350 | 300-1100 | 1.50-3.68 | |||
| 14 | 100-500 | 150-350 | 400-1200 | 0.66-2.92 | |||
| 16 | 200-600 | 200-350 | 600-1300 | 1.20-3.00 | |||
| 20 | 200-900 | 200-600 | 600-2100 | 0.84-3.10 | |||
| 25 | 200-1200 | 200-700 | 600-2600 | 0.50-2.88 | |||
| 30 | 300-2000 | 200-800 | 700-3600 | 0.50-3.35 | |||
| 31.8 | 300-2000 | 200-800 | 700-3600 | 0.42-3.05 | |||
| 38.1 | 300-2500 | 200-800 | 700-4100 | 0.30-2.46 | |||
| 40 | 500-2700 | 200-800 | 900-4300 | 0.60-3.12 | |||
| 45 | 500-3000 | 200-750 | 900-4500 | 0.36-2.08 | |||
| 50 | 500-2500 | 300-750 | 1100-4000 | 0.36-1.83 | |||
| 54 | 500-2500 | 300-750 | 1100-4000 | 0.30-1.48 | |||
| We can produce according to you need specifications. | |||||||
| Attention | 1) In order to keep furnace temperature and the charges uniform of each element, before installation resistance distribution must be carried.
2) As the element is very brittle, be careful while install and maintain to avoid any damage. 3) When start to operate the furnace, raise voltage slowly and gradually, never give full load at one time. |
||||||
| Character | High-applied temperature, anti-oxidization, anti-corrosion, long service life, little deformation, easy installation and maintenance. | ||||||
| Application | Used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery. | ||||||
Multi Shape SiC Heater Applications
Thermoforming & Vacuum Forming Machines
PVC Pipe Belling / Socketing Machines
Hot Stamping Machines
Heat Therapy Equipment
Shrink Packaging
Multi Shape SiC Heater Construction and material
Insulator: High thermal silicone carbide
Widely application :
It is extensively used in the fields of metallurgy ,ceramics, glass ,machinery,analysis test semiconductor science and research
When you place an order of theED type heater silicon carbide SiC heating elements , please give following information:
OD: Outer Diameter;
HZ: Length Of Hot Zone;
CZ: Length Of Cold Zone;
OL: Overall Length,
