| Model: | Spring Steel |
|---|---|
| Brand: | Songhshun |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Bars, Rods, Angles, and Stainless Steel Shapes |
| Label: | ASTM9260 Spring , Spring Steel |
| Price: |
US $600
/ Ton
|
| Min. Order: | 4 Ton |
| Live Chat: | Last Online:06 Jul, 2022 |
1.Grade:Spring Steel 2.Dimensions:6~20mm
3.Standard:AISI, ASTM, BS, DIN, GB, JIS 4.Place of Origin:Guangdong, China
5.Brand Name:songshun steel 6.Model Number:9260/1.7018/SUP7/60Si2MnA
7.Type:Spring Steel Bar 8.Application:Chains for car

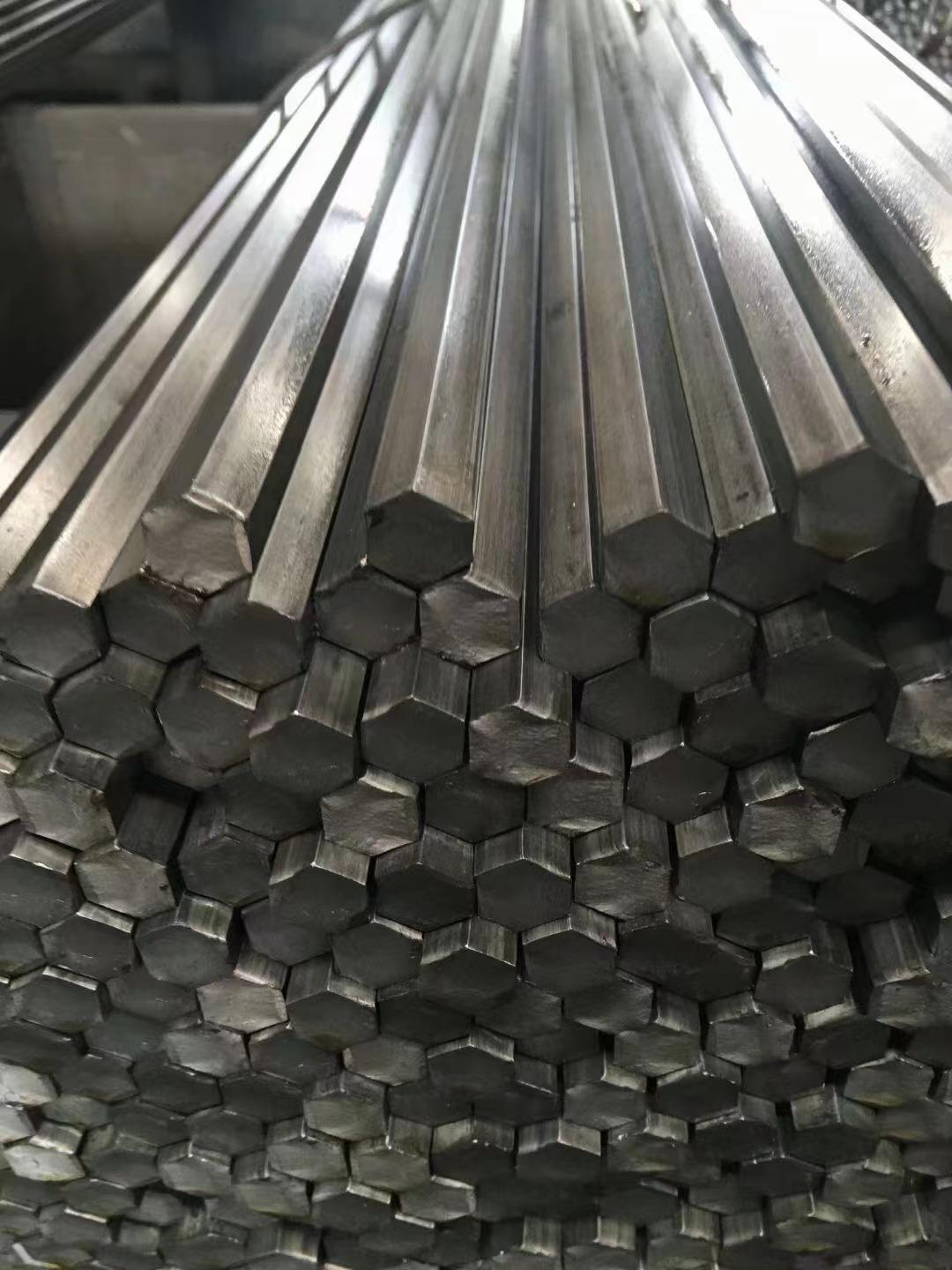

9.Name:ASTM9260 Spring Steel |Forged ASTM9260 Spring Steel Alloy Bar
10.Shape:Round bars/ Flat bar/Plate
11.Technology:Hot Rolled/ Forged/ Clod Drawn
12.Heat treatment:Annealing/ Q+T
13.Surface treatment:Black/ Peeling/ Polishing/Machined
14.Delivery condition:Hot rolled or forged/ Peeled or black surface/annealed or QT
15.Test:SGS/UT100%/Elements testing
16.Certificate:ISO/ Mill certificate
17.Service:Sample free and 24 hours online
18.Experience:Ten years manufacturer experience
ASTM9260 is a widely used silicon-manganese spring steel with slightly higher strength, elasticity and hardenability than 55Si2Mn.
Features and scope of application:
ASTM9260 is suitable for the production of flat springs or coil springs with a wire diameter below 30mm in the railway vehicle, automobile and tractor industries, and also suitable for the production of heat-resistant springs in non-corrosive media with a working temperature below 250 ℃ Large, important coil springs under load and operating under high stress.
Chemical composition:
Carbon C: 0.56～0.64 Silicon Si: 1.80～2.20
Manganese Mn: 0.75～1.00
Sulfur S: ≤0.040
Phosphorus P: ≤0.035
Chromium Cr: ≤0.35
Nickel Ni: ≤0.35
Copper Cu: ≤0.25
