| Model: | WS2600 |
|---|---|
| Brand: | GRAIGAR |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | Spectrophotometer , d/8 Colorimeter , WS2600 |
| Price: |
US $2888
/ pc
|
| Min. Order: | 1 pc |
| Last Online:09 Aug, 2024 |
WS2600 Precise Spectrophotometer d/8 Colorimeter Color Meter
|
Model |
WS2600 |
|
Geometric Conditions |
d/8 |
|
Color Space |
L*a*b, L*c*h, L*u*v, XYZ, Yxy, Reflectivity, CMYK, YI Yellowness, Ganz, R457 Whiteness, Taubu Whiteness, z Whiteness, sRGB |
|
Standard Light Source |
A, C,D50, D65, D75,F1,F2,(CWF),F3,F4,F5,F6,F7,F8,F9,F10,F11(TL84),F12(U30) |
|
Color Diff Formula |
△E*ab, △E*Ch,△E*uv,△ E*Hunter,△E*cmc(2:1),△E*cmc(1:1),△E*94,△E*00,△E*sRGB,△E*BFD,△E*FMCII |
|
Light Source |
Combination LED |
|
Sensor Array |
Line array[email removed by eBay]pixels |
|
Spectral Way |
Diffraction grating |
|
Measuring Caliber |
4mm&8mm |
|
Observer |
CIE10°(1964), CIE2°(1931) |
|
Wavelength Coverage |
400-700nm |
|
Wavelength Interval |
10nm |
|
Measuring Interval |
2.5 seconds |
|
Reflectance Range |
0%-200% |
|
Repeated Accuracy |
Delta E<0.07(take the devitation average after 30 times measuring the white board) |
|
Table Difference |
Delta E<0.4(measure the Ral 12-color card) |
|
Light source spam |
More than 50,000 hrs |
|
Total storage |
16000 |
|
Battery power |
More than 10,000 times |
|
Display Screen |
TFT true color 2.8[email removed by eBay] |
|
Size |
199*68*90mm |
|
Package Size |
390*340*200mm |
|
Weight |
N.W=3.2kgs G.W=5.5kgs |
|
Humidity Temperature |
-10 degree to 40 degree |
|
Storage Temperature |
-20 degree to 50 degree |
|
Working Humidity |
Relative humidity less than 85%，without condensation |
|
Standard Accessories |

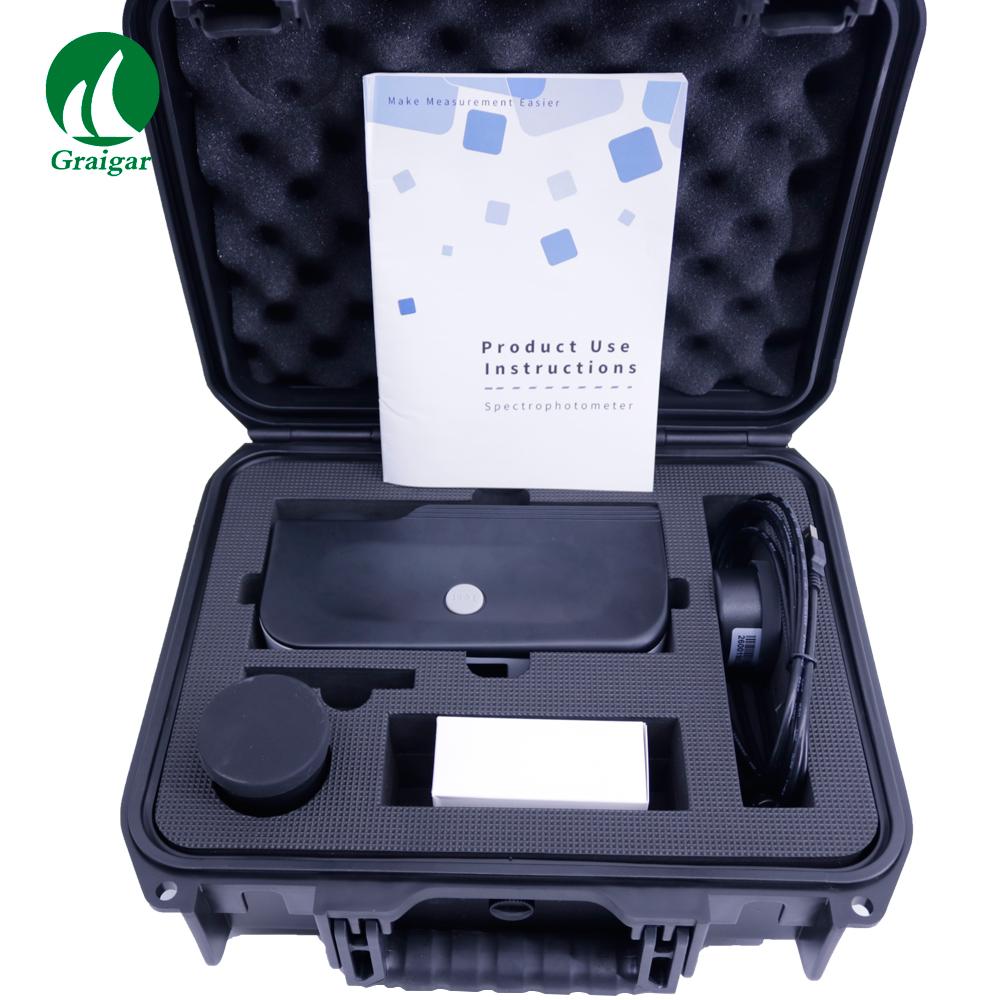

Power Adapter,standard white board,standard black cavity,lithium battery,User manual |
|
Optional Accessories |
Software,Micro printer,Locating block |
