| Model: | SC-10 |
|---|---|
| Brand: | Graigar |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Analysis Instrument |
| Label: | SC-10 , Colorimeter , Color meter |
| Price: |
US $269
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |

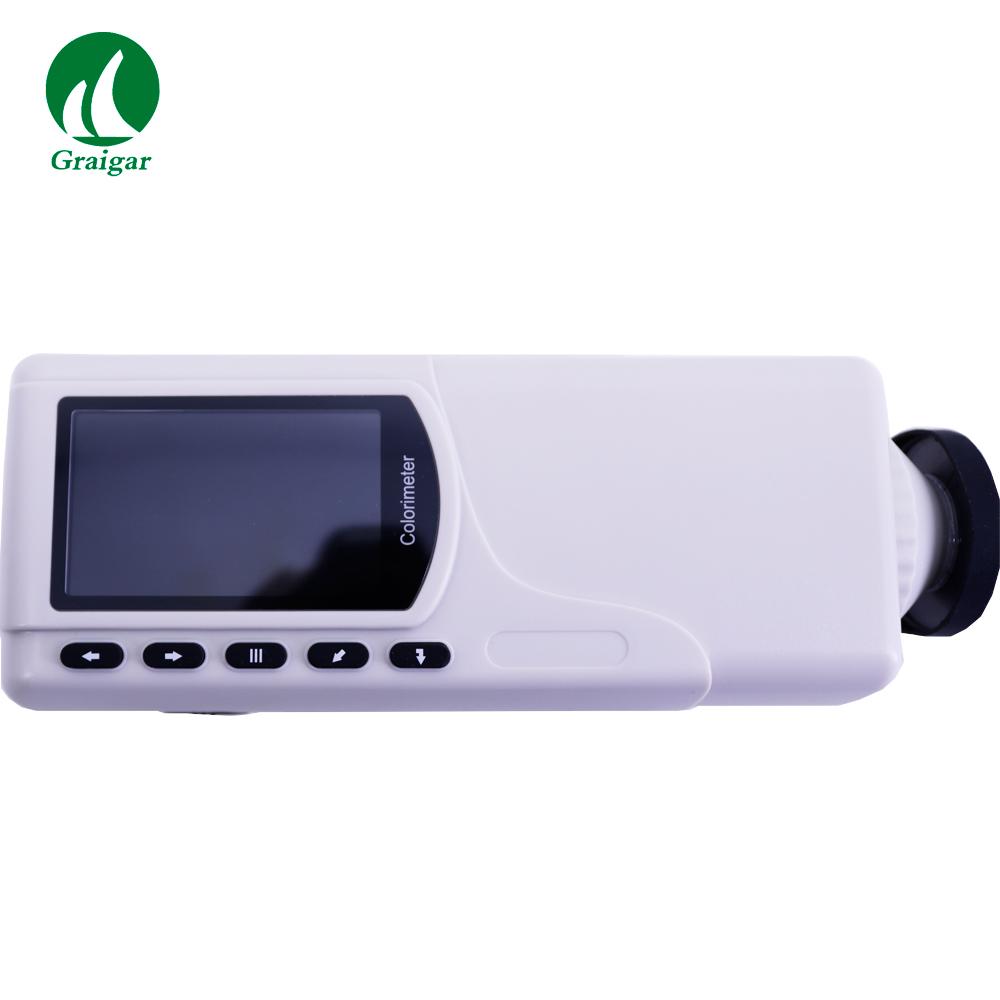

SC-10 Portable Colorimeter Difference Meter 4mm Measuring Diameter
Built-in black and white board parameters, without the need for black and white correction simplifies operation willing to step.
Higher short-term repeatability: E≤0.03
Without even the computer power that is used, make measurements easier
Double Location: The light positioning patented technology and cross positioning, to quickly align the measured region
Portable structure4mmMeasuring diameter for more measurement occasions
When the measured data is automatically saved, and quick.
|
Measurement geometry |
8 / d |
|
Selectable measurement aperture |
4mm |
|
Positioning |
Light positioning and cross positioning |
|
Measuring the end face |
Large stable end face |
|
Detectors |
Silicon photodiode array |
|
Color space |
CIEL * a * b |
|
Color difference formula |
ΔE * ab |
|
Optional light |
D65 |
|
Light source device |
LED blue light excitation |
|
Short-term repeatability |
0.03ΔE * ab measure 30 times the average of the white standard plate |
|
The difference between the instrument station |
≤0.20ΔE * ab |
|
Store |
100 10000 standard samples |
|
Weight |
500g |
|
Size |
205 × 67 × 80mm |
|
Power supply |
Rechargeable lithium-ion battery 3.7V32000mAh |
|
Lamp Life |
5 years more than 1.6 million measurements |
|
Battery power |
After the full measure 5000 |
|
Display |
TFT color 2.8inch (16: 9) |
|
Operating Temperature Range |
-10 ~ 40 , (32 -104 ) |
|
Storage temperature range |
-20 -50 (-4 -122 ) |
|
Temperature Range |
Relative humidity less than 85% non-condensing |
|
Data interface |
RS-232 |
|
Standard accessories |
Lithium battery power adapter plug ten safety instructions wristband protection shelf platform (4mm diameter measurement) |
|
Printer (optional) |
Miniature thermal printer |
