| Model: | TF |
|---|---|
| Brand: | TongFeng |
| Origin: | Made In China |
| Category: | Construction & Decoration / Pipe, Tube & Parts / Pipe Fittings |
| Label: | Fiber Protection , flexibl conduit , squarelock conduit |
| Price: |
US $1
/ m
|
| Min. Order: | 300 m |
| Live Chat: |  | Last Online:23 Oct, 2023 |

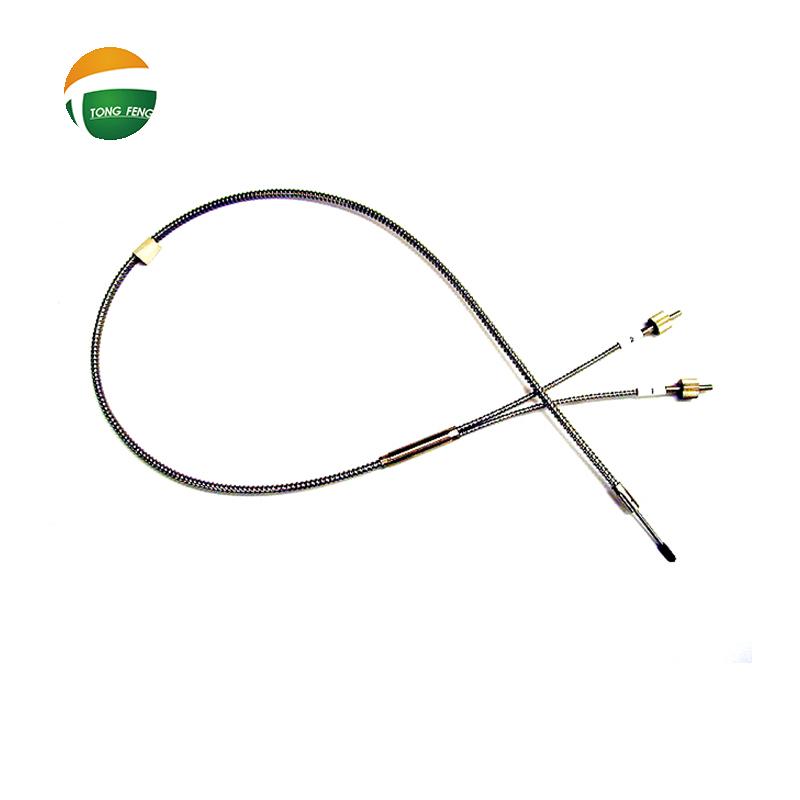

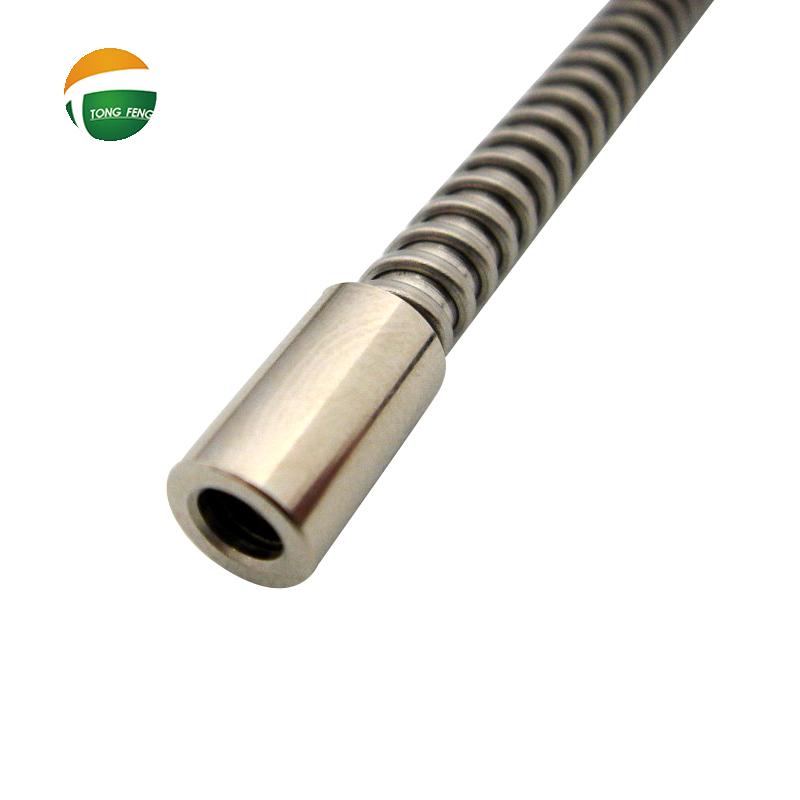

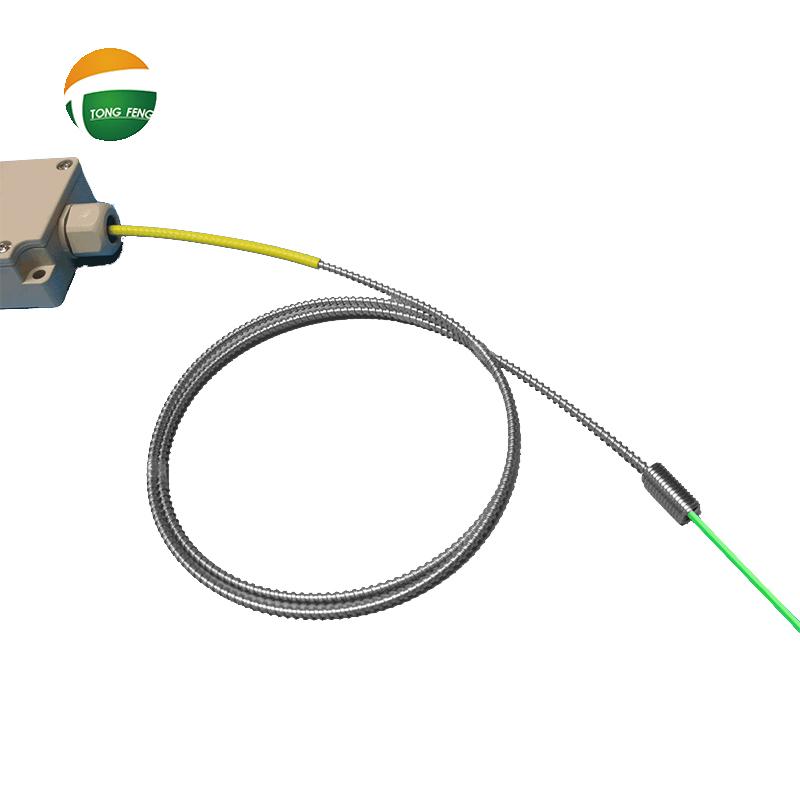

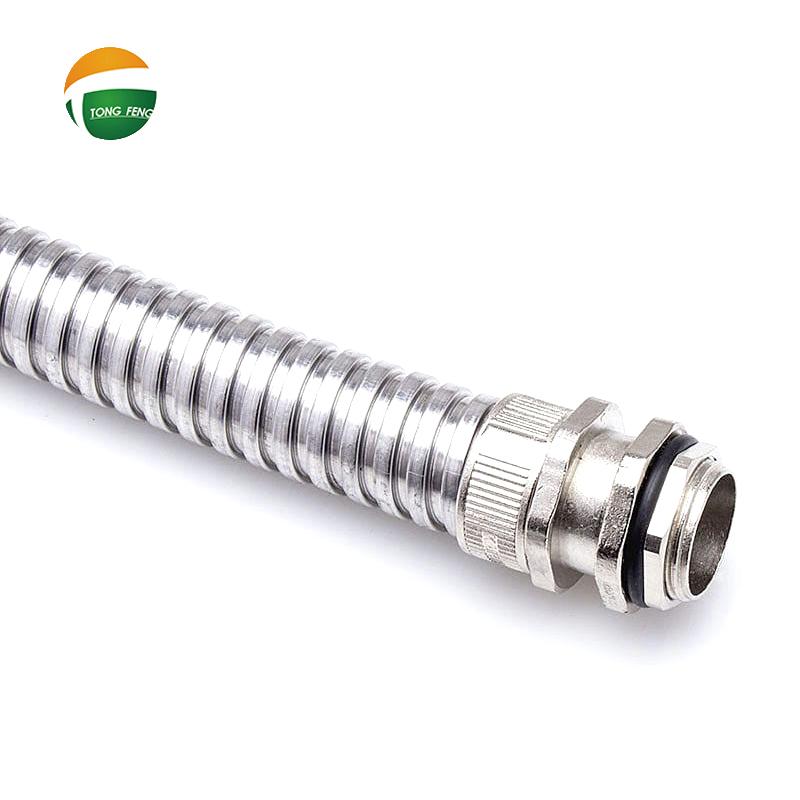

Small bore instrumentation tubing, Flexible metal conduit for optic fibers, Stainless steel strip (square locked or interlocked constructions), very flexible .Stainless steel for Corrosion Resistant *EMI Shielding,Durable and very long life. Most suitable for instrumentation electronics or sensors wiring protections.Flexible Stainless Steel Conduit is an ultra-flexible, stainless steel conduit designed primarily for OEM applications. A typical application would be armouring in specialty sensing devices, or medical equipment, including fiber-optics.

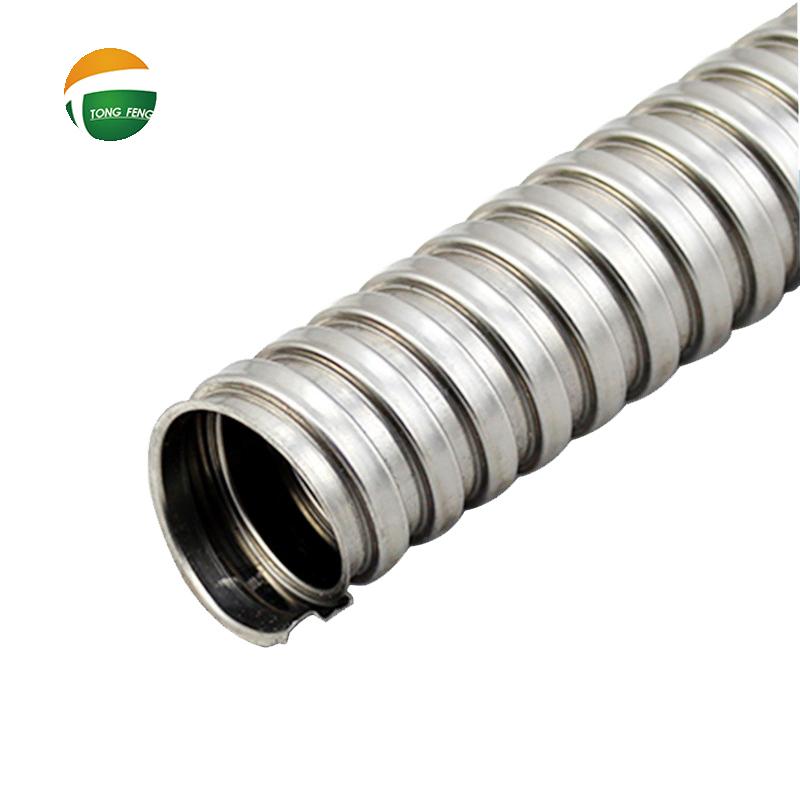

Made From Stainless Steel Strips: All Stainless steel construction for corrosion resistant; Durable and long life; Designed for tight-spot installation and where continuous flexing is required .

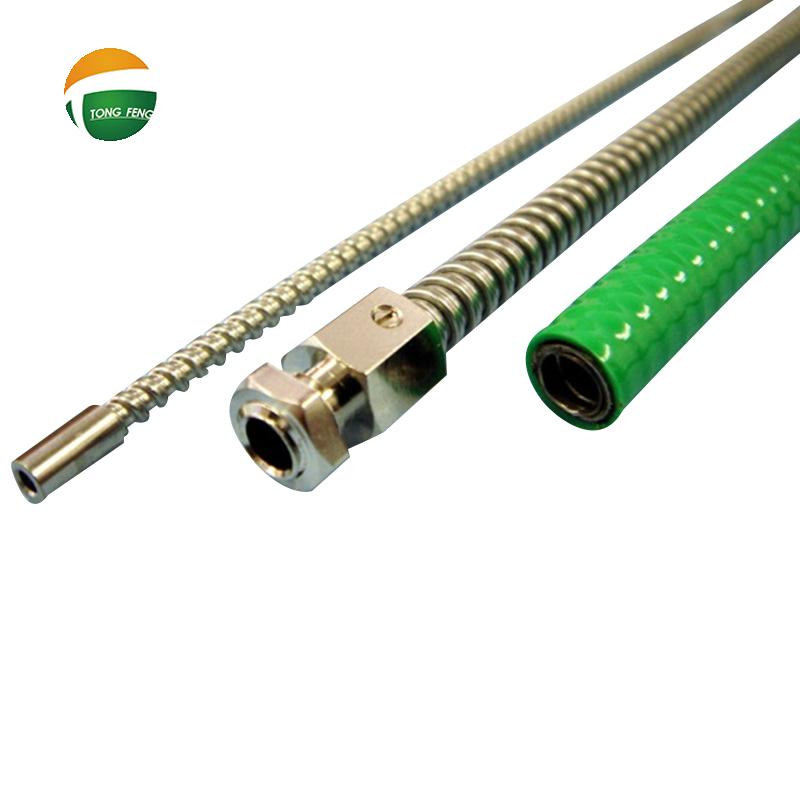

Applications: Suitable for use in Industrial environments. Protection for stainless tubes, sensor cords or electric cords. It is designed to protect sensitive electronic circuits in applications such as sensors, CCTV circuits, electronic instruments and industrial control wirings.Stainless Flexible Protection conduits with PVC Sheathing Or Metal Wire Braiding
For Large Quantity Order, it is possible to Vacuum-Jacket or Extrude a PVC covering onto the above
SquareLok Type conduits for water proof applications.
|
Type |
Inch |
(mm)I.D. |
(mm)O.D. |
(mm)O.D.+PVC |
Packing(M) |
|
TF-1.2N |
|
1.2 |
2.3 |
3 |
100 |
|

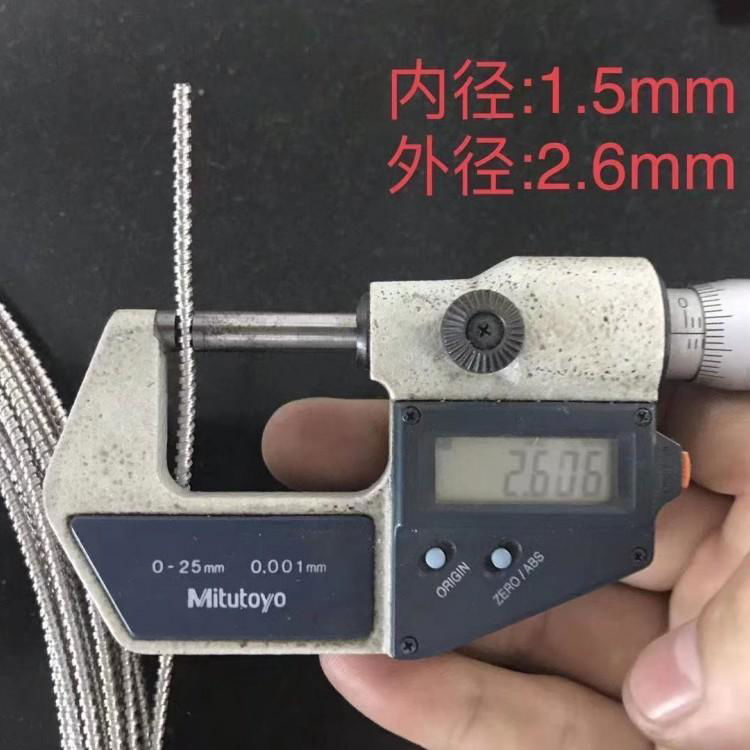

TF-1.5N |
|
1.5 |
2.6 |
3.4 |
100 |
|
TF-1.8N |
|
1.8 |
2.9 |
3.7 |
100 |
|
TF-2.2N |
|
2.2 |
3.4 |
4.4 |
100 |
|
TF-2.4N |
|
2.4 |
3.6 |
4.8 |
100 |
|
TF0305D |
- |
3.0 |
5.0 |
6.0 |
100 |
|
TF0406D |
- |
4.0 |
6.0 |
7.0 |
100 |
|
TF4666D |
- |
4.6 |
6.6 |
8.0 |
100 |
|
TF0507D |
- |
5.0 |
7.0 |
8.0 |
100 |
|
TF0608D |
- |
6.0 |
8 |
9.2 |
100 |
|
TF6484D |
- |
6.4 |
8.4 |
9.6 |
100 |
|
TF0709D |
|
7.2 |
9.2 |
10.2 |
100 |
|
TF0810D |
|
8.0 |
10.2 |
11.2 |
100 |
|
TF9512D |
|
9.5 |
12.5 |
13.2 |
50 |
|
TF1013D |
1/4 |
10.0 |
13.0 |
14.2 |
50 |
|
TF1316D |
3/8 |
13 |
16 |
17.7 |
50 |
Fully InterLock Style (TF-S) InterLock metal strip and the edges of the strip are completely interlocked with each other. This offers increased crush protection, and higher axial strength.
|
Type |
Inch |
(mm)I.D. |
(mm)O.D. |
(mm)O.D.+ PVC |
Packing |
|
TF0406S |
— |
4.0 |
6.0 |
7.0 |
100 |
|
TF4666S |
— |
4.6 |
6.6 |
8.0 |
100 |
|
TF0507S |
— |
5.0 |
7.0 |
8.0 |
100 |
|
TF5478S |
— |
5.4 |
7.8 |
9.0 |
100 |
|
TF0608S |
— |
6.0 |
8.0 |
9.2 |
100 |
|
TF6384S |
— |
6.2 |
8.4 |
10.0 |
100 |
|
TF0709S |
— |
7.0 |
9.0 |
10.0 |
100 |
|
TF9512S |
|
9.5 |
12.0 |
13.0 |
50 |
|
TF1013S |
1/4" |
10.0 |
12.5 |
14.0 |
50 |
|
TF1215S |
3/8" |
12.7 |
15.5 |
17.7 |
50 |
