ND9A ND9B Sound Level Meter Calibrator Offers 4 Measurement Parameters

Model:ND9A
Brand:GRAIGAR
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus
Label:Sound Level Meter , Calibrator , ND9A ND9B
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Graigar Technology Co., Limited

Biz MemberGuang Dong - China
Live Chat: Chat Now
点击这里给我发消息Last Online:23 Nov, 2022

Product Description

ND9A  Sound Level Meter Calibrator for Quick and Easy Calibration of Sound Level Meters and Sound Measuring Systems



1. Main Unit

 2. Carrying Case

 3. Operation Manual



Standard Accessories:

  Model

A



  Standards

  GB/T15173, ANSI S1.40 CLASS2, IEC942

  Sound Pressure Level

  94dB



  114dB



  Accuracy

  0.5dB



  Frequency

  1000Hz

  Calibration Of Microphones

  1", 1/2"

  Power Supply

  1x6F22 9V Battery

  Dimensions

142 × 47 × 47 mm

  Weight

  275g (Including Batteries)

Details:

 * Suitable for field and laboratory use.

* Sensitivity calibration of microphones.

* The Calibrator employs solid state integrated circuitry that provides accurate and stable performance.

* Handy sound source for quick and easy calibration of sound  level meters and sound measuring systems.

Applications: For quick and easy calibration of sound  level meters and sound measuring systems.
Features:

New ND9B Sound Level Meter Calibrator (94dB/114dB)

Spec: For quick and easy calibration of sound  level meters and sound measuring systems.

Features

* Handy sound source for quick and easy calibration of sound  level meters and sound measuring systems.
* The Calibrator employs solid state integrated circuitry that provides accurate and stable performance.
* Sensitivity calibration of microphones.
 * Suitable for field and laboratory use.

Model ND9A ND9B
Standards GB/T15173,ANSI S1.40,IEC942
Sound Pressure Level 94 dB 94 dB
114 dB 114 dB
Accuracy 0.5 dB 0.3 dB
Frequency 1000Hz

Cailbration Of

Microphones

1’’,1/2’’
Power Supply 1x9V 6F22 Battery
Dimensions 142x47x47 mm
Weight 275g(Including Battery)

 about the shipment:we have spot goods in the warehouse and will deliver the goods 1 to 2 days after your payment ,about 3 to 7days to your delivery address.if you have any questions,please consult us


Product Image

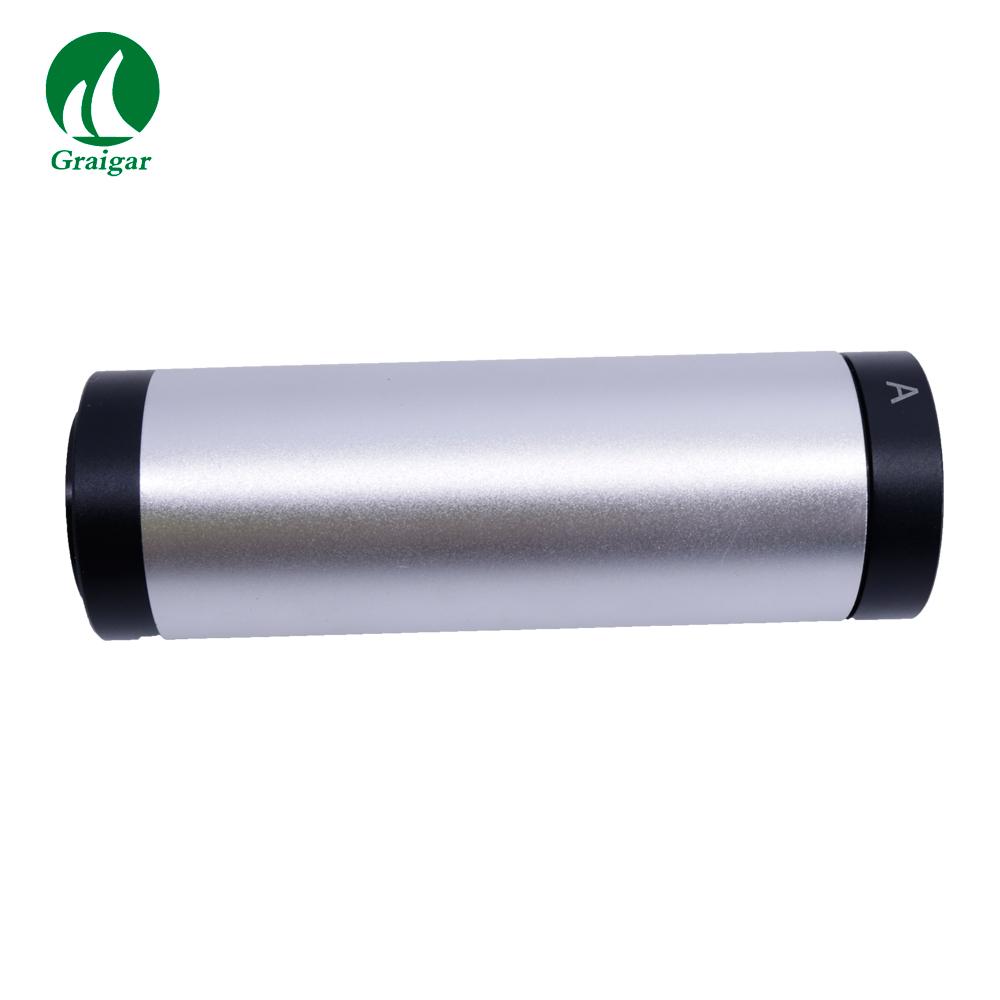

ND9A ND9B Sound Level Meter Calibrator Offers 4 Measurement Parameters 1
