| Model: | TM1240 |
|---|---|
| Brand: | GRAIGAR |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Electronic Measurment Apparatus |
| Label: | Low Power Digital , Thickness Meter , NEW TM-1240 |
| Price: |
US $190
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |

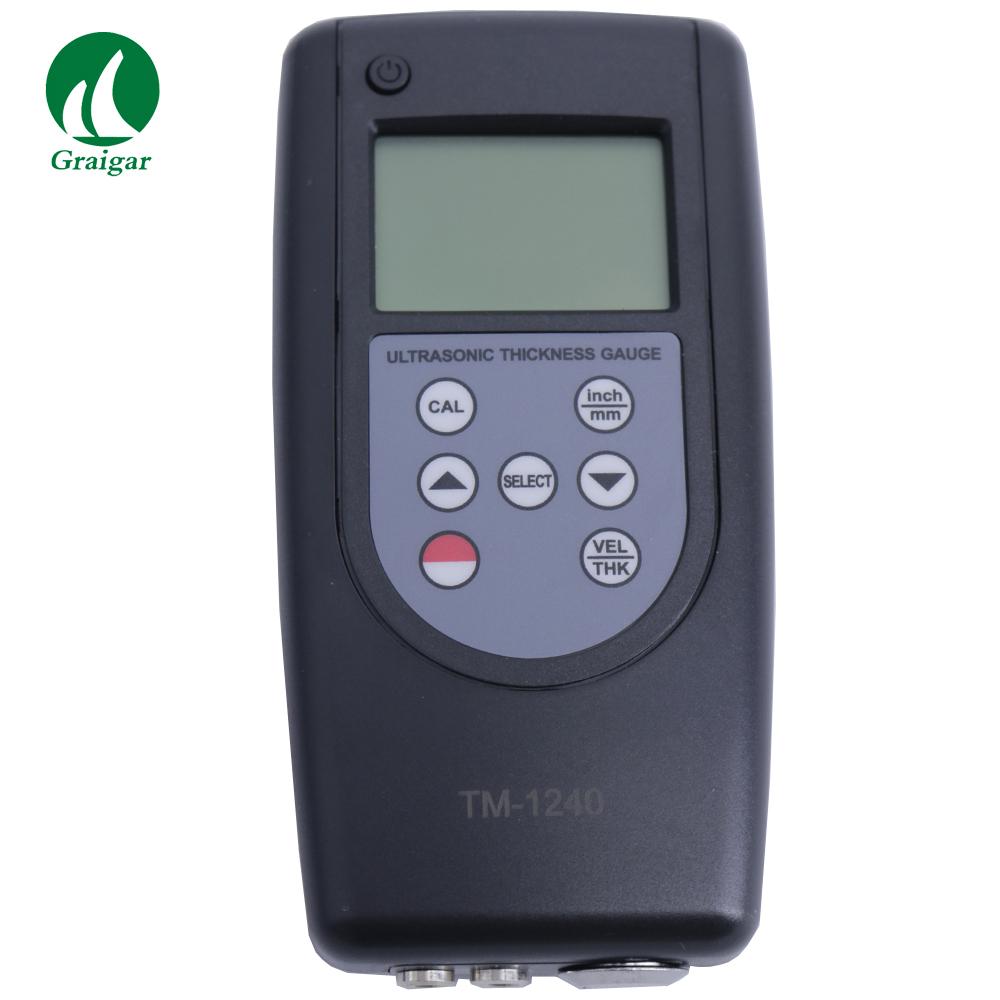

NEW TM-1240 digital display plate thickness meter high precision instrument for measuring metal thickness gauge 0.01 mm
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
|
Display |
4 Digit, 10 mm LCD |
|
Operating Principle |
Ultrasonic |
|
Measuring Range (metric / Imperial) |
0.75~400mm (45# steel) (Depend on Probe) |
|
Battery Indication |
Low Battery Indication |
|
Sound Velocity |
1000~9999 m/s |
|
Lower Limit Steel Pipes |
Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer |
|
Calibration Block |
Included |
|
Resolution |
0.1mm / 0.01mm / 0.001inch |
|
Accuracy |
± (0.5%n + 0.1) |
|
Automatic memory material code and the value of sound velocity |
|
|
Power off |
Auto Power off & Manual Power Off |
|
Operating Conditions |
Temperature: 0~40 °C, Humidity: < 85 %RH |
|
Power Supply |
4 x 1.5 V AAA (UM-4) Battery |
|
Dimensions |
140 x 72 x 34 mm |
|
Weight |
185 g (Not Including Batteries) |
Standard Accessories:
1. Main Unit
2. 5M8 Standard Sensor
3. Coupling Agent

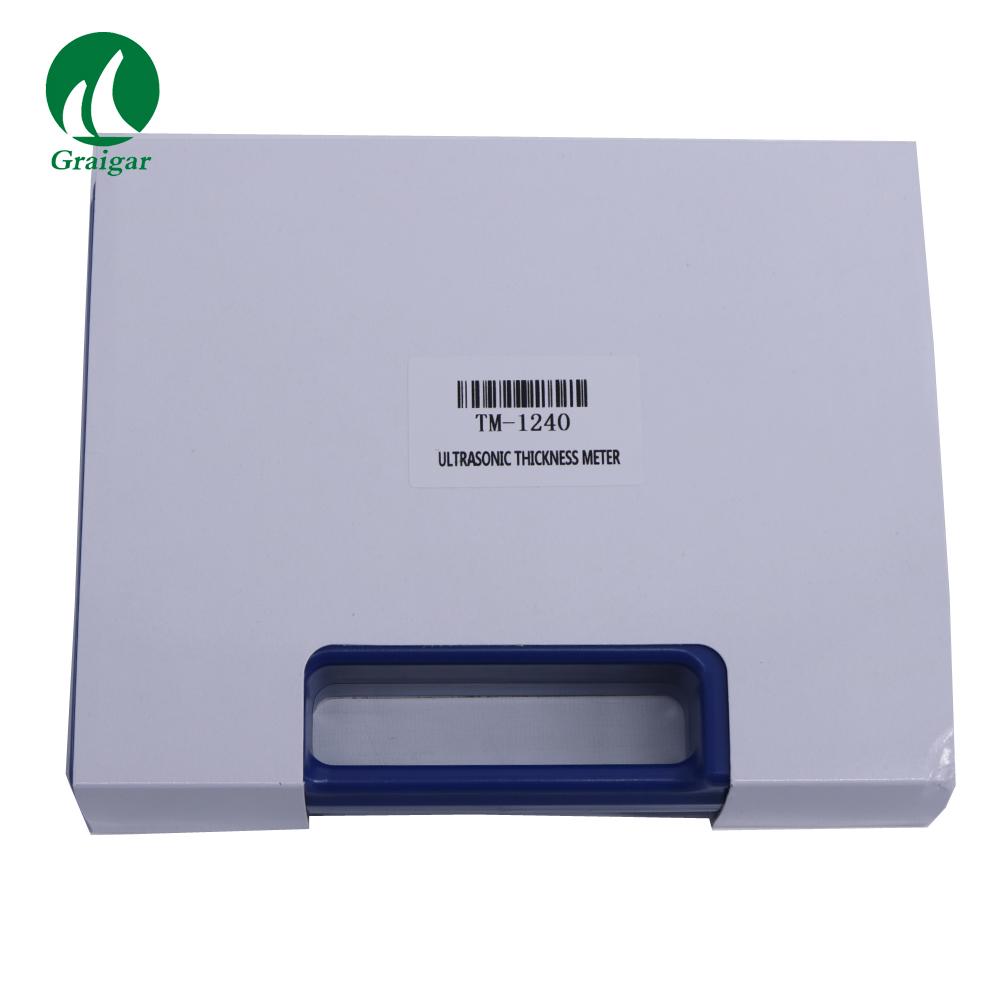

4. Carrying Case
5. Operating Manual
Optional Accessories:
1.6M 6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2.5M 12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3.Curved Surface Probe
4. USB, RS-232C data cable with software
