|Origin:||Made In China|
|Category:||Metallurgy , Mining & Energy / Metallurgy & Mining / Piping Tubing|
|Label:||Pipe Based Screen , Stainless WireScreen , Wire Screen Pipe|
|Min. Order:||1 pc|

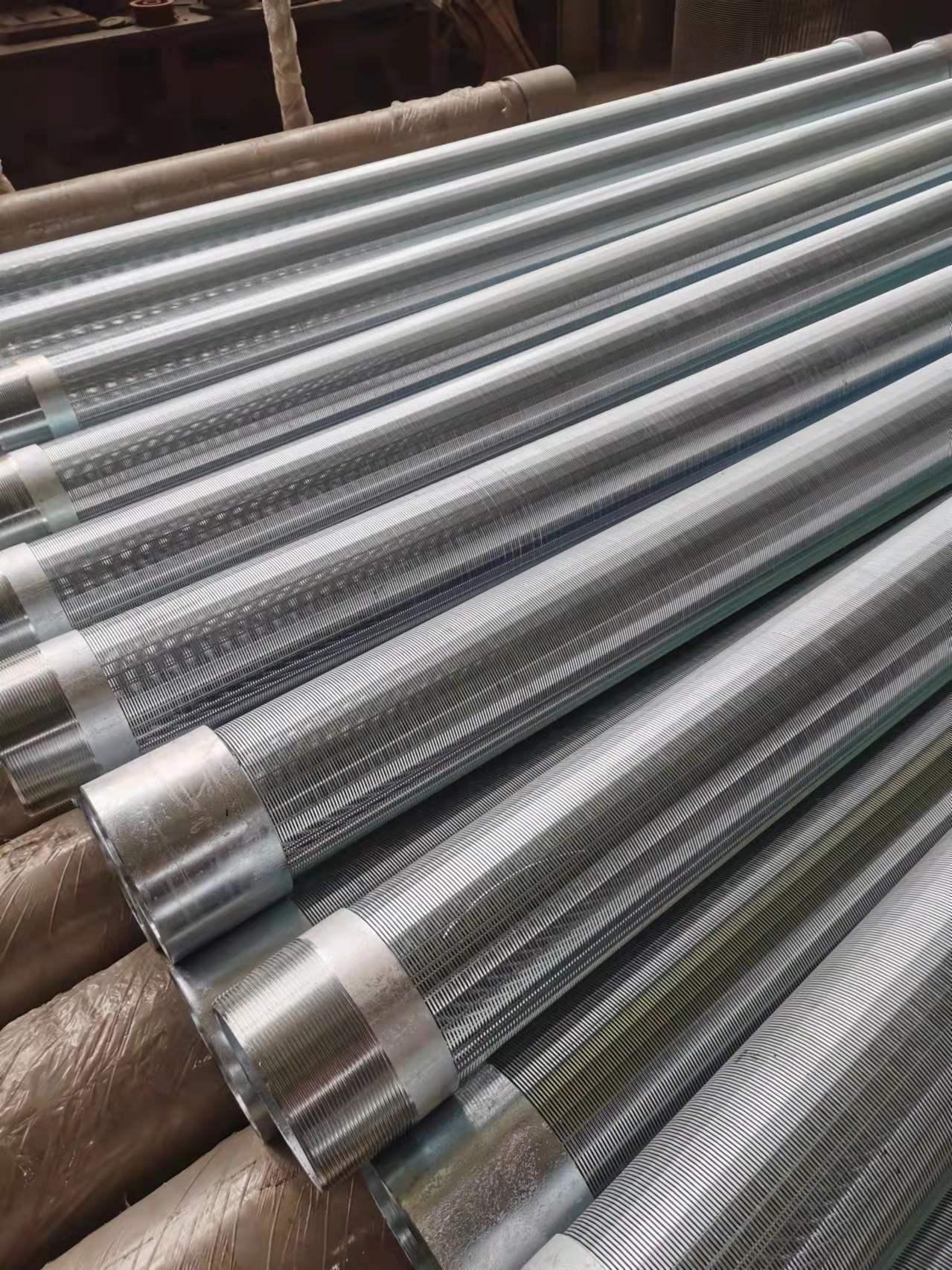

Pipe based wire wrapped screen pipe is the most popular sand control device with long history due to its keystone structure slot and accurate sand control performance. It is widely applied in oil, gas, water well gravel pack sand control operations.
The wire wrapped screen includes three parts, that are basepipe with holes or slots, wire shroud (including wires and ribs) and welding rings. Wire shroud is welded to perforated or slotted basepipe through welding rings, which integrates the screen into one whole assembly.
According to formation medium particle size, we will propose wire wrapped screen with different slot width.
|Product Name||Pipe Based Sand Control Wire Wrapped Screen Pipe|
API Spec 5CT J55,
API Spec 5CT K55,
API Spec 5CT N80,
API Spec 5CT L80-1,
API Spec 5CT L80-9Cr,
API Spec 5CT L80-13Cr,
API Spec 5CT P110,
API Spec 5CT P110 Cr13S,
API Spec 5CT TP110H,
API Spec 5CT 80SS,
API Spec 5CT 90SS
|Wire Material||Stainless Steel AISI 304, AISI 316L|
|Application||Oil, Gas and Water Well Downhole Well Completion, SAS, ICGP, OHGP, CHFP|
|Manufacturer and Supplier||Dongying Mingde Petroleum Technology Co., Ltd|
