Stainless Steel Sand Control Wire Wrapped Screen Pipe

Model:WWS-1
Brand:Mindeoil
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Piping Tubing
Label:Wire Wrapped Screen , Stainless WireScreen , WWS
Price: US $130 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Dongying Mingde Petroleum Technology Co., Ltd

Biz MemberShan Dong - China
Live Chat:
点击这里给我发消息Last Online:19 Aug, 2022

Product Description

Wire wrapped screen pipe is one of the most popular sand control equipment with long history due to its keystone structure slot and fine sand control accuracy. It is widely applied in gravel pack operations.

The wire wrapped screen includes three parts, basepipe (perforated or slotted), wire shroud (including wires and ribs) , welding rings.

For water wells, wire shroud without based is used, called Johnson Screen Pipe.

According to formation medium particle size, we will propose wire wrapped screen with different slot widths.

Name Stainless Steel Sand Control Wire Wrapped Screen Pipe
Size 1.9''-7-5/8''
Basepipe Grade API Spec 5CT J55, K55, N80, L80-1, L80-9Cr, L80-13Cr, P110, P110 Cr13S, TP110H, 80SS, 90SS
Wire Material Stainless Steel AISI 304, AISI 316L
 Packing In Bundles
Application Oil, Gas and Water Well Downhole Well Completion,  SAS, ICGP, OHGP, CHFP
Manufacturer Dongying Mingde Petroleum Technology Co., Ltd




Payment Terms:TT/LC

Product Image

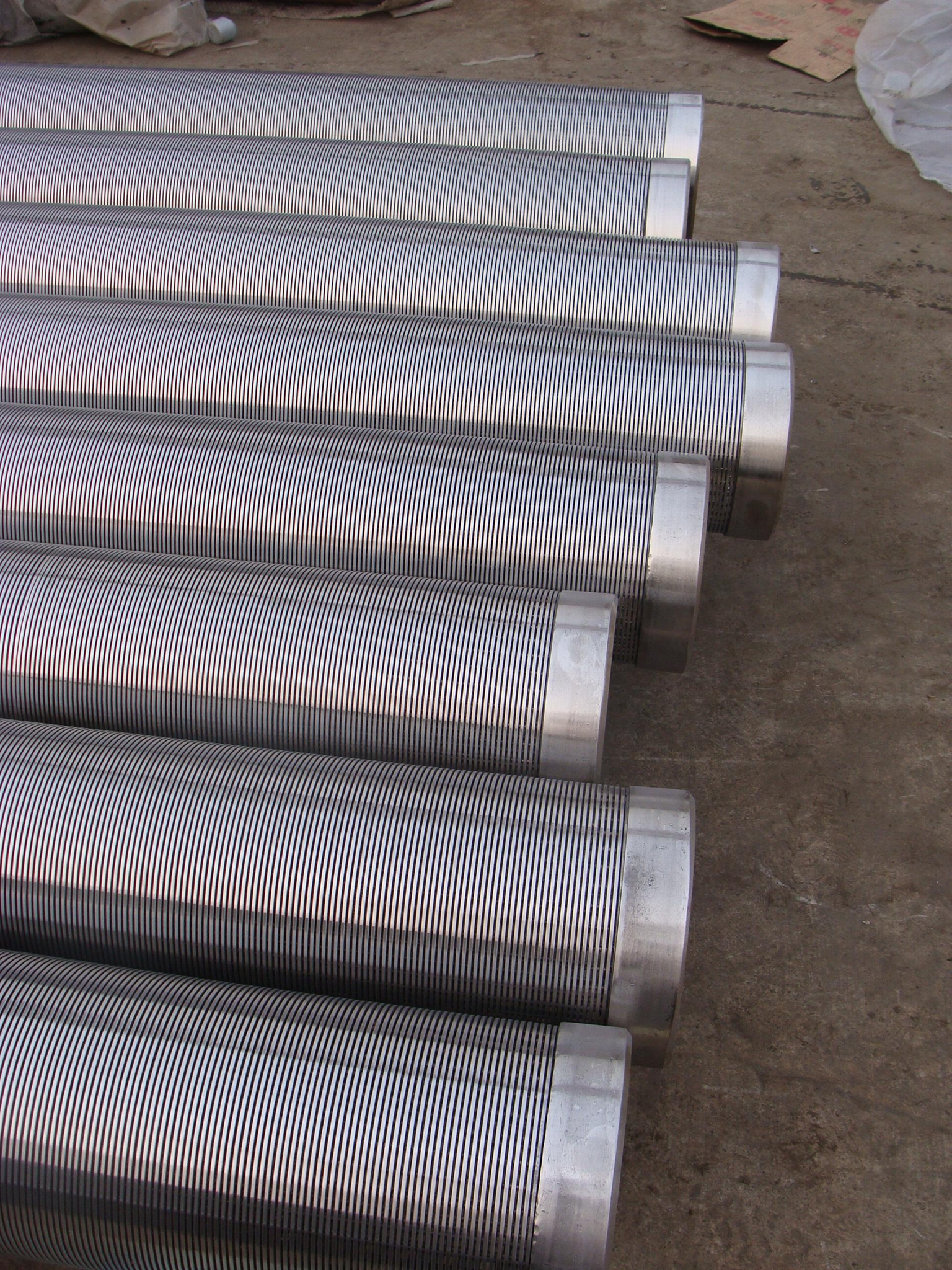

Stainless Steel Sand Control Wire Wrapped Screen Pipe  1
Img 1
Stainless Steel Sand Control Wire Wrapped Screen Pipe  2
Img 2
Stainless Steel Sand Control Wire Wrapped Screen Pipe  3
Img 3
Stainless Steel Sand Control Wire Wrapped Screen Pipe  4
Img 4
