Japan DIGITECH DTG series standard push-pull force gauge
DTG Push Pull Force Gauge Model:
DTG-1, DTG-2, DTG-5, DTG-10, DTG-20, DTG-50, DTG-100

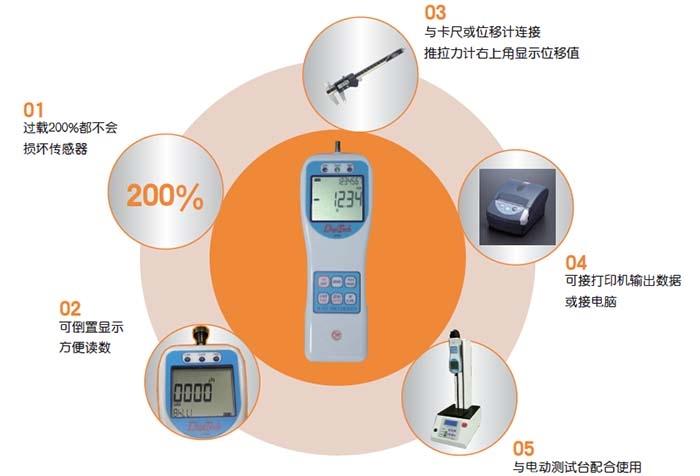

DTG push-pull force gauge Product description:
1. 200% overload will not damage the sensor.
2. The display can be inverted for easy reading.
3. Connect with caliper or displacement meter, and the displacement setting is displayed on the upper right corner of the push-pull force meter.
4. It can be connected to a printer to output data or to a computer.
5. Used in conjunction with an electric test bench to maintain a 90-degree downward pressure and uniform pressure.
DTG push-pull force gauge model list
|
model |
DTG-1 |
DTG-2 |
DTG-5 |
DTG-10 |
DTG-20 |
DTG-50 |
DTG-100 |
|
Measuring range |
10N (1kgf) |
20N (2kgf) |
50N (5kgf) |
100N (10kgf) |
200N (20kgf) |
500N (50kgf) |
1000N (100kgf) |
|
Minimum representation |
0.001N (0.1gf) |
0.01N (1gf) |
0.01N (1gf) |
0.01N (1gf) |
0.1N (10gf) |
0.1N (10gf) |
0.1N (10gf) |
|
Measuring axis |
M6 |
|
Measurement accuracy |
Within ±0.2%f.s |
|
Unit of measurement |
N,kgf(gf),lb |
|
Measurement cycle |
1ms, 5ms, 16ms, 50ms Switch at will |
|
Indicates the update cycle |
1, 2, 5, 10, 20 times/sec Switch at will |
|
way of communication |
USB mini B |
|
Memory function |
1000 data |
|
External input |
MITUTOYO DIGIMATIC input / contact ON, OFF input |
|
Printer output |
MITUTOYO DIGIMATIC output/Serial output |
|
Electric table output |
Load and displacement setting mode UP · DOWN · STOP/OVER LOAD stop signal |
|
Analog output |
±2V/f.s (load value) |
|
Specification judgment output |
LOW · GOOD · HIGH LED lighting and output |
|
Display |
H45mmxW50mm LED/ 6-digit load display, 7-digit displacement display/battery remaining display |
|
Body size |
H45mmxＷ74mmxD37mm |
|
Body weight |
About 500g |
|
Operating temperature |
0℃～４０℃ |
|
power supply |
Built-in Ni-MH battery/AC100V～240V compatible charger |
|
annex6 types of measuring jigs/charger/USB cable |
Body storage box/Operation manual/Guarantee |
FX-1 software can be downloaded for free
FX-100T FX-100 time and displacement software need to choose to purchase
Standard accessories
