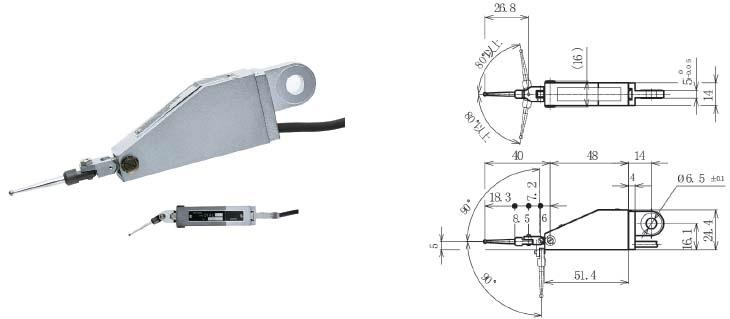

DTH-L02 electronic comparison probe Japan CITIZEN
DTH-L standard type: very small measuring pressure, as low as 0.0196N, with a variety of measuring pressures to choose from
DTH-LU orientation type: Low measuring pressure: 0.0196N
Model: DTH-L02
Brand: Japan CITIZEN
Origin: Japan
Measuring range: ±0.5 mm
Measuring stroke: 1.5 mm
Measuring force: 0.0196 N
Zero position: about 0.5 mm
Repeatability: 0.3 um
Accuracy guarantee and stability range: 24+5℃
Operating temperature range: 0-50℃
|
model |
Measuring range mm |
Measuring stroke mm |
Measuring force N |
Zero position mm |
Repeatability um |
Accuracy guarantee stability range |
Operating temperature range |
|
DTH-L02 |
±0.5 |
1.5 |
0.0196 |
About 0.5 |
0.3 |
24+5℃ |
0-50℃ |
|
DTH-L08 |
±0.5 |
1.5 |
0.0785 |
About 0.5 |
0.3 |
24+5℃ |
0-50℃ |
|
DTH-L15 |
±0.5 |
1.5 |
0.0147 |
About 0.5 |
0.3 |
24+5℃ |
0-50℃ |
|
DTH-L02U |
±0.5 |
1.5 |
0.0196 |
About 0.5 |
0.3 |
24+5℃ |
0-50℃ |
|
DTH-L08U |
±0.5 |
1.5 |
0.0785 |
About 0.5 |
0.3 |
24+5℃ |
0-50℃ |
|
DTH-L15U |
±0.5 |
1.5 |
0.0147 |
About 0.5 |
0.3 |
24+5℃ |
0-50℃ |
DTH-L●● Standard Type
Very small measuring pressure, low pressure 0.0196N, there are a variety of measuring pressures to choose from
DTH-L●●U Universal type
Low measuring pressure: 0.0196N
Lever type electronic comparison probe Japan CITIZEN Citizen
