SA-S110/03N electronic comparison probe IP67 grade Japan CITIZEN
Model: SA-S110/03N
Brand: CITIZEN, Japan
Origin: Japan
Measuring range: 10mm
Minimum reading: 0.5um
Indication accuracy: 2.0um
Measuring force: 0.35N or less
Probe: ceramic ball Ø3.175mm

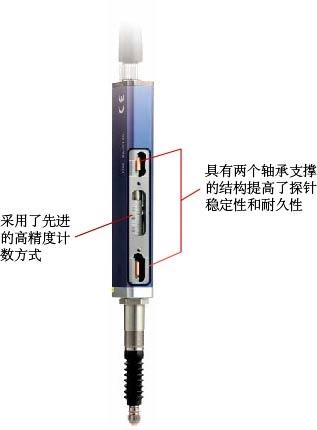

The new high functionality and dual bearing support provide high stability, which sets a new standard.
The structure with two bearing supports improves the stability and durability of the probe.
The probe body is equipped with LED lights to warn different colors of LED lights to show whether the product is within the tolerance range
Over-measurement travel protection device:
Errors that occur due to various factors (including operating errors and accidental factors), or when exceeding the stroke is detected, will be automatically output as an error and the equipment will immediately stop working to avoid unnecessary problems.
Probes and signal cables are sold separately, and are commonly used in all SA series display/multi-point measurement connection devices, but the models are different and marked
The length of the quasi-signal line is: 2 meters, 5 meters, and 10 meters.
|
model |
SA-S110 |
SA-S110/03N |
SA-S510 |
SA-S510/03N |
|
Measuring range |
10mm |
10mm |
10mm |
10mm |
|
Minimum reading |
0.1um |
0.5um |
0.1um |
0.5um |
|
Indicating accuracy |
1.0um |
2.0um |
1.0um |
2.0um |
|
Measuring force |
1.65N or less |
0.35N or less |
1.65N or less |
0.35N or less |
|
Probe |
Ceramic ball Ø3.175mm |
Ceramic ball Ø3.175mm |
Ceramic ball Ø3.175mm |
Ceramic ball Ø3.175mm |
