LINOS vision lens (1)-Optem FUSION imaging solution

Optem FUSION imaging solution

Product name: Lens

Model: Fusion Series

Brand: American Optem

Country of Origin: United States

Qioptiq is a subsidiary of Ecelida Technology Co., Ltd. The optical products designed and manufactured by the company and the solutions provided are widely used in various markets and applications in the fields of medical and life sciences, industrial manufacturing, defense and aerospace, and R&D.

Qioptiq's optical inspection products cover a wide range of applications from classic machine vision to non-industrial imaging, including life sciences, biometrics and direct end users. All these different applications have unique requirements and usually result in application-specific products. With the continuous expansion of the scope of different imaging tasks and the huge diversity of requirements for many applications, it is a huge challenge for manufacturers not only to provide the latest required components, but also to keep up with the trend. Ecelida and its brand Qioptiq continue to add new products to support the requirements of many customers.

OPTEM Fusion series

Extreme micro imaging flexibility

The Optem FUSION lens system adopts extended functions, two-way infinity optics and unified module interchangeability to provide OEMs with an ideal lens solution to simplify the integration of high-magnification imaging. In the critical visible light VIS (400-700 nanometers), near Infrared NIR (700-1100 nm) and short-wave infrared SWIR (900-1700 nm) wavelength range.

Just simply replace the module, you can change the form, function and performance of your optical fusion lens.

Optem FUSION lens system can meet the precise wavelength range, space, function, installation and imaging requirements of the system.

Provide optimized solutions for OEMs to shorten time to market

A FUSION fusion imaging solution can be designed in minutes instead of hours. FUSION's modular products provide universally interchangeable components, which means your prototype will arrive in a few days...not months.

Configured as your application

Using standard FUSION lens matrix components, Qioptiq has optical design capabilities and manufacturing expertise to integrate almost any optical microscope function into your optical fusion lens system. Professional components and customized configurations are simple, fast and cost-effective.

Unique modular imaging flexibility

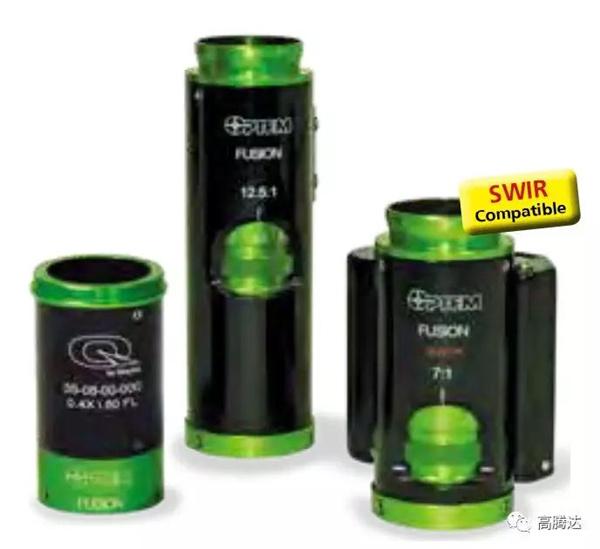

Equipped with multifunctional 7:1 or 12.5:1 zoom optics or various economic fixed magnifications

Now, all FUSION Lens lens system accessories can be matched with the new Fetura+ high-performance auto zoom lens

Now, Optem FUSION lens system can support a wider band, from visible light to short-wave infrared (400-1700 nm) wavelength range.

Exchange the lower group lens or long working distance objective lens to configure various imaging coverage

The camera mount and camera tube can be swapped to optimize the sensor coverage, almost any camera format or mount

Integrate coaxial or ring light LED illumination, and realize focusing and/or zooming with stepping motor

Broad wavelength support makes FUSION the perfect solution:

Pass silicon defect inspection and calibration

Hyperspectral imaging

Fluorescence imaging

Metrology

Fusion performance

Fixed magnification

basic configuration

Magnification.....0.16X

Digital aperture...0.005

Depth of field...23 mm

Field of view*...41X55mm

Working distance...490 mm

Maximum configuration

Magnification...12X

Resolution...540 lp/mm

Depth of field...0.018 mm

Field of view*.......5.5 X 0.73 mm

Working distance...32 mm

7:1 zoom magnification

basic configuration

Low zoom

High zoom

magnification

0.067X

0.46X

Digital aperture

0.0047

0.016

Resolution (Ip/mm)

14 lp/mm

47 lp/mm

Depth of field (mm)

25 mm

2.4mm

Field of view* (mm)

131X98mm

19X14mm

Working distance (mm)

490 mm

490 mm

-All field of view data calculated using 2/3 inch camera



Maximum configuration

Low zoom

High zoom

magnification

5X

35X

Digital aperture

0.047

0.16

Resolution (Ip/mm)

142 lp/mm

465 lp/mm

Depth of field (mm)

0.25 mm

0.024 mm

Field of view* (mm)

1.7 X 1.3 mm

0.25 X 0.19 mm

Working distance (mm)

490 mm

32mm

-All field of view data calculated using 2/3 inch camera

12.5:1 zoom magnification

basic configuration

Low zoom

High zoom

magnification

0.045X

0.55X

Digital aperture

0.0036

0.019

Resolution (Ip/mm)

11 lp/mm

58 lp/mm

Depth of field (mm)

44 mm

1.5 mm

Field of view* (mm)

196X147mm

16X12mm

Working distance (mm)

490 mm

490 mm

-All field of view data calculated using 2/3 inch camera

Maximum configuration

Low zoom

High zoom

magnification

3. 4X

41 X

Digital aperture

0.036

0.19

Resolution (Ip/mm)

108 lp/mm

576 lp/mm

Depth of field (mm)

0.44 mm

0.015 mm

Field of view* (mm)

2.6 x1.9 mm

0.21 x 0.16 mm

Working distance (mm)

32 mm

32 mm

-All field of view data calculated using 2/3 inch camera

FUSION features

Optem FUSION aims to provide unprecedented configuration and performance flexibility. A wide range of interchangeable components provides OEMs with forward flexibility, enables them to develop imaging capabilities based on the life cycle of the system, and provides researchers with the flexibility of rapid line-wrapping for desktop video microscope applications.

Extremely high imaging flexibility function

FUSION FUSION can provide three different optical and mechanical functions in one lens system.

Specify economical fixed magnification imaging module or 7:1 and 12.5:1 zoom optical module to meet your precise micro imaging needs. Infinite optics and uniform pipe joint components simplify exchange and maximize flexibility in system development and advancement.

Learn mechanical flexibility

At any point along the optical path, 90-degree reflecting prisms and beam splitter 50/50 prisms can be integrated to modify the shape and applicability of FUSION according to your specific integration requirements. The combination of multiple cube modules allows multiple cameras and lens functions to be integrated on an optical theme. optical subject.

Achieve higher magnification

Through the optical long-distance target, the image optimization of FUSION is carried out. Choose from 2x to 50x high resolution and M-Plan APO and objective lens.

Tunable lens module

The space-saving liquid lens module provides fast autofocus function without the need for a cumbersome electric focus driver. Just insert directly into the selected next group of functional modules.

Fluorescence imaging

The two modules use the Zeiss 91029 prism provided by the user. The lower module provides system fluorescence illumination and imaging. The upper module will allow two different wavelengths to be separated.

Fetura+ high-speed zoom

Use the latest Fetura+ to replace the standard 12.5:1 FUSION core zoom module to improve speed and durability. Fetura+ travels through the entire zoom range in less than 1 second, with a service life of more than 1 million times. Motorization and control are built-in

Optical accessories

The bidirectional infinity optical system allows a series of accessory modules (including iris, filter wheel, polarizer and aperture) to be integrated at any position along the optical path.

 SWIR shortwave infrared band compatibility

If detailed information is critical to your application, the wide range of 400-1700 nm wavelengths facilitates multi-modal imaging and is ideal for high-light imaging techniques (including hyperspectral imaging and image fusion).

LED illuminator

LED illuminators provide variable illumination levels for Optem fiber optic cables, exceeding halogen 150W light sources. The illuminator is small in size, compact in structure, and weighs only 2.7KG / 5.9 pounds. Its life span exceeds 25,000 hours. Comply with RoHS standard; UL and CE certification.

Stable image design

Expanded barrel diameter and wall thickness Expanded barrel diameter and barrel thickness, plus a 3-point tail coupling interface, can facilitate robust lens assembly. In addition, low profile, inline mounting blocks allow multiple mounting points along the length of the module to ensure maximum integration stability.
