| Model: | - |
|---|---|
| Brand: | Xinlun |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | no |
| Price: |
US $1400
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:21 Aug, 2023 |

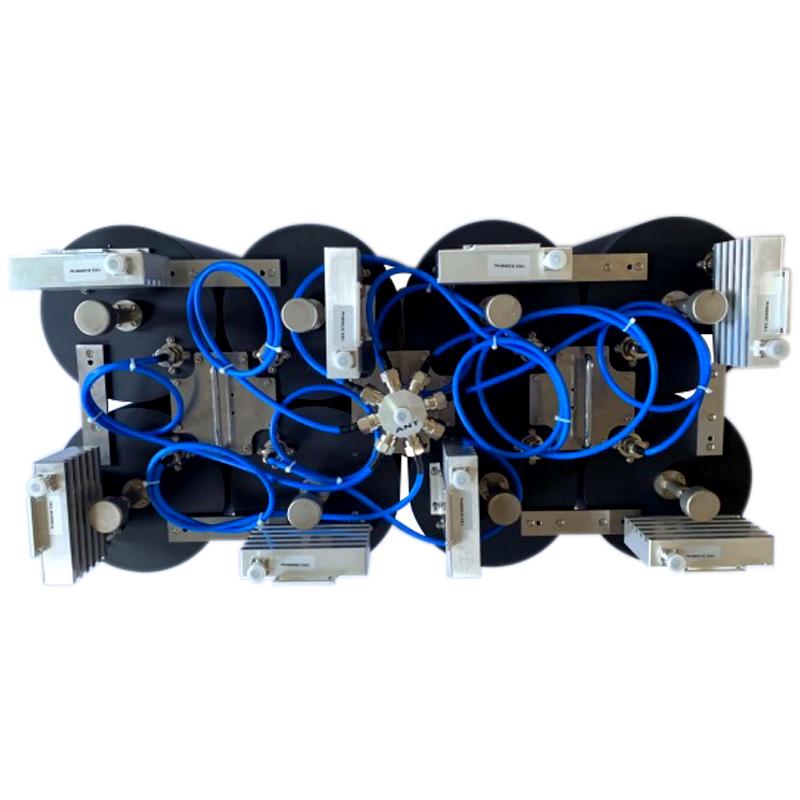

VHF Cavity Transmitter Combiner
（COM（X）-137-174-100-01）
|
No |
Item |
Specification |
|
1 |
Frequency range |
137-174MHz |
|
2 |
Frequency Separation |
≥250 KHz |
|
3 |
Tuning Range |
5.0MHz |
|
4 |
VSWR |
In≤1.25 Out≤1.50 |
|
5 |
Isolation ANT-TX |
≥60dB |
|
6 |
Isolation TX-TX |
≥65dB |
|
7 |
Power |
100W(CW) |
|
8 |
Temperature |
Normal +15℃～+35℃ Special -10℃～+65℃ |
|
9 |
Connector |
N-K，50Ω |
|
10 |
Color |
Gray |
|
Channel （X） |
Insertion Loss |
Dimension Size |
||
|
137-174MHz |
Length(mm) |
High/(mm) |
wideth(mm) |
|
|
2 |
≤3.4dB |
420 |
750 |
210 |
|
3 |
≤3.6dB |
420 |
750 |
420 |
|
4 |
≤3.8dB |
420 |
750 |
420 |
|
6 |
≤4.6dB |
420 |
750 |
630 |
|
8 |
≤5.0dB |
420 |
750 |
840 |
| Payment Terms: | T/T,paypal |
|---|---|
