| Model: | XL-SGQ-1200 |
|---|---|
| Brand: | Xinlun |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | - |
| Price: |
US $90
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:19 Apr, 2024 |

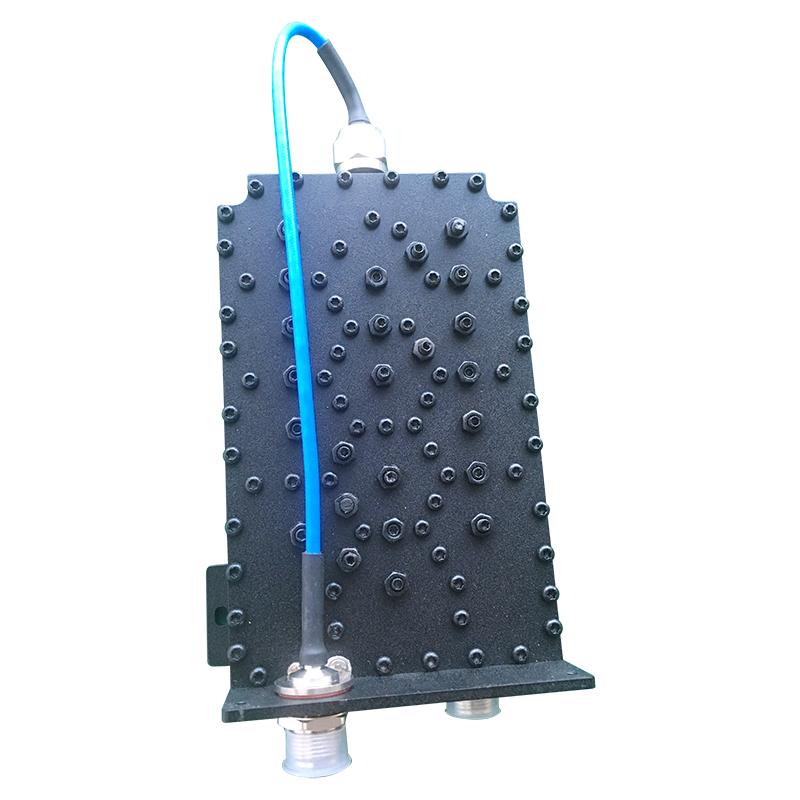

1.2G duplexer specification
(date)：2018.10.23 (NO.)：XL-SGQ-350
|
（Product ID） |
|
（Model） |
Duplexer |
|
|
（Product Description） |
d |
|||
|
Product specification |
||||
|
Channel |
|
|||
|
working frequency（MHz） |
1290-1293 |
1270-1273 |
||
|
Insertion loss（dB） |
≤1.5 |
≤1.5 |
||
|
Fluctuations in the band（dB）
|
≤1.0 |
≤1.0 |
||
|
Band rejection（dB） |
1270-1273MHz≥85dB |
1290-1293MHz≥85dB |
||
|
VSWR |
≤1.3 |
|||
|
Input impedance（Ω） |
50 |
|||
|
Input power（W） |
≥100 |
|||
|
working temperature(℃) |
-20～+65 |
|||
|
Port Type |
SMA |
|||
|
Dimensions（mm） |
133*109*40
|
|||
| Payment Terms: | T/T,paypal |
|---|---|
