2 colors automatic UV Flat screen Printer with conveyor

Model:SA2-1015C20UV
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:auto creen printer , auto screen machine , automatic printer
Price: US $17692 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Last Online:19 Aug, 2024

Product Description

       The speed of the shuttle multi-color screen printing machine is relatively slow, and it is difficult to meet the needs of users with high output requirements. The multi-color turntable flat screen printing machine is still the best-selling model in the market. The screen printing system and UVLED curing system of the multi-color screen printing machine are arranged around a central axis and remain in a fixed state, while the jig and products are placed on the disc that rotates around the central axis, and the stop position is controlled by the divider. When the turntable stops , the silk screen printing system descends for silk screen printing, and then turns to the next station for UVLED curing.
       The turntable screen printing machine can still achieve high-precision overprinting through precise operation, and the printing speed can be increased by 2 times. This is the design scheme of the main screen printing machine and has been widely accepted by the market.
      Since the space of the turntable screen printing machine is large enough, the adjustment process is more convenient. The multi-station setting of the workbench can also facilitate the installation of pre-press processing devices, feeding manipulators and unloading manipulators, which further increases the intelligence of printing. .

SA2-1015C20UV Automatic 2 colors  Flat screen printing machine with conveyor //Structure

Working table

 Conveyor working table, Size: 100*150mm

Actions

Up-down of screen plate

To be printed

  • Plain objects

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision guide shaft

SA2-1015C20UV Automatic 2 colors  Flat screen printer with conveyor //Usage and characters

Guide

  • 20 stations conveyor table to facilitate the production of  platics;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing.
  • High accurate Splitter controll rotating plate;
  • Automatic robot downloading;
  • PLC operation system.

Application

  • The machine panel, plastic parts, Paper,  furniture industry, glass industry, circuit board industry, film, wooden case

SA2-1015C20UV  Flat screen printing Machine with Conveyor //Parameters

Technical parameters

  • Max printing thickness: 260 mm;
  • Air consumption: 90Litre/Min;
  • Dimension of working table: 100×150mm;
  • Max printing areas: 80×130mm;
  • Max printing speed: 900Pcs/H;
  • Max frame dimension: 250×350mm;
  • Compress air: 5-7 bar;
  • Stroke of cylinder up and down:160mm;
  • Stroke of Squeegee: 200mm.

Works supply

  • 110V-220V Power supply;
  • 5-7Barcompress air;

Package parameters

  • Outer dimension:1.97×1.45×1.65m;
  • Net weight: 490kg;
  • Package dimension:1.47×1.49×1.70m;
  • Gross weight: 583kg;
  • CBM: 3.7235

H.S.CODE

8443192190

Certificate

CE

SA2-1015C20UV  2 Colors Flat screen printing Machine with conveyor //Advantage

Function

  • Conveyor table to facilitate the production .
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  • Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  • Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application: The speed of the shuttle multi-color screen printing machine is relatively slow, and it is difficult to meet the needs of users with high output requirements. The multi-color turntable flat screen printing machine is still the best-selling model in the market. The screen printing system and UVLED curing system of the multi-color screen printing machine are arranged around a central axis and remain in a fixed state, while the jig and products are placed on the disc that rotates around the central axis, and the stop position is controlled by the divider. When the turntable stops , the silk screen printing system descends for silk screen printing, and then turns to the next station for UVLED curing.
The turntable screen printing machine can still achieve high-precision overprinting through precise operation, and the printing speed can be increased by 2 times. This is the design scheme of the main screen printing machine and has been widely accepted by the market.
Since the space of the turntable screen printing machine is large enough, the adjustment process is more convenient. The multi-station setting of the workbench can also facilitate the installation of pre-press processing devices, feeding manipulators and unloading manipulators, which further increases the intelligence of printing. .

Product Image

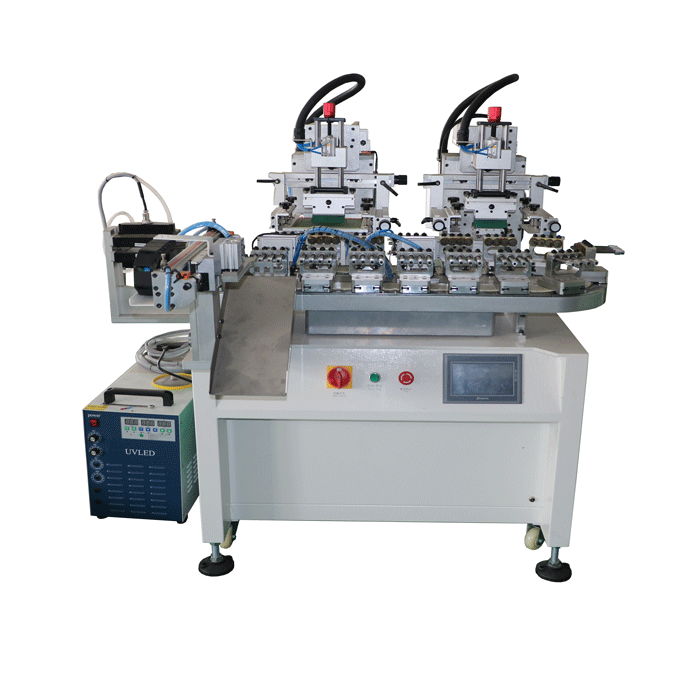

2 colors automatic UV Flat screen Printer with conveyor 1
Img 1

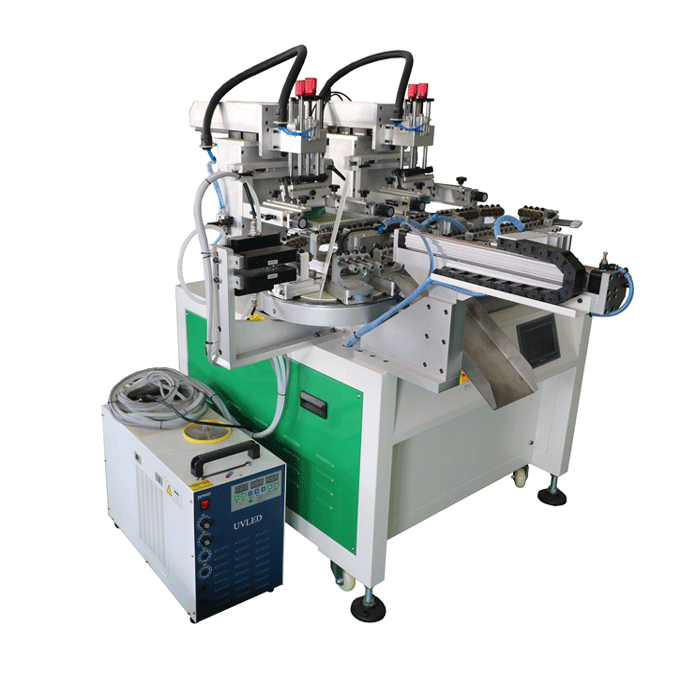

2 colors automatic UV Flat screen Printer with conveyor 2
Img 2

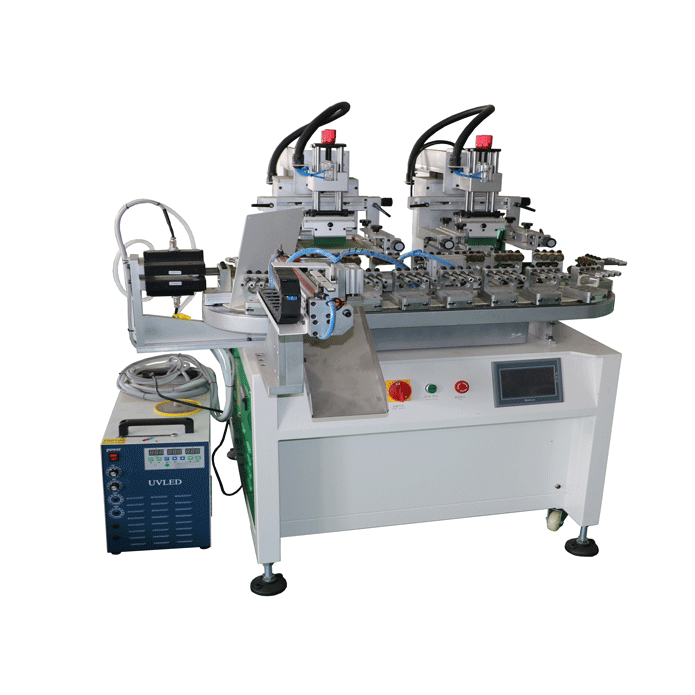

2 colors automatic UV Flat screen Printer with conveyor 3
Img 3

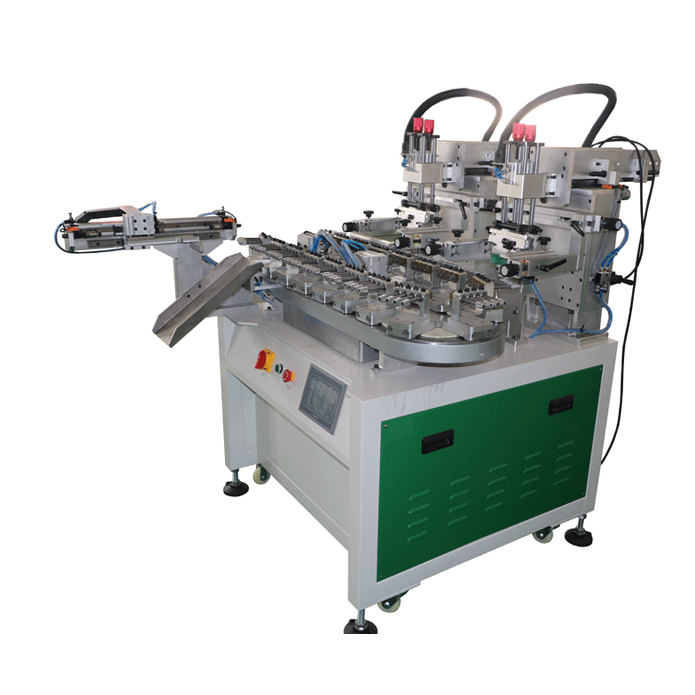

2 colors automatic UV Flat screen Printer with conveyor 4
Img 4
2 colors automatic UV Flat screen Printer with conveyor 5
Img 5
