| Model: | CWM |
|---|---|
| Brand: | JSWW or OEM |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh |
| Label: | copper wire mesh , brass wire mesh , phosphor bronze msh |
| Price: |
US $6
/ m²
|
| Min. Order: | 1000 m² |
| Live Chat: | Last Online:07 May, 2021 |

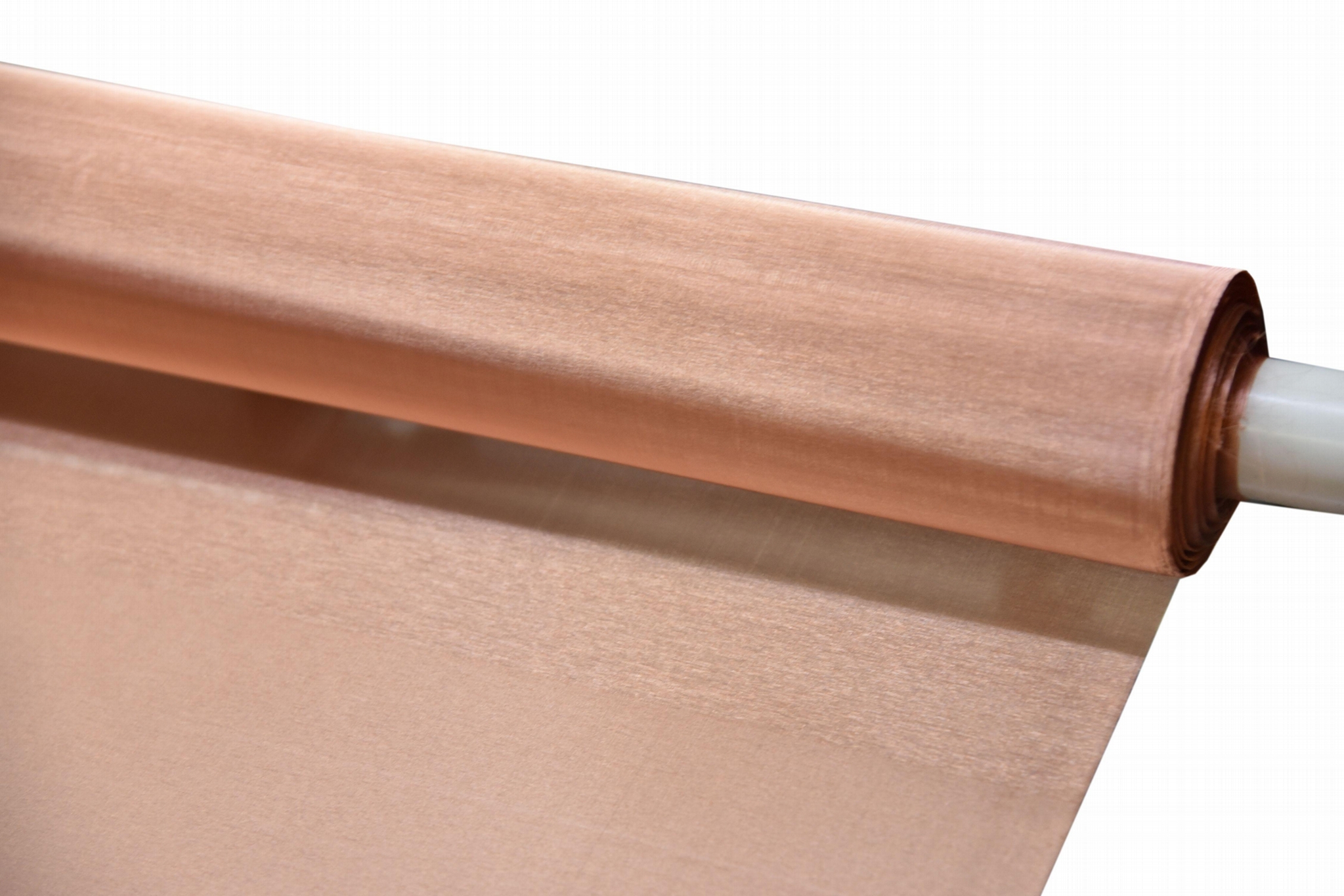

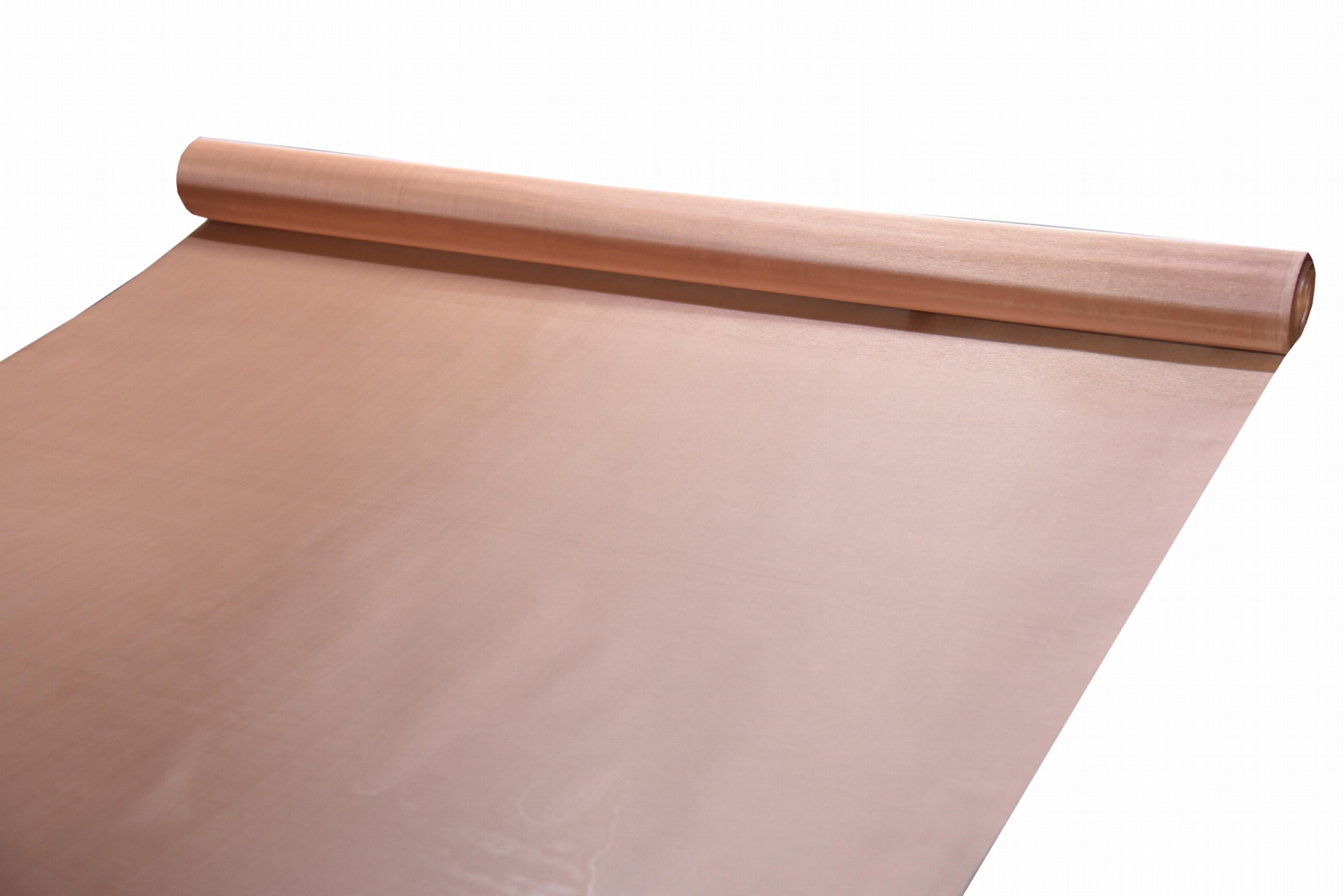

Copper mesh is woven from various copper wires.
Jiushen copper wire mesh detailed information as follows:
Material: Brass (H65, H80), Red Copper, Phosphor Bronze（CSn6.50.4)
Standard: ASTM E2016-2020-5000 / ASTM E2814-2011
Weaving Pattern: Plain Weave, Twill Weave.
Features: Corrosion resistance, wear resistance, non-magnetic, good ductility
Application: Sieve grain, powder, porcelain clay, porcelain printing, shielding, filter gas and liquid etc.
Specification:
| Copper Wire Mesh | ||
| Mesh（inch） | Wire Dia.(mm) | Aperture(mm) |
| 14 | 0.45 | 1.37 |
| 16 | 0.4 | 1.19 |
| 18 | 0.4 | 0.99 |
| 20 | 0.4 | 0.87 |
| 30 | 0.3 | 0.55 |
| 36 | 0.25 | 0.46 |
| 40 | 0.22 | 0.415 |
| 45 | 0.16 | 0.4 |
| 50 | 0.2 | 0.3 |
| 60 | 0.16 | 0.25 |
| 80 | 0.12 | 0.2 |
| 100 | 0.1 | 0.155 |
| 150 | 0.06 | 0.11 |
| 200 | 0.05 | 0.077 |
| 250 | 0.04 | 0.062 |
| OEM is available | ||
| Payment Terms: | TT |
|---|---|
