| Model: | AWSM |
|---|---|
| Brand: | JSWW or OEM |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh |
| Label: | Insect Screen Mesh , Window Screen Mesh , Aluminum Screen Mesh |
| Price: |
US $2
/ m²
|
| Min. Order: | 1000 m² |
| Live Chat: | Last Online:07 May, 2021 |

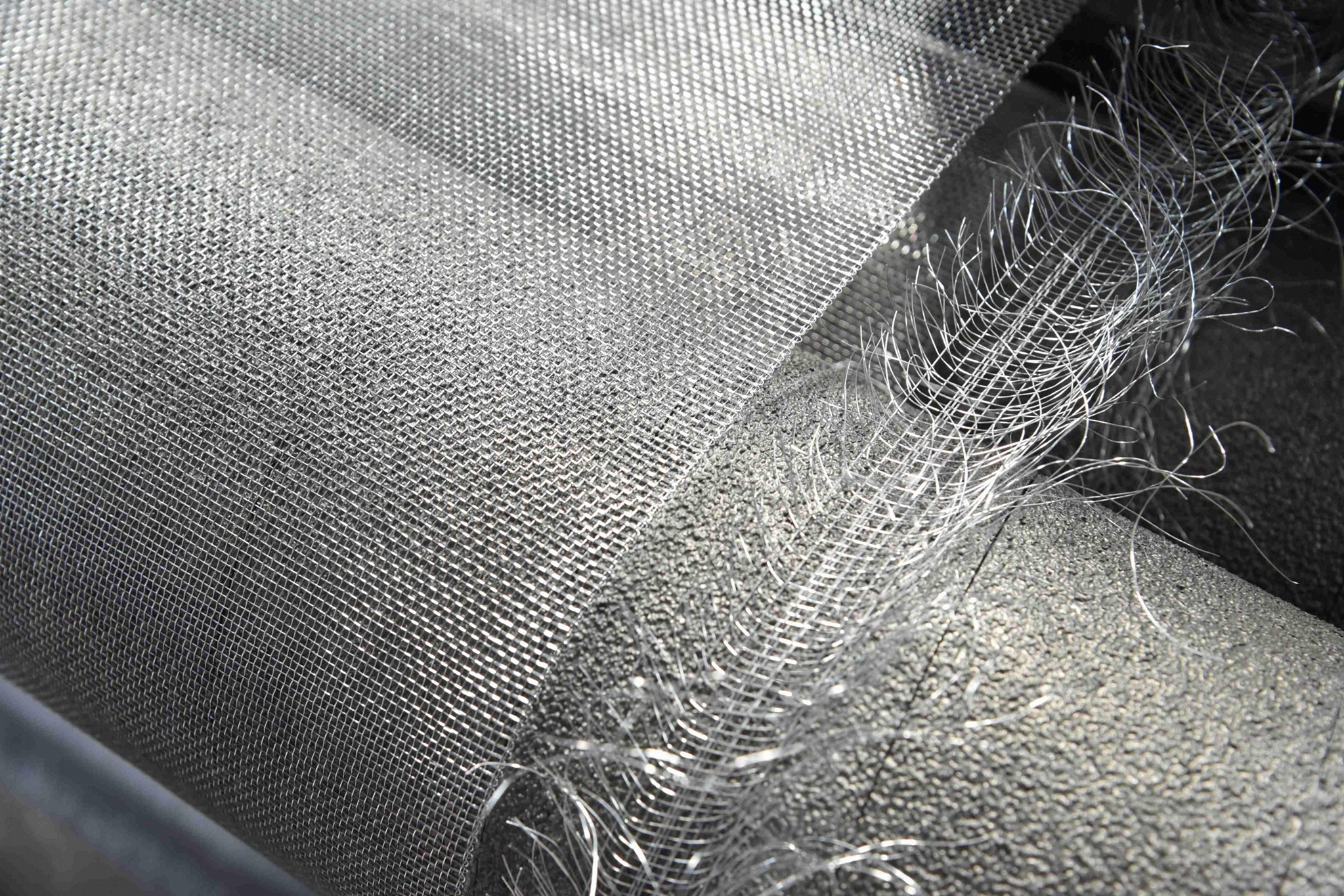

Aluminum window screens are woven from aluminum-magnesium alloy wires, also known as "aluminum-magnesium alloy screens". The color of aluminum alloy window screen is silver white. Characterized by light weight, good toughness, corrosion resistance, high temperature resistance and long service life. It does not rust and become mouldy even in a humid environment. Widely used in residential and various constructions for window screen projects.
Basic information of Jiushen aluminum window screen:
Standards: Q/EQl-40-2007 ASTM B117-09 ASTM E2016-15
Weaving Pattern: Plain Weaving selvaged edge/rough selvedge, cross ( skein) weave
Material: 5154A(H39/H19)
Benefits of aluminum window screens:
Light weight
Good toughness
Corrosion resistance
High temperature resistance
Long service life
Do not rust and become mouldy
Good ventilation, no shading & easy to clean
Application of aluminum window screens:
Residential and various constructions for window screen projects.
Specification:
| Mesh | Wire Dia (mm) | Width (mm) | Length (m) | Remarks |
| 14x14 | 0.360 | |||
| 18x14
18x15 18x16 |
0.210 | 200-2700 | 1-1000 | Length ≥400 m
needs to be stitched |
| 0.220 | ||||
| 0.230 | ||||
| 0.240 | ||||
| 0.250 | ||||
| OEM is available | ||||
| Payment Terms: | TT |
|---|---|
