| Model: | GDJB-III |
|---|---|
| Brand: | GOLD |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | 3 phase relay test s , Protection Relay Tes , Secondary Current In |
| Price: |
US $2300
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:22 Apr, 2021 |
GDJB-III
Specifications:
|
DC voltage output |
0~350V continuous adjustable, output capacity:960VA |
|
AC voltage output |
0~380V continuous adjustable, output capacity:400VA |
|
DC current output |
0~10A continuous adjustable, output capacity:80VA |
|
AC current output |
0~10A 0~100A,capacity:1000VA |
|
Volt ampere feature test |
Voltage 0~240V current 0~5A |
|
AC short circuit voltage analog output |
|
|
DC voltage selection output(it can be used as the operation power of static relay) |
OutputVoltage24V,48V,110V,220V,all the output current is 0.4A |
|
Device precision |
0.5 grade |
|
Joint action time test |
0~9999s |
|
Resolution |
1ms. |
|
Power supply |
AC220V+/-10%, 50Hz/60Hz; |
|
Environment temperature |
0-50 centigrade; |
|

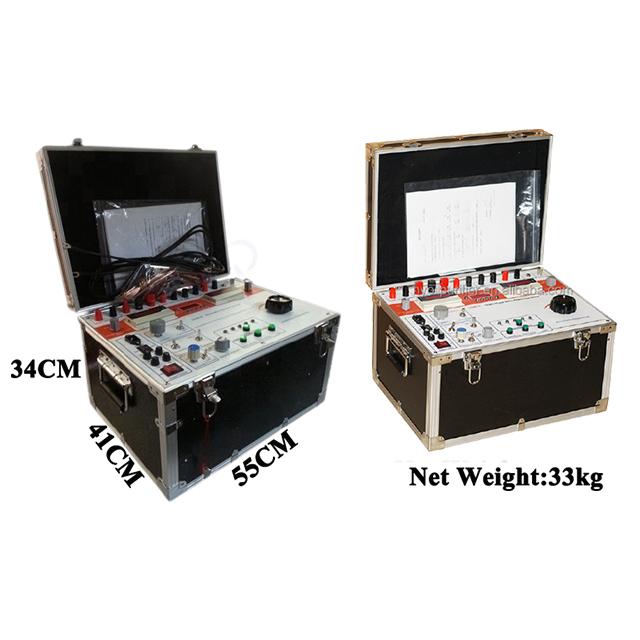

Size |
550mm*410mm*340mm |
|
Weight |
33kg |
Functions:
l DC voltage relay test;
l DC current relay test;
l AC voltage relay test;
l AC current relay test;
l High current injection;
l Time counter in relay test;
