| Model: | CBM-40 |
|---|---|
| Brand: | Handong |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | CBM spring lock brak , normal lock brake , robot arm fix brake |
| Price: |
US $400
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:12 Apr, 2021 |

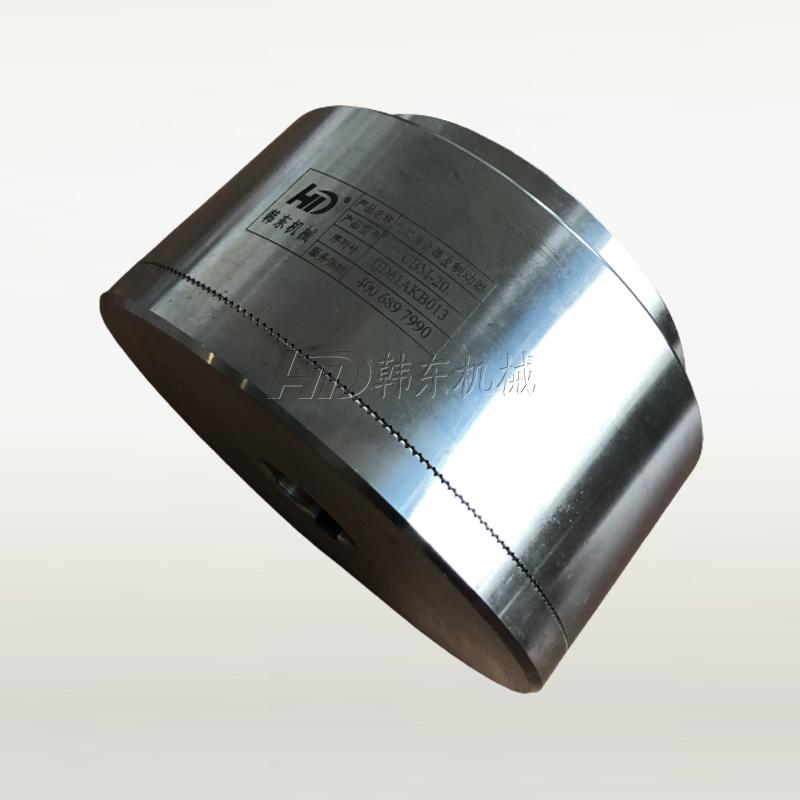

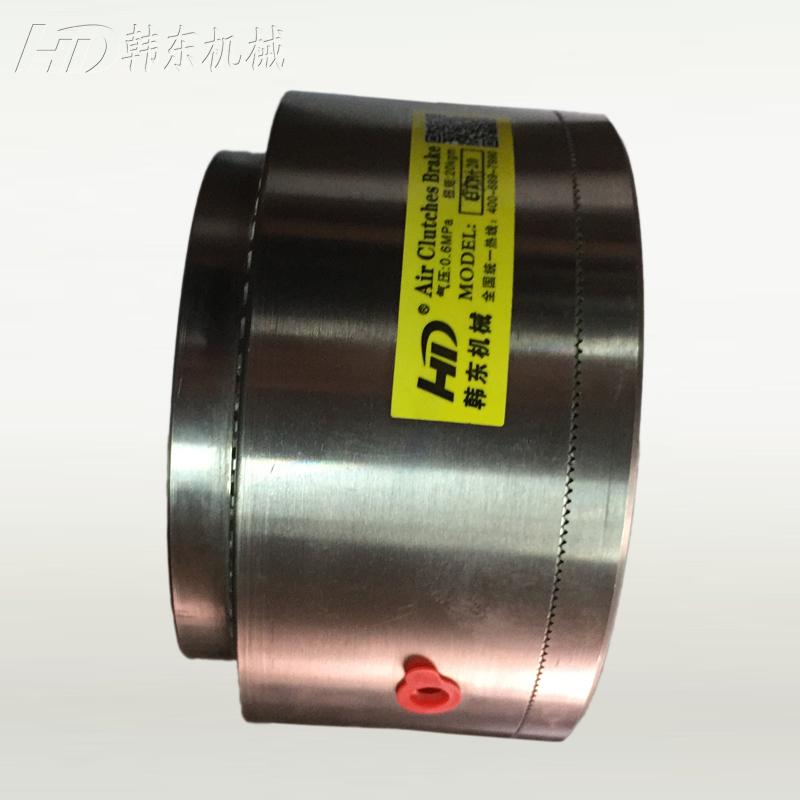

CBM spring engaged normal braking brake is locked by springs. Normally, braking springs compressed piston end tooth and hollow shaft tube end tooth, brake is in braking status. After supplying air pressure, piston moves towards and compresses braking springs in the direction of fixed base spline, both ends of tooth separated, brake released.
Handong made CBM spring engaged normal braking brake main characters:
1. Use two ends of tooth engagement for braking, not easy slippage, braking large torque and no damage.
2. Braking and releasing can be finished in constant, can reach exact orientation.
3. Two ends of tooth use special process technology, high strength, good abrasion and long service life.
4. Normal braking design.
Handong made CBM spring engaged normal braking brake application:
Handong made CBM spring engaged normal braking brake is widely applied, such as filling machines, agricultural machines, robotics, container cranes, food technology, ropeways, printing machines, aerospace, textile machines, handling system, robot arm, mechanical arm, joint, arthrosis, aerospace, entry control, marine, packaging machines, extruders, medical technology, wind turbines, amusement rides, mobile machine, machine tools, handling system, test benches, fast-tool application, hybrid systems, pumps and compressors and so on.
