AV-160D 3D Vibration Meter 3-Axis Piezoelectric accelerometer Vibration Sensor

Model:AV-160D
Brand:AERMANDA
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Physical Measuring Meter
Label:3D Vibration Meter , Vibration Analyzer , Vibration detector
Price: US $374 / Piece
Min. Order:1 Piece
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Aermanda Technology Co.,Ltd.

Biz MemberGuang Dong - China
Live Chat:
Last Online:16 May, 2024

Product Description

AV-160D 3D Vibration Meter 3-Axis Piezoelectric accelerometer Vibration Sensor



Product Description



The 3D Vibration Tester Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.



Product Feature



* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance,misalignment and other mechanical faults in rotating machines.

* Specially designed for easy on site vibration measurement of all rotating machinery forquality control, commissioning, and predictive maintenance purposes.

* Individual high quality accelerometer for accurate and repeatable measurements.

* Wide frequency range (10Hz~10kHz) in acceleration mode.

* AC output socket for headphones and recording.

* Optional headphones for use as electronic stethoscope.

* Bearing condition monitoring function.

* Use USB data output with connection PC.

* Provide Bluetooth data output choice.



Product Parameters



Vibration Sensor

3-Axis Piezoelectric accelerometer

Axial Vibration

Any one axis of X ,Y,Z or 3 axes of XYZ

Accuracy

±5%+2 digits

Measurement Range

Displacement :  0.001-4.000 mm  equivalent peak-peak / 0.04-160.0 mil

Velocity :              0.1-400.0 mm/s  true RMS / 0.004-16.00 inch/s

Acceleration :      0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g

Frequency Range

Displacement : 10Hz. ~ 1kHz.

Velocity :10Hz. ~1kHz.

Acceleration: 10Hz. ~ 10kHz.

Operating Conditions

Temperature : 0-50 ℃

Humidity : below 95% RH

Analogue Output

AC output 0~2.0V peak full scale (load resistance: above 10k)

Power Supply

4x1.5vAAA (UM-4) Battery

Size

140x70x30mm

Weight

130g (Not including Batteries)











Standard Accessories

Main Unit



Magnetic suction seat

Probe (cone)/Probe (spherical)

Portable box

Brochures

Piezoelectric sensor

Carrying Case

Operation Manual



Optional Accessories



Headset

USB data output

RS-232 data output

Bluetooth™ data output


Product Image

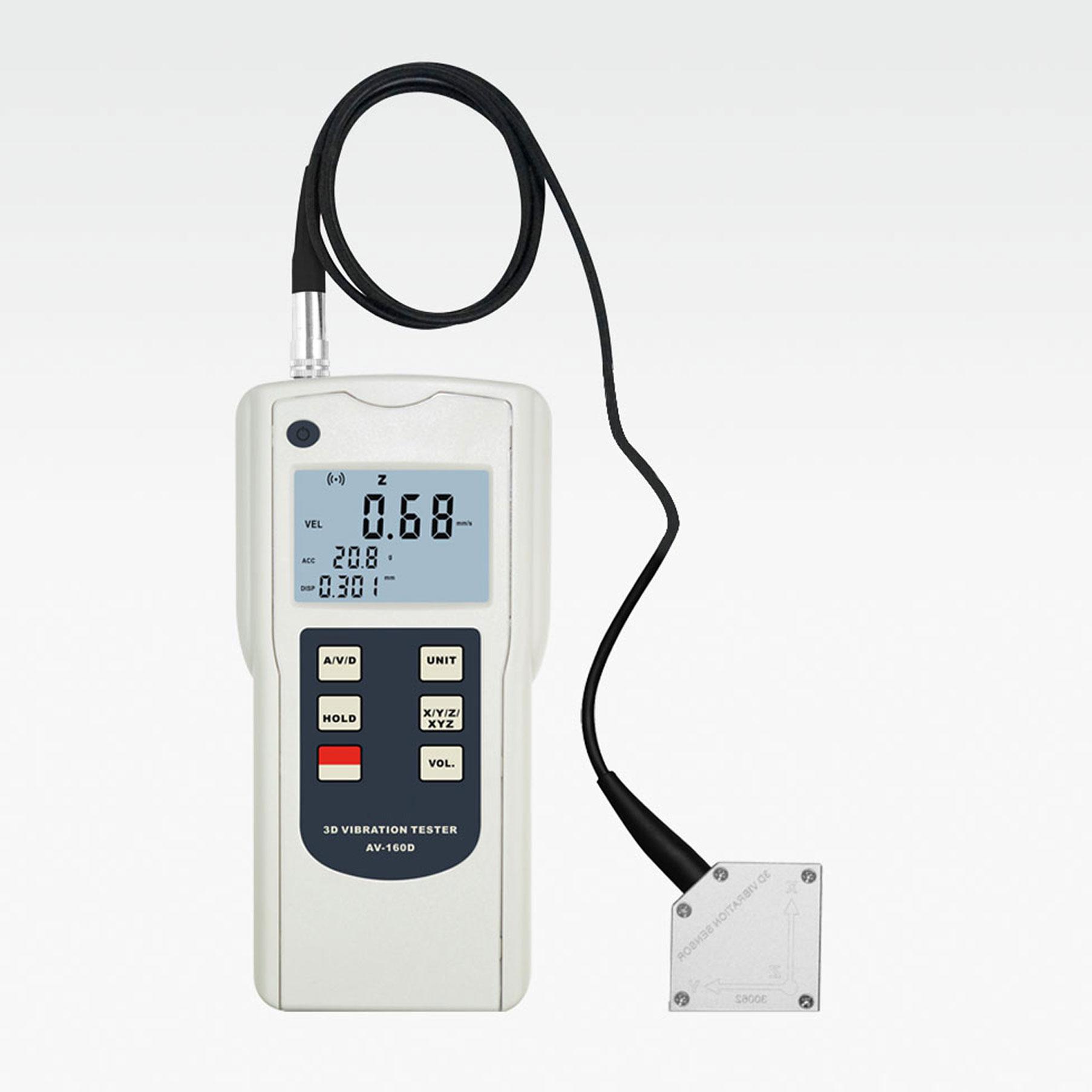

AV-160D 3D Vibration Meter 3-Axis Piezoelectric accelerometer Vibration Sensor 1
Img 1
AV-160D 3D Vibration Meter 3-Axis Piezoelectric accelerometer Vibration Sensor 2
Img 2
AV-160D 3D Vibration Meter 3-Axis Piezoelectric accelerometer Vibration Sensor 3
Img 3
AV-160D 3D Vibration Meter 3-Axis Piezoelectric accelerometer Vibration Sensor 4
Img 4
AV-160D 3D Vibration Meter 3-Axis Piezoelectric accelerometer Vibration Sensor 5
Img 5
