| Model: | VM-6360 |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Physical Measuring Meter |
| Label: | Vibration Meter , Vibrometer , Vibration Gauge |
| Price: |
US $210
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:18 Oct, 2023 |
Features
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Provide USB/RS-232 data output to connect with PC choice.
* Provide Bluetooth data output choice.
| ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
| Quality Rank | Rev(rpm) | H:high of shaft(mm)
Maximum vibration velocity rms(mm/s) |
||
| 80<H<132 | 132<H<225 | 225<H<400 | ||
| Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
| Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
| 1800~3600 | 1.12 | 1.8 | 2.8 | |
| Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
| 1800~3600 | 0.71 | 1.12 | 1.8 | |
| Sensor | Piezoelectric Transducer | |
| Measuring Range | Acceleration | 0.1~400m/s⊃2;Equivalent Park |
| Velocity | 0.01~400mm/s True RMS | |
| Displacement | 0.001~4.0mm Equivalent Peak-peak | |
| Frequency Range | Acceleration | 10Hz~10kHz |
| Velocity | 10Hz~1kHz | |
| Displacement | 10Hz~1kHz | |
| Accuracy | 5% of Reading+2 digits | |
| Operating Conditions | Temperature | 0~50ºC |
| Humidity | <90%RH | |
| Power Supply | 4x1.5V AAA(UM-4)Battery | |
| Dimensions | 124x62x30mm | |
| Weight | 120g(Not Including Batteries) | |

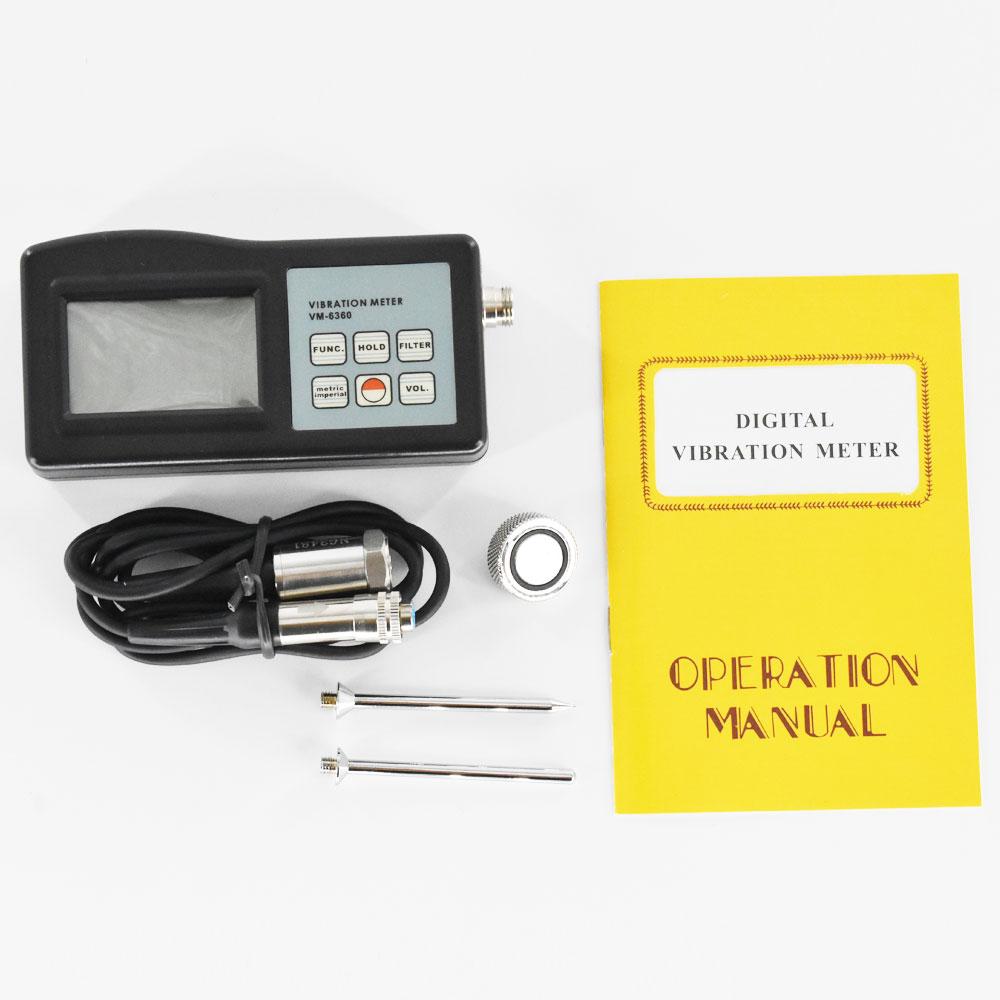

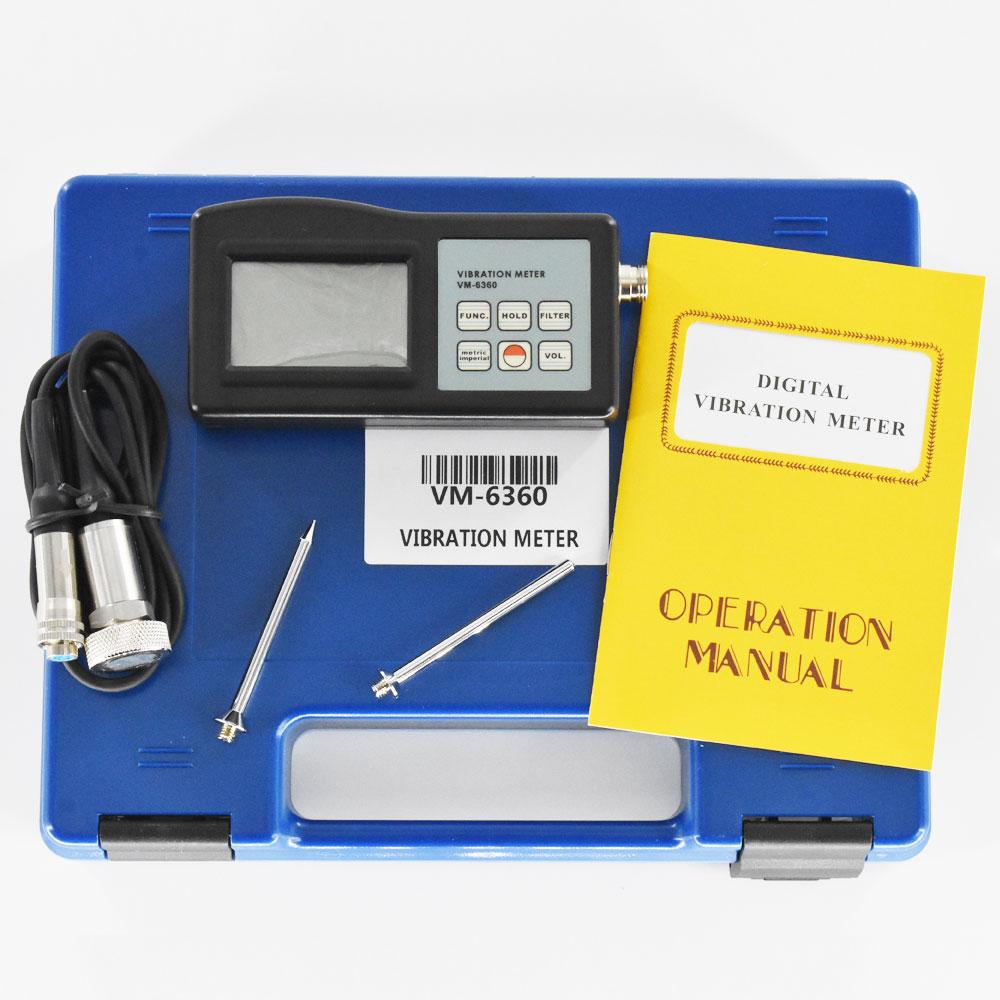

| Standard Accessories | Main Unit | |
| Piezoelectric Transducer | ||
| Powerful Rare Earth Magnet | ||
| Probe(Cone)&Probe(Spherical) | ||
| Carrying Case(B04) | ||
| Manual Book | ||
| Optional Accessories | Headset | |
| RS-232C Data Cable with Software | ||
| Bluetooth Data Adapter with Software | ||
