| Model: | Air to Water |
|---|---|
| Brand: | Leomon Technology |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Water Heater |
| Label: | Air to Water , Heat Pumps , Air Source |
| Price: |
US $500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Mar, 2021 |

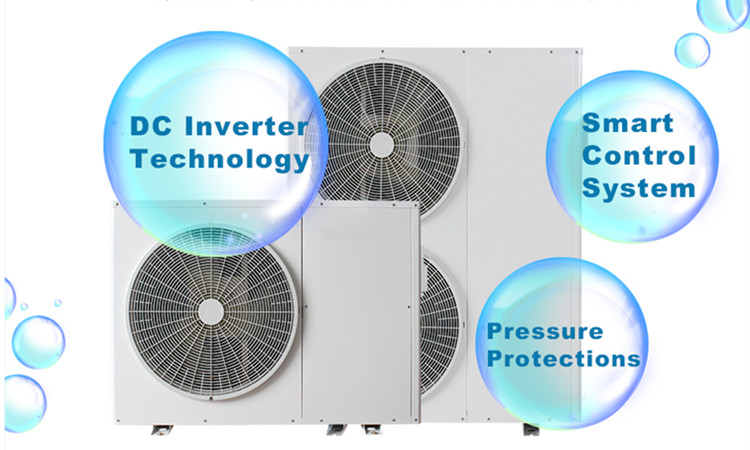

The air-to-water heat pump can provide effective heating and cooling for your home or commercial building. It can enable you to enjoy a comfortable indoor temperature and provide clean hot water throughout the year.
The air-to-water heat pump provides power for 75% of the energy and 25% of the electricity extracted from the air. This set of equipment operates very efficiently, and it is very energy-saving and environmentally friendly.
The air-to-water heat pump is highly compatible. It can be used in combination with floor heating or low-temperature radiators, and it can also be used with solar water heaters.
Air to Water Heat Pump Features:
1. EC fan motor, no noise
2. The world-famous scroll compressor is highly efficient and stable.
3. R410a refrigerant, environmental protection, no ozone depletion
4. The intelligent controller can be adjusted and the microprocessor can be adjusted quickly.
5. PVC titanium alloy heat exchanger has sufficient corrosion resistance and is more durable.
6. With overheating protection, high pressure protection, high temperature protection, low pressure protection and other protection functions
7. Water heat exchanger: Circulating heating type is shell-and-tube type and direct-tube type. Heating model.
8. Copper pipes with inner grooves can improve efficiency.
9. Four-way valve ensures reliable defrosting function
Warranty:
1. CE, CB, RoHS, Conform to EN14511-2:2011 test standard, ISO9001, ISO14001.
2. 1 year warranty
3.1% spare parts are repaired free of charge.
Leomon Technology Service:
Leomon Technology provides customized services. We can design and produce Air to Water Heat Pumps according to customers' special requirements.
Air to Water Heat Pump Specifications:
| Model | LM050V2 |
| Power supply |
220-240/50/1 V/Hz/Ph |
|
Max. heating capacity(1) |
16.5KW |
| C.O.P(1) | 4.48W/W |
|
Heating capacity Min/Max.(1) |
7.59 /16.5KW |
|
Heating power input Min/Max.(1) |
1353/3683W |
| COP Min./Max.(1) | 4.48/5.6W/W |
| Max. heating capacity(2) | 15.5KW |
| C.O.P (2) | 3.58W/W |
|
Heating capacity Min/Max.(2) |
7.13 /15.51KW |
|
Heating power input Min/Max.(2) |
1676/4328W |
| COP Min./Max.(2) | 3.58/4.26WW |
| Max. cooling capacity(3) | 14.7KW |
| E.E.R(3) | 3.48W/W |
| Max. cooling capacity(3) | 6.78/14.73KW |
|
Cooling power input Min/Max.(3) |
1625/4953W |
| E.E.R Min./Max. (3) | 2.97/4.17W/W |
| Max. cooling capacity(4) | 11.6KW |
| E.E.R(4) | 2.61W/W |
| Max. cooling capacity(4) | 5.35/11.63KW |
|
Cooling power input Min/Max.(4) |
1458/4601W |
| E.E.R Min./Max. (4) | 2.53/3.67W/W |
| Rate current | 17.6A |
| Max current | 25.55A |
| Compressor | Twin rotary-1 |
| Fan Quantity | 2Pcs |
| Fan Airflow | 5000m3/h |
| Fan Rated power | 200W |
|
Water side heat exchanger |
Plate heat exchanger |
| Water pressure drop | 23KPA |
| Piping connection | G1"Inch |
|
Allowable water flow Min./Rated /Max |
0.49/0.79/1.31L/S |
| Noise level | 62dB(A) |
|
Net Dimension (L*D*H) |
1100*490*1350 mm |
| Net Weight | 124KG |
