| Model: | Heat Pump |
|---|---|
| Brand: | Leomon Technology |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Water Heater |
| Label: | Air Source , Hotel Swimming Pool , Heat Pump |
| Price: |
US $500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Mar, 2021 |

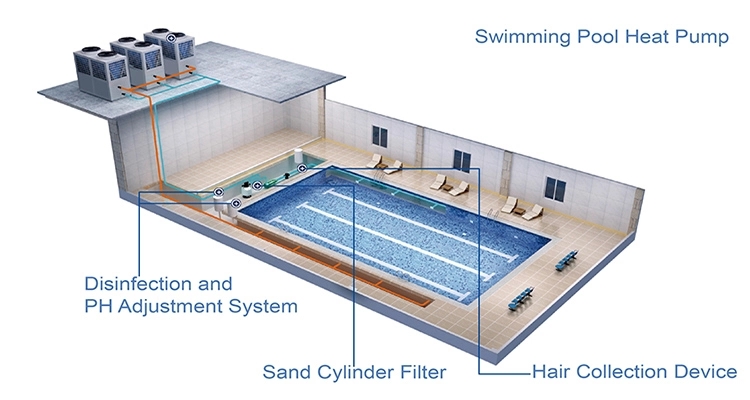

The air source hotel swimming pool heat pump is a heating device that absorbs heat from the surrounding air and transfers it to the hotel indoor swimming pool. The heat pump has two functions: constant temperature + dehumidification. The energy saving effect can reach 75%.
The air source hotel swimming pool heat pump can provide service for the hotel swimming pool throughout the year without being affected by the external environment. It can cool pool water in summer and heat pool water in winter.
Air source hotel swimming pool heat pump features:
1. Stainless steel shell, anti-corrosion and durable
2. Compact structure, easy to disassemble and assemble
3. R410a or R407c refrigerant, environmental protection does not consume ozone
4. Smart controller and LED touch screen controller
5. Automatic defrost function (with a four-way valve inside)
6. Various protection measures to protect compressors and heat exchangers, such as antifreeze protection, water flow protection, over-high pressure protection, over-low pressure protection and insufficient water flow protection
7. Air exchanger with hydrophilic coating (finned coil)
8. Copeland scroll compressor, high efficiency, low noise, long life
9. Using EVI compressor, automatic temperature control
10. The minimum working temperature can be as low as -25℃
Warranty:
1. CE, CB, RoHS, Conform to EN14511-2:2011 test standard
2. 1 year warranty
3.1% spare parts are repaired free of charge.
Leomon Technology can design and produce Swimming Pool Heater according to customers' special requirements.
Air Source Hotel Swimming Pool Heat Pump Specifications:
| Model | LMP-03 |
| Rated heating capacity | 13KW |
| Rated heating capacity | 44369BTU |
| Rated input power | 2.46KW |
| Rated heating input current | 9.8A |
| COP | 5.2KW |
| Max running current | 17.1/11A |
| Power source | 220V/380/50Hz |
| Noise level | 45dB(A) |
| Width | 1000mm |
| Depth | 350mm |
| Height | 620 |
| Weight | 110kg |
| Water temperature control precision | ±2℃ |
| Working environment | -15℃~43℃ |
| Throttle type | Electronic expansion valves |
| Refrigerant Type | R417A, R407C,R410A |
| Compressor Brand /type | hitachi |
| Compressor Qty | 1Pcs |
| Heat source side Heat exchange type | Efficient finned tube exchanger |
| Heat source side Motor power fan type | Axial flow fan |
| Heat source side Motor power | 0.1KW |
| Hot water side Heat exchanger type | High titanium tube heat exchanger |
| Hot water side Water flow | 4.40 m3/h |
| Hot water side Water pressure drop | 20 KPA |
| Hot water side Connect pipe size | 1 and 0.5 Inch |
| Hot water side Water size max work pressure | 600KPA |
| Payment Terms: | TT / LC / DP / DA |
|---|---|
