Rotating Working Table  Screen Printer & Sevro Mechanical Arm

Model:LC-RS500/4
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Rotating printer , sevor screen printer , mechanical arm
Price: US $5999 / UNIT
Min. Order:1 UNIT
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:17 Aug, 2022

Product Description

Product description:

 The machine is equipped with the functions of product conveying, silk screen printing, mechanical arm unloading, drying and other functions, which can be customized according to the requirment of customers.


  The worktable of the turntable screen printing machine is generally controlled by a precision divider. There are different numbers of stations such as 4-6-8-10. The diameter of the turntable is determined according to the size of the workpiece. With the development of the market, the rotary screen printing machine has entered a booming stage.



 Structure:

Working table

Rotating working table

Diameter : 500mm

Working  place Size:

4 unit/200*300mm

Actions Up-down of screen plate
To be printed Plain objects
Squeegee stroke    Adjust the Limited switch
Squeegee and screen plate control High precision guide shaft



Usage and characters:

Function
  • Rotating table to facilitate the production of  platics;
  • Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
  •  Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
  • Screen forme Clamping device free to adjust to fit different sizes of screen;
  • Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
  •  Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
  • Squeegee pressure can be individually adjusted to fit any high-precision screen printing.
  • Microcomputer program control operations;
  • 4-Digit auto counter; to facilitate the measurement of production efficiency.

Application

The machine panel, plastic parts, Paper,  furniture industry, glass industry, circuit board industry, film, wooden case.



Parameters:

·  working station : 4 position

Max printing thickness: 260 mm;

Dimeter of working tabel : 500mm

·  Dimension of working table: 200*300mm;

·  Max printing areas: 150*250mm;

·  Max printing speed: 1200Pcs/H;

·  Max frame dimension: 250*450mm;

·  Compress air: 5-7 bar;





·  Stroke of cylinder up and down:160mm;

·  Stroke of Squeegee: 500mm.

·  Power supply: 110V-220V;

· Compress air: 5-7Bar;

· Outer dimension: 1100*900*1630mm;

· Net weight: 248kg;

· Package dimension: 1120*1000*1740mm;

· Gross weight: 310kg;

· CBM: 1.827







Product Image

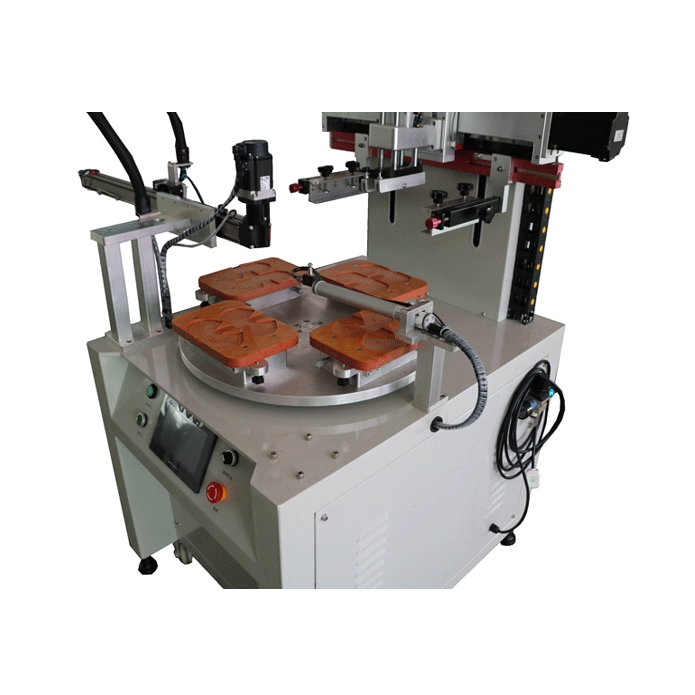

 Rotating Working Table  Screen Printer & Sevro Mechanical Arm 1
Img 1
 Rotating Working Table  Screen Printer & Sevro Mechanical Arm 2
Img 2
 Rotating Working Table  Screen Printer & Sevro Mechanical Arm 3
Img 3
 Rotating Working Table  Screen Printer & Sevro Mechanical Arm 4
Img 4
 Rotating Working Table  Screen Printer & Sevro Mechanical Arm 5
Img 5
