China Supplier 16 Pin Small 16x2 Display 1602A LCD Module
1602 lcd module
| Diagonal Screen Size | 1602 |
| Color |
Yellow-green, orange, white, red, green, blue for choose |
| Model number | GM1602A |
| Resolutions |
16x2 |
| Outline dimension | 80*36*11MM |
| Active area | 56.2*9.4MM |
| viewing direction | 6 o'clock |
| Controller | SPLC780D |
| voltage | 3.3V,5V optional |
| Operating temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Pins | 16P |

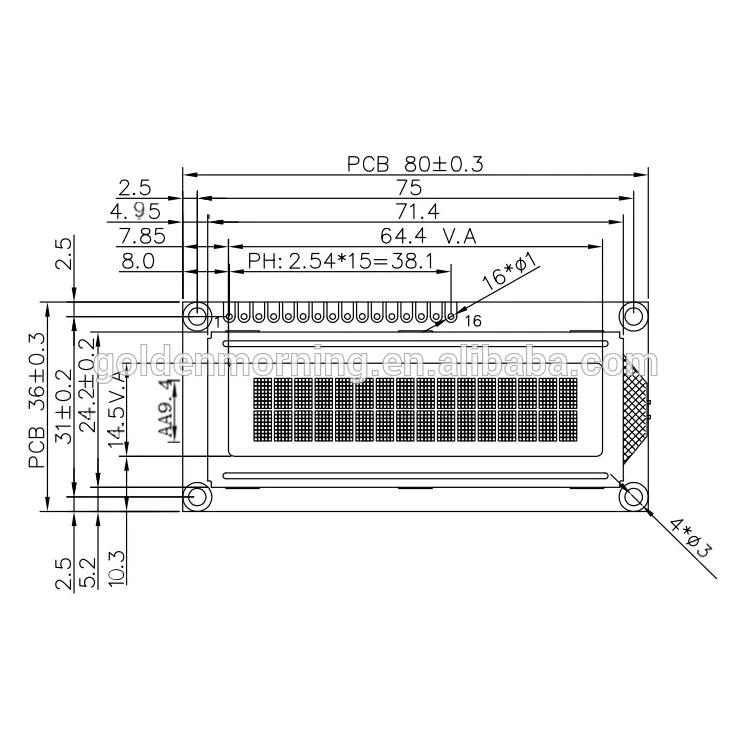

Drawing(1602 lcd module)
Pin Assignment(1602 lcd module,Pins:16P)
|
No. |
Symbol |
Function |
|
1 |
VSS |
Ground (0V) |
|
2 |
VDD |
Supply Voltage for Logic (+5.0V ) |
|
3 |
VO |
Contrast Adjustment |
|
4 |
RS |
Data/Instruction Select |
|
5 |
R/W |
Read/Write Select |
|
6 |
E |
Enable Signal |
|
7 |
DB0 |
Data Bus |
|
8 |
DB1 |
Data Bus |
|
9 |
DB2 |
Data Bus |
|
10 |
DB3 |
Data Bus |
|
11 |
DB4 |
Data Bus |
|
12 |
DB5 |
Data Bus |
|
13 |
DB6 |
Data Bus |
|
14 |
DB7 |
Data Bus |
|
15 |
LED_A |
LED Power Supply + (5.0V) |
|
16 |
LED_K |
LED Power Supply - (0V) |
