| Model: | GME12864-107 |
|---|---|
| Brand: | GoldenMorning |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | - |
| Price: |
US $9.7
/ pc
|
| Min. Order: | 2 pc |
| Live Chat: |  | Last Online:30 Oct, 2020 |
Soldering 8 bit Parallel, 4-wire SPI, I2C 128x64 SSD1309 Display Screen OLED 2.42

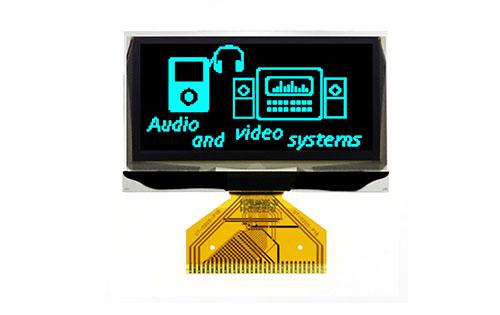

2.42" blue oled display
| Diagonal Screen Size | 2.42inch |
| Color | Mono(Blue) |
| Model number | GME12864-107 |
| Resolutions |
128 × 64 |
| Outline dimension | 60.5 x 31.3 x 2.027mm |
| Active area | 55.01x 27.49mm |
| Pixel pitch | 0.43 x 0.43 mm |
| Pixel size | 0.4 x 0.4 mm |
| Driver IC | SSD1309 |
| Voltage | 3-5V |
| Interface | 8 bit Parallel, 4-wire SPI, I2C |
| Operating temperature | -40~70℃ |
| Storge Temperature | -40~85℃ |
| Assemble | Soldering |
| Pins | 31P |
Drawing(2.42" oled)

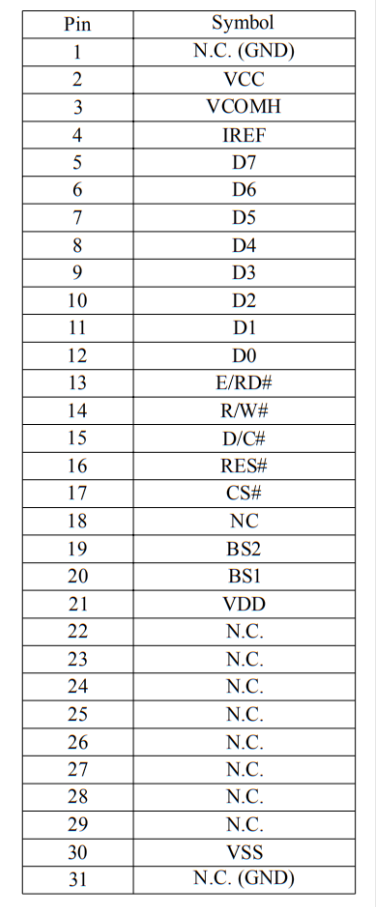

Pin Assignment(2.42oled,Pins:31P)
