Flexible Paddle Massaged PUR hopper loss-in-weight feeder

Model:FP series
Brand:PEGE
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Automation & Control System
Label:flexible feeder , loss in weight feed , gravimetric feeder
Price: US $15000 / pc
Min. Order:2 pc
Inquire Now Add to Basket

Member Information

Detail

NANJING PEGE TECHNO MACHINE CO., LTD

Free MemberJiang Su - China
Live Chat:
Last Online:23 Aug, 2021

Product Description

Flexible Paddle Massaged PUR hopper loss-in-weight feeder

Company Profile

Nanjing Pege Techno Machine Co., Ltd has been working with bulk ingredients feeding, weighing for more than 10 years. We have gained knowledge and have become a reliable feeder supplier for various customers.

Whether for use in the plastics, chemical, pharmaceutical, food, pet food, detergent, ceramics, glass or construction material industries – the customer and his requirements are most important. Before we submit a quotation, we analyze your ingredient and work with you to determine your needs. Continuing this with our 10 years of experience we select the best device from our extensive product line which can feed any conceivable ingredient. All our machines can be further modified to fit the individual needs of our customers.

Besides extensive process advice we have many services such as feeding trials in our test labs, start-ups and operator training on site or at our training center.

We also offer maintenance, customized screws, spare parts and repairs as parts of our comprehensive after-sales services at reasonable prices.

Principle
In loss-in-weight feeding, the entire feeder, hopper and material are continuously weighed. As the feeder discharges material, the rate of decline in system weight is computed, and feeder speed is adjusted to maintain the desired (set) rate.

Applications

Resin Particles, Resin Powder, Calcium Carbonate, Glass fibers

Talcum Powder, Titanium White Powder

Carbon Black, Flame Retardant Antioxidant

Features

Suitable for all-purpose bulk material, especially for the powder material with humidity and low flowability.

The cantilever sling-type weighing scale supports the storage hopper, which has the characteristics of vibration reduction and anti-level interference. This design can effectively shield the non-weight value interference from the vibrator and measure the flow of the system more accurately.

No bridging thanks to straight walled hopper.

Gentle feed capability by paddling flexible hopper with external agitation.

Easy to disassemble and to clean, convenient for maintenance.

No direct touch between stirring unit and material ensures no damage on the materials.

Improve material flowability, optimize dynamic loadings of the screws, to ensure stable and accurate flow rate.

Arch breaker inside of the machine can ensure efficient weighing feeding even the humidity rate in the materials reaches to 20%

Specifications



Parameters

Model

FP-48

FP-63

FP-76

FP-89

Capacity range

20-100kg/h

50-300kg/h

100-600kg/h

200-1200kg/h

Volume

40L

100L

200L

250L

Range

50kg

100kg

250kg

300kg

Net Weight

86kg

140kg

170kg

200kg

Dimension

550x340x680

680x430x900

790x480x1050

820x490x1150

Power

AC380V 3ph

Feeding Motor 0.25kw

Stirring Motor 0.15kw

AC380V 3ph

Feeding Motor 0.37kw

Stirring Motor 0.2kw

AC380V 3ph

Feeding Motor 0.55kw

Stirring Motor 0.4kw

AC380V 3ph

Feeding Motor 0.55kw

Stirring Motor 0.4kw

Output method

Spring Screw or Solid Single Screw

Spring Screw or Solid Single Screw

Spring Screw or Solid Single Screw

Spring Screw or Solid Single Screw

Dynamic accuracy

±0.5%

±0.5%

±0.5%

±0.5%

Resolution

1/100000

1/100000

1/100000

1/100000

Discharge tube

Φ48x3

Φ63x3

Φ76x3

Φ89x3



FAQs on loss in weight feeders



  1. What kinds of feeders are included in the loss-in-weight feeder series?

Our feeding product range includes micro-type loss in weight feeder, single screw feeder, twin screw feeder, vibratory tray feeder, Paddle-massaged flexible PUR hopper feeder and liquid loss in weight feeder.



  1. What is the lead time for the machine?

Generally, one group of 3 sets feeders production time will be about 60 days from the receipt of down payment.



  1. How do the gravimetric loss-in-weight feeder packed and shipped?

The loss in weight feeders are well packed and fastened in the plywood carton and then delivered to the seaport for sea transportation to the countries all over the world.


Payment Terms:T/T 30% in advance, balance paid before shipping
Lead Time:60 days

Product Image

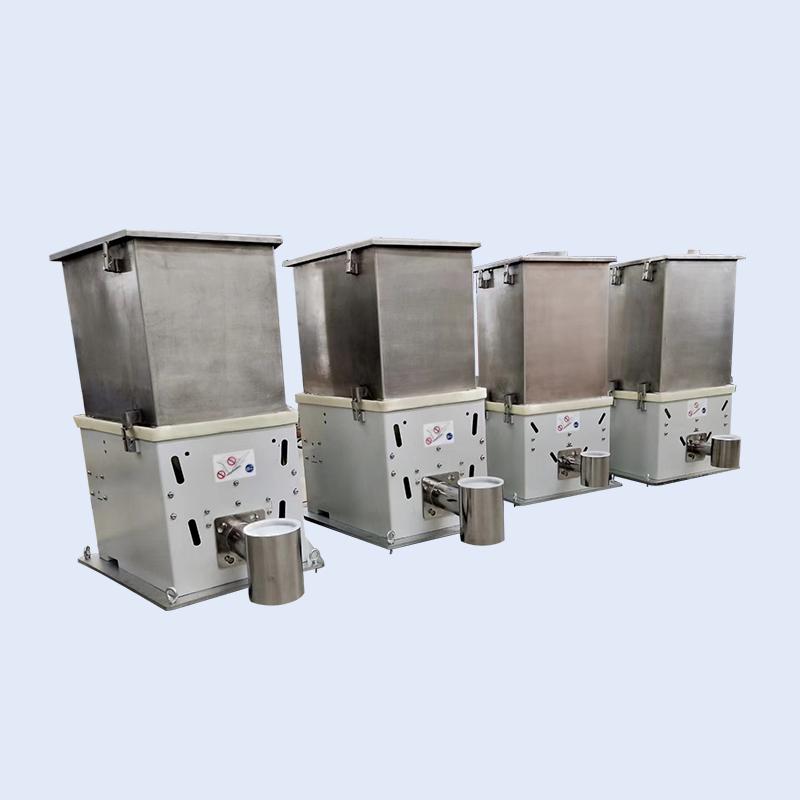

Flexible Paddle Massaged PUR hopper loss-in-weight feeder 1
Img 1

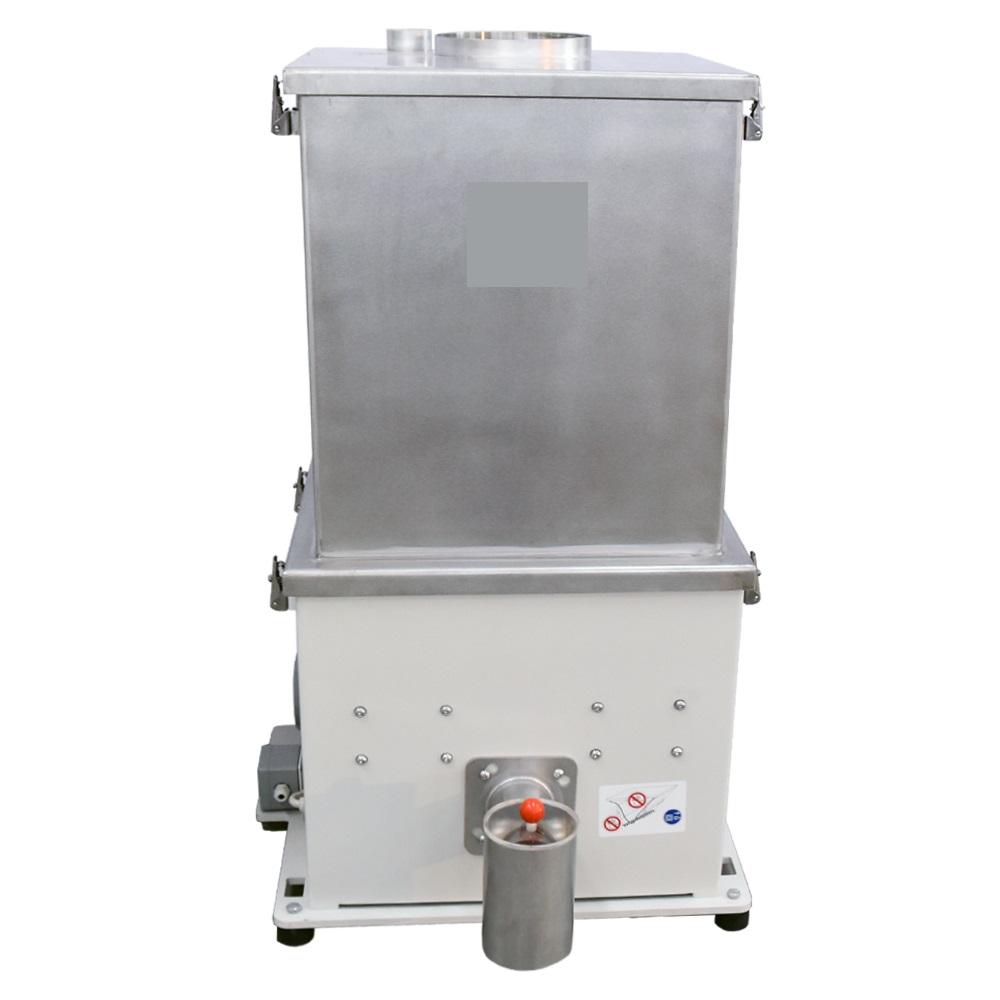

Flexible Paddle Massaged PUR hopper loss-in-weight feeder 2
Img 2

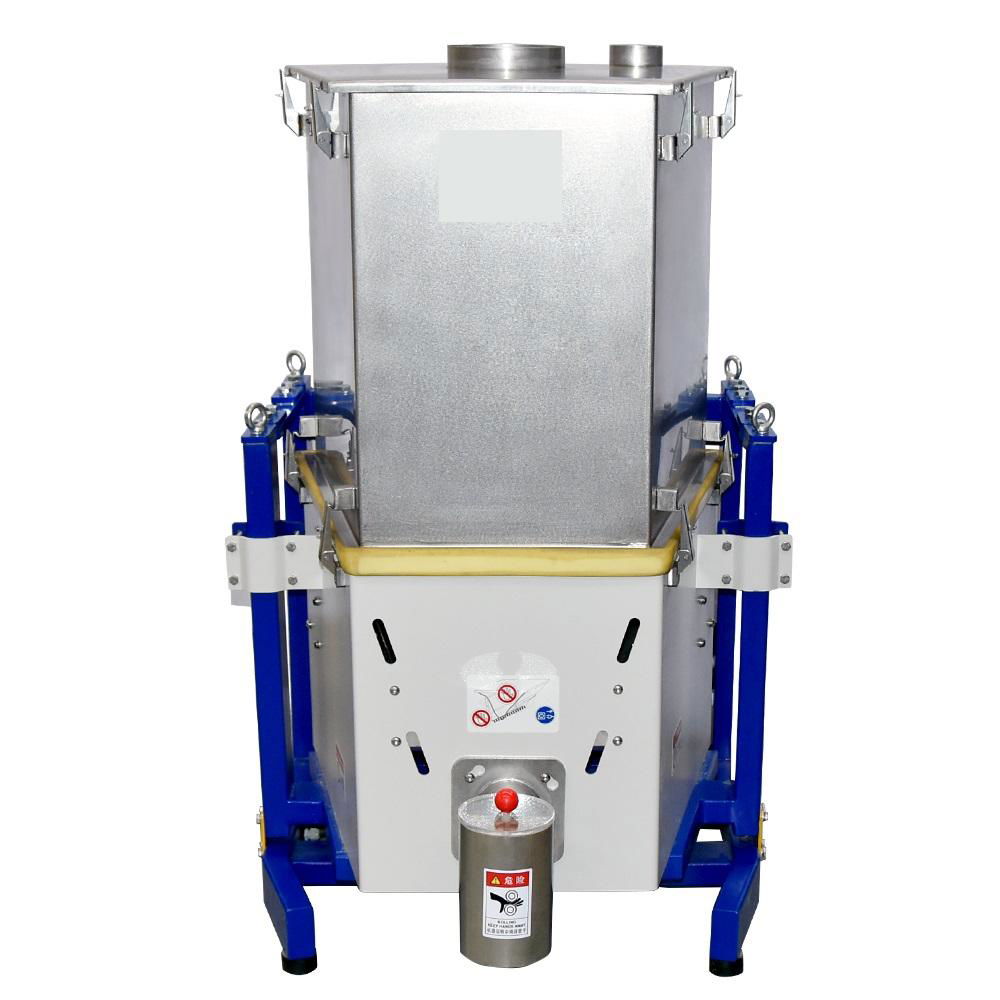

Flexible Paddle Massaged PUR hopper loss-in-weight feeder 3
Img 3

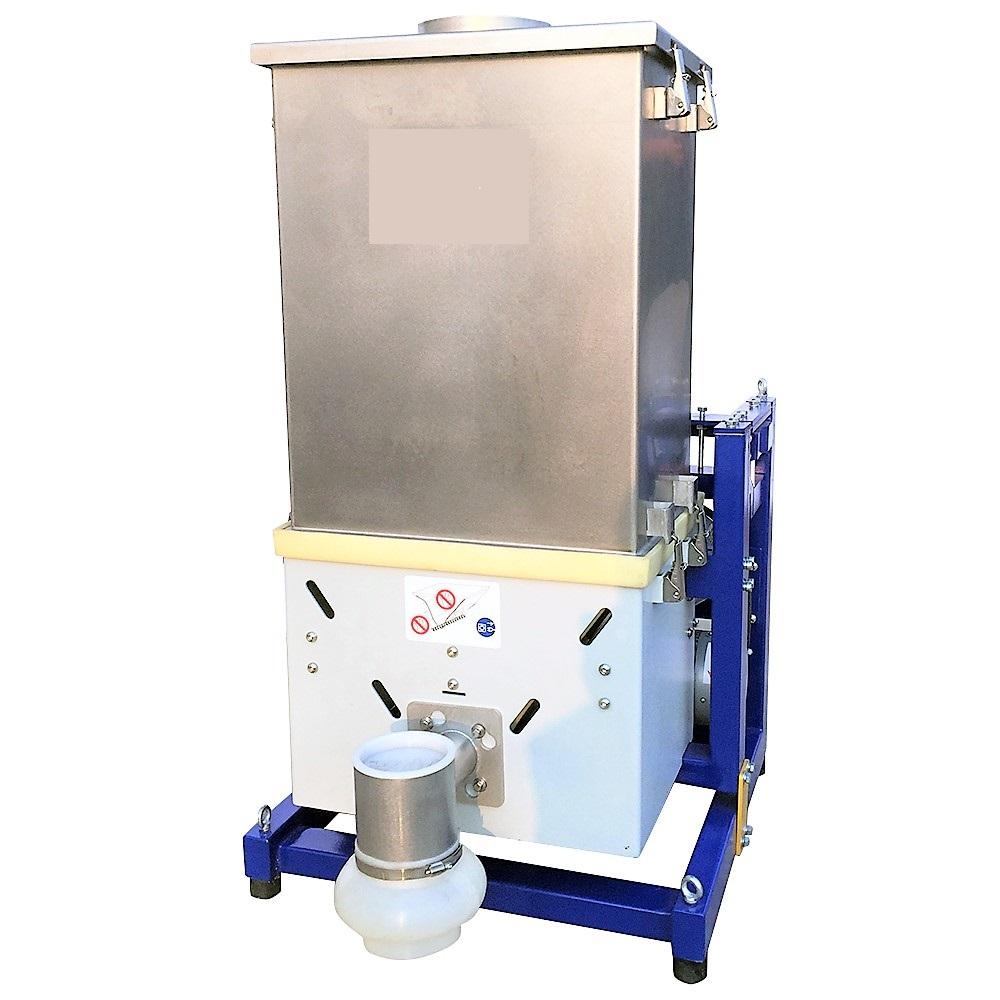

Flexible Paddle Massaged PUR hopper loss-in-weight feeder 4
