Ozone Aging Test Chamber for Rubber & Plastic Test equipemnt

Model:YOT-150
Brand:Yuanyao
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Test Bench
Label:Ozone Aging Test , Rubber test , Plastic Test
Price: US $1000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Guangdong Yuanyao Test Equipment Co., Ltd

Free MemberGuang Dong - China
Live Chat:
Last Online:31 Aug, 2020

Product Description

Ozone Test Chamber for Rubber & Plastic

1 Sample rotating speed: 1 time/min
2 Stainless steel
3 Ozone analyzer: Impoted
4 High quality and resonable price


Description

Ozone Test Chamber is a climate modeling equipments, suitable for testing compatibility of unvulcanized rubber and other products under non-direct light, exposing to ozone-containing air and certain environment. It can be applied to scientific research stitutes and plants to do aging test for sample.

Packing and Delivery
Packing: Wooden case, suitable for a long distance shipment
Delivery: In 15-20 working days after order confirmation

Specification
1. A certain amount of air processed
2.12 month warranty
3. Efficient ozone generator ozone gas
4. High qualty and resonable price

Features
1.5.5'' Touch panel controller, simple and friendly menu.
2. Unprecedented uniform exposure of all specimens using a rotating carousel.
3. Closed-loop servo control ensures highly stable ozone concentration levels.
4. Integrated ozone destructor with built-in safety interlocks
5. Ozone resistant wetted materials
6. With castors
7 Best after sales service: One year free parts maintenance.

Detailed Data

Model YOT-080 YOT-150 YOT-1000
Inside dimensions W*H*D (cm) 40*50*40 50*60*50 100*100*100
Outside dimensions W*H*D (cm) 90*140*95 100*150*105 150*190*155
Temperature range RT~80ºC
Temperature fluctuation ±0.5ºC
Temperature uniformity ±1.5ºC; Empty load, 30 mins after stanlization
Resolution 0.01ºC
Ozone concentration 0~1000PPHM, adjustable (Optional: 0~500ppm non-standard
ozone control precision ±10%
Ozone production mode Ozonator
Sample frame Static and Dynamic fixtures
Sample frame speed 360° rotation (1 circle/minute
Material SUS#304 Stainless steel for inner chamber, cold rolled sheet + powder coating for external chamber
Insulation PU
Circulation system Cooling fan
Heating system SUS# stainless steel high speed heater
Controlling system Digital electrinic indicator + SSR+ PID
Refrigeration system compressor + Fin type evaporator + air/water cooling system
Ozone concentration analyzer Imported ozone concentration analyzer
Ozone generator Silent discharge ozone generator
Other components 1. Muti-layer vacuum glass obvervation window
2. Controlling status indicator lamp 3. Chamber light
Safety protection device 1. Over-heat protection 2. phase sequence protection 3. overload protection
Power supply AC 1ψ220V; 3ψ380V 60/50Hz
Customization service Non-standard or special requirements are all welcome



Company Introduce




Product Package



Customers Visit Us



Production Process


Product Image

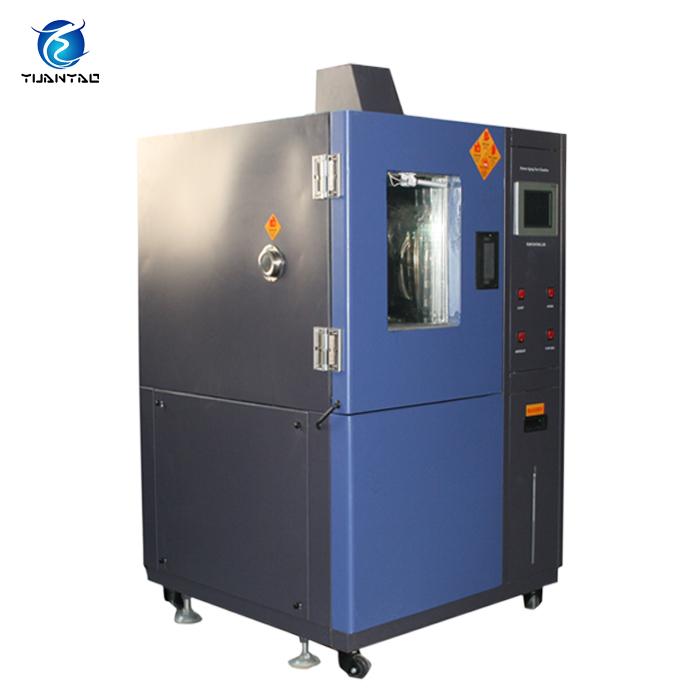

Ozone Aging Test Chamber for Rubber & Plastic Test equipemnt 1
Img 1

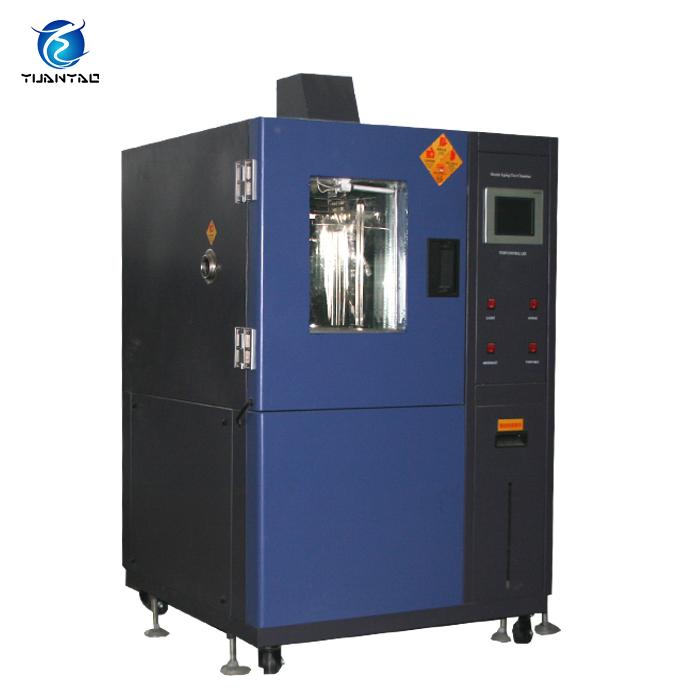

Ozone Aging Test Chamber for Rubber & Plastic Test equipemnt 2
