Industrial High Temperature Precision Hot Air Cycle Drying Test Oven

Model:YPO-720
Brand:Yuanyao
Origin:-
Category:Electronics & Electricity / Electronic Instrument / Test Bench
Label:Drying Test Oven , High Temperature , drying oven
Price: US $1000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Guangdong Yuanyao Test Equipment Co., Ltd

Free MemberGuang Dong - China
Live Chat:
Last Online:31 Aug, 2020

Product Description

Industrial High Temperature Precision Hot Air Cycle Drying Test Oven



Brief Introduction & Main application:
Industrial High Temperature Precision Hot Air Cycle Drying Test Oven is widely used to test materials resistance performance in high temperature test condition. It is widely applied to Circuit boards, electronic component, photoelectric device, electroplating metal, plastic chemical industry, printing industry, processing coating, ceramic glass and transformer, inductance coil, motor coil baking, drying, aging, etc.


Main Features:

1. Microcomputer electronic digital control, precision & reliability.

2. High temperature endurance & non-aging.

3. Observation view window, easy operation.

4. Forced circulation air, the temperature rise fast, even distribution.

5. PID control, double overheating protection, safety and reliability.

6. Two groups of moving plates can be adjusted height. 9 Best after sales service: One year free parts warranty service.

7. Meet international test standards.

8. Customization is available & welcomed.


Technical parameters:

Model YPO-072 YPO-270 YPO-480 YPO-600 YPO-720 YPO-1000
Inner chamber size W×H×D(cm) 40×45×40 60×90×50 80×100×60 100×100×60 100×120×60 100×100×100
External chamber size W×H×D(cm) 72×116×56 93×163×67 110×172×77 130×172×77 116×170×116 116×150×166
Temperature range Room temperature+25ºC~200ºC(300ºC)
Temperature fluctuation ±0.3ºC
Temperature uniformity ±1%ºC
Temperature resolution 0.1ºC
Heating up time 30min
External chamber material Cold roolled sheet + Powder coating
Internal chamber material SUS#201 stainless steel plate (Adopt SUS#304 stainless steel when temperature>200ºC)
Insulation Fiberglass wool
Wind circulation system Centrifugal fan air circulation system
Heating system SUS#stainless steel high-speed heater
Control system Button type Digital controller
Other components Cotrol status indicator,loading shelf(2pcs,height adjustable)
Safety device Phase sequence protection,overtemperature,overcurrent,overload protection
Power supply AC 1ψ220V 60/50Hz;AC 3ψ380V 60/50Hz
Customization service Non-standard or special requirements are all welcome


Company profile





Product Image

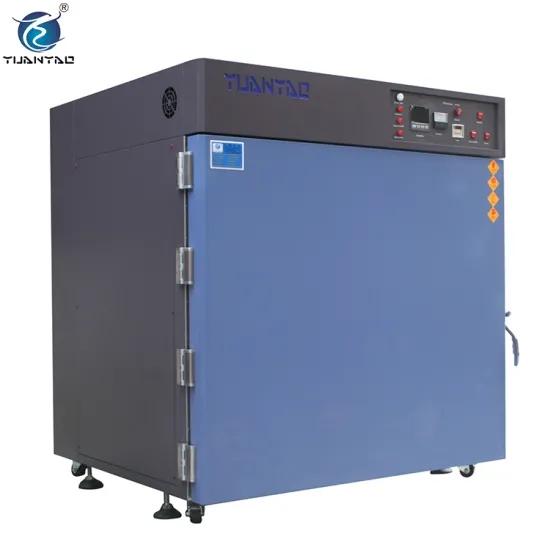

Industrial High Temperature Precision Hot Air Cycle Drying Test Oven 1
