Hook Pot Magnet of NdFeB 1
  • Hook Pot Magnet of NdFeB 1

Hook Pot Magnet of NdFeB

Model:10
Brand:Horizon
Origin:Made In China
Category:Electronics & Electricity / Magnetic Materials
Label:Neodymium magnet , Shuttering Magnet , motor magnet
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Ningbo Horizon Magnetic Technologies Co., Ltd.

Free MemberZhe Jiang - China
Live Chat:Last Online:14 May, 2020

Product Description

Hook Pot Magnet of NdFeB

insulated magnet

glued magnet

Horizon have been producing and supplying the pot magnet. The pot magnet is also called cup magnet, holding magnet, round base magnet, mounting magnet, flat pot magnet, etc. The pot magnet consists of a cylindrical or ring NdFeB (Neodymium-iron-boron) magnet assembled with a concentric non magnetic ring into a steel pot. The magnet is magnetized together with the pot to create a holding force that is significantly stronger than an individual magnet, because this pot structure directs and concentrates the flux from both magnetic poles to one active face.

Hook Pot Magnet of NdFeB  will retain its magnet force permanently unless working temperature or external magnetic field increases. The size, shape and magnet material of the pot magnet can adjust to its usage requirements including pull strength, working temperature, etc.

The pot magnet is versatile so that it is appropriate for various industrial applications. The typical applications are fixture positioning, sign and banner holders, emergency light holders, tool bases, etc.

When considering your selection, please be aware of the following factors: The stated force (holding/gripping) is based on the pot magnet retaining force against a direct pull when offered to a clean ground mild steel surface with a minimum thickness of 6mm. The smallest gap, even paint or un-ground surface will reduce the holding force significantly. On a vertical surface the holding force is reduced by approximately 70%.

Advantages over Competitors:

Quality First: genuine Neodymium magnet, magnet size NEVER smaller than requirement

More sizes available to save tooling cost

Standard sizes in stock and available for immediately delivery

Custom-made solutions available upon request

Technical Data:

Part Number

D
(mm)

M
(mm)

H
(mm)

h
(mm)

Force
(kg)

Net Weight
(g)

Maximum Operating Temperature
(°C)

HM-E16

16

4

13

5

7.5

11

80

HM-E20

20

4

15

7

15

21

80

HM-E25

25

4

17

8

25

37

80

HM-E32

32

4

18

8

38

56

80

HM-E36

36

5

18

8

43

68

80

HM-E42

42

5

20

9

66

97

80

HM-E48

48

8

24

11.5

88

154

80

HM-E60

60

8

30

15

112

282

80

HM-E75

75

8

33

18

162

560

80


Payment Terms:T/T, L/C

Product Image

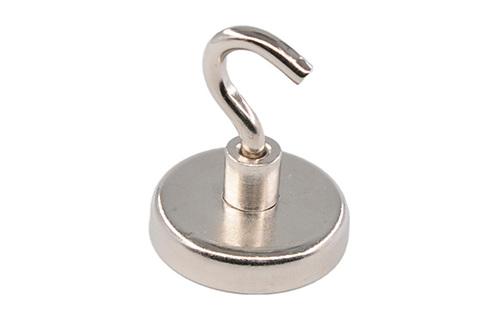

Hook Pot Magnet of NdFeB 1
