Laminated Magnet

Stable working Laminated Magnet

Neodymium Laminated Magnet

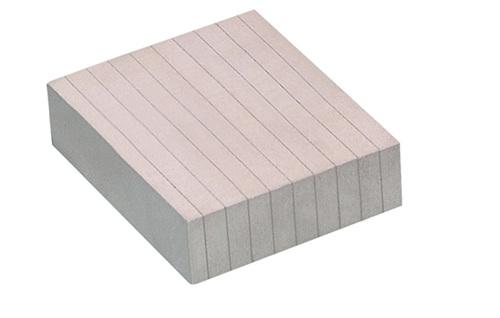

Laminated magnet is produced with several pieces of magnets glued so as to reach insulation effect between those pieces. Therefore sometimes laminated magnet is also called insulated magnet or glued magnet. Laminated SmCo or laminated Neodymium rare earth magnets are proven to reduce the eddy current loss for the high efficiency motors.

The fewer the eddy current loss becomes, the lower the heat generates to enhance higher efficiency. Nowadays the demand of laminated rare earth magnets has been going up, because aerospace, industrial markets and promising EV especially are dedicating to pursuing the balance between motor power and heat. Thanks to knowledge in electric motor and extensive experience in laminated magnets, Horizon can work with customers to improve motor performance through ensuring laminated magnets with following characteristics:

Stable working at temperature up to 200˚C

Consistency of insulation guaranteed

Insulation layer ranging 25 -100 μm

Magnet layer with thickness from 0.5mm and up in a wide of shapes like block, loaf, segment and wedge

Magnet material in SmCo or Neodymium

More information please view here.
