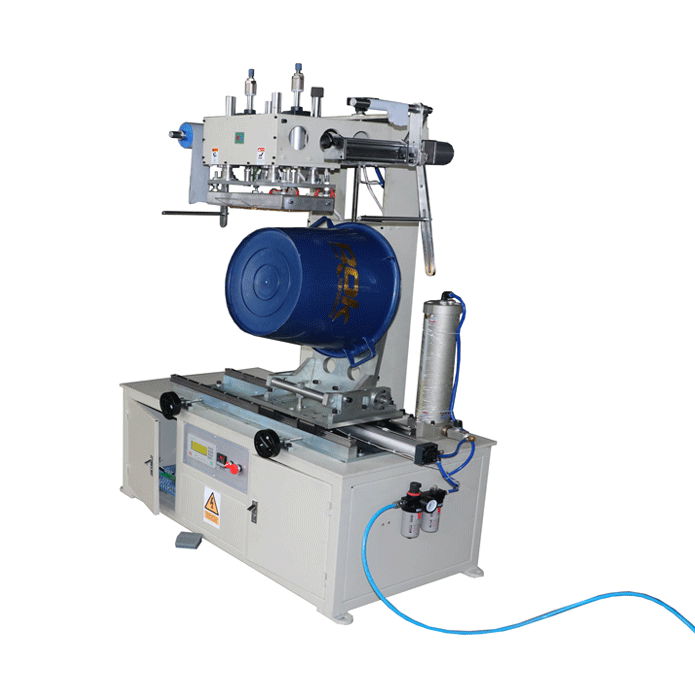

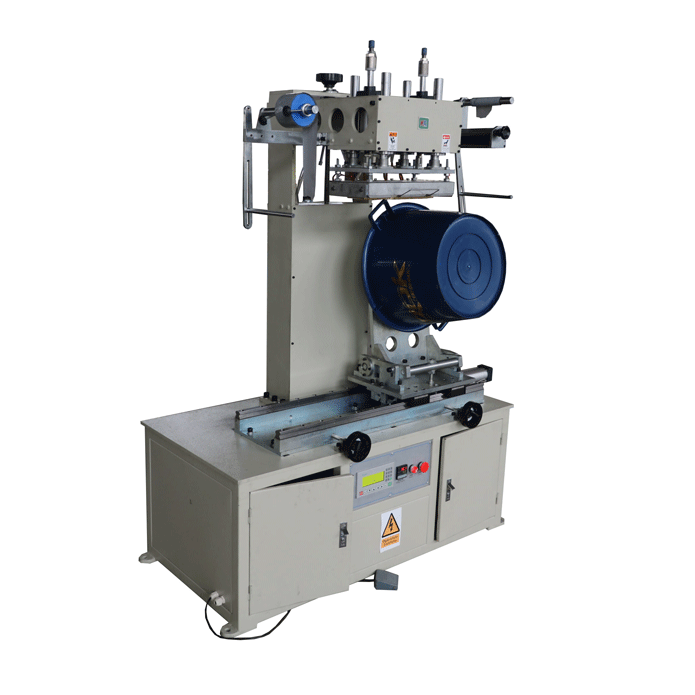

H-TC300K Pneumatic Flat-cylinder hot stamping Machine//Structure

Working table

Shuttle working table, Max stamping diameter: 300mm

Stamping Head drive

Pneumatic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

Up-down of Stamping head

Temperature control

Heating tube heat up，Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Stamping plate size

150*300mm.

H-TC300K Pneumatic cylinder hot stamping machine //Usage and characters

Guide

• Stamping circular diameter of 100mm, widely used in cosmetic packaging, stationery, manufacturing, process gifts,
• Gilding - paper, leather, wood, plastic,
• Flat-object stamping machine , Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Electron products;
• Automatic feed foil, automatic temperature controlling ensures stamping quality.
• Pneumatic drive,;
• Suitable for bottle, cosmetic case cap.

Application fields

• Paper Gilding, Leather Impression,
• Plastics Bronzing
• Leather bronzing and Molding;
• Small diameter cylinder

H-TC300K Pneumatic cylinder hot stamping Machine //Parameter

Technical parameters

• Size of stamping plate: 150×300 mm;
• Heater Wattage: 2000W;
• Stamping height adjustable range =500 mm;
• Max. stamping diameter: For whole circle: 100mm For partial circle: 300mm;
• Stamping temperature adjustable range: 0 -300oC;
• Stamping foil pulling length: =300 mm;
• Stroke of stamping plate: 300 mm;
• Max. stamping pressure: 3500 kgf (7bar);
• Max. stamping speed: 300 pcs/h;
• Power: 110/220V, 60/50Hz;
• Air consumption: 186 litre/min.

Works supply

• 110V-220VPower supply；
• 5-7Bar compress air

Package list

• Package size: 1.70*1.00*1.750m;
• Gross weight: 565kg;
• CBM:2.975

H.S.Code

8443198000

Certificate

CE

H-TC300K Pneumatic cylinder hot stamping machine //Advantage

Function

• Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
• Relays for process control, stable operation, easy maintenance;
• The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
• leveraged cylinder pressure, the pressure is uniform and strong;
• The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
• Motor to control the delivery of the gold foil , resin length can be flexibly adjusted according to the size of the stamping area;
• Using high strength steel, gilt plate and table, has a very high flatness;
• Heating tube for heating, heat supply is stable, easy to replace;
• Safe protection device installed;
• The stamping head height adjustable;
• Shuttle stable shift ensure stamping cylindrical workpiece;
• Stamping flat workpiece while uninstall the shuttle;
• With oil - gas shift cylinder, ensuring a more stable pressure bronzing.
