Stalility hot stamping machine(H-TC4060LPN)

Model:H-TC4060LPN
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:hot stamping machine , gilding machine , bronzing machine
Price: US $8970 / pic
Min. Order:1 pic
Inquire Now Add to Basket

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:11 Jan, 2023

Product Description

     There will be huge pressure when the hot plate and the worktable are in contact, which is a potential safety hazard for all hot stamping machines. In order to improve the safety of the hot stamping machine, you can install a safety door, install a safety grating, and use a two-button operation mode. Another important practice is to set the workbench to enter and exit automatically. The workbench enters and exits automatically, which can facilitate the pick-and-place of the product and avoid the safety failure of the operator.
     The automatic entry and exit of the workbench is also convenient for the operator to observe the product placement, which is more conducive to product positioning. The complete solution to the safety problem of the semi-automatic plane hot stamping machine is to use a fully automatic hot stamping machine, that is, automatic feeding, automatic hot stamping, and automatic unloading, which completely eliminates the possibility of the operator touching the hot plate and the workbench. However, during the deb ing process of the machine, this kind of contact is still unavoidable, and it is necessary to carry out the necessary safety training for the operator.

H-TC4060LPN Pneumatic move-table hot stamping Machine//Structure

Working table

High strength Steel plate , size: 520*800mm. automatically in-out

Stamping Head drive

Pneumatic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

Up-down of working table

Temperature control

Heating tube heat up,Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Stamping plate size

400*600mm.

H-TC4060LPN Pneumatic hot stamping machine //Usage and characters

Guide

  • Gilding - paper, leather, wood, plastic,
  • Baked - wood products, baked painting, gift box packaging;
  • Embossing - paper, leather, cloth.
  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
  • Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
  • Pneumatic drive, pressure large.
  • Working table can automatically in and out fr products replacing and taking off

Application fields

  • Paper Gilding, Leather Impression, Wood ware Baking
  • Paper Concave-convex embossing, Cloth hot stamping,
  • Plastics Bronzing
  • Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
  • Woodiness objects baking-burns and Impress;
  • Leather bronzing and Molding;
  • Paper products concavo indentation.
  • Graduated disc of clock bronzing.
  • Die-cutting.

H-TC4060LPN Pneumatic hot stamping Machine //Parameter

Technical parameters

H-TC4050LPN Pneumatic hot stamping Machine with movement table
1. Hot plate area:400×500 mm
2. Working table area:800 ×520mm
3. Max printing pressure:15,000 Kg
4. Up and down distance:70mm
5. Heat wattage: 6×800W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC 。

H-TC4060LPN Pneumatic hot stamping Machine with movement table
1. Hot plate area:400×600 mm
2. Working table area:800 ×520mm
3. Max printing pressure:15,000 Kg
4. Up and down distance:70mm
5. Heat wattage: 6×800W
6. Foil in feed: Motor Drive
7. Temperature adjustment:0-300oC 。

Works supply

  • 110V-220VPower supply;
  • 5-7Bar compress air

Package list

  • Package size: 1160*1200*1900mm'
    Gross weight: 780kg;
    CBM: 2.6448



H.S.Code

8443198000

Certificate

CE

H-TC4060LPN Pneumatic hot stamping machine //Advantage

Function

  • Bench made ​​of high strength cast steel forging, has a very high flatness and stability;
  • Working table can automatically in and out fr products replacing and taking off ;
  • Thread rising institutions to adjust the table lift to facilitate the opening and closing of space according to the height adjustment of the product tipping machine;
  • Relay control program is running, easy operation, easy maintenance;
  • Pairs of buttons control the stamping head up and down, security is greatly enhanced;
  • Pneumatic drive instead of the pneumatic drive, stamping pressure significantly improve the stability is greatly enhanced;
  • Heating pipe heating, rapid heating, replacement is simple and convenient;
  • Heating plate can be removed to facilitate installation and replacement gilt template;
  • Ironing board and table parallelism can be adjusted to facilitate the flexible adjustment depending on the size of the different regions of the pressure;
  • Automatic temperature control system can be set depending on the product temperature, automatic temperature control; temperature control accuracy of about 5 degrees;
  • Hot foil stamping degree of time and rolls of time can be set freely according to different technical requirements;
  • Foil paper automatic document feeder, conveyor length can be set according to the size of the stamping area of ​​freedom.

Application: There will be huge pressure when the hot plate and the worktable are in contact, which is a potential safety hazard for all hot stamping machines. In order to improve the safety of the hot stamping machine, you can install a safety door, install a safety grating, and use a two-button operation mode. Another important practice is to set the workbench to enter and exit automatically. The workbench enters and exits automatically, which can facilitate the pick-and-place of the product and avoid the safety failure of the operator.
The automatic entry and exit of the workbench is also convenient for the operator to observe the product placement, which is more conducive to product positioning. The complete solution to the safety problem of the semi-automatic plane hot stamping machine is to use a fully automatic hot stamping machine, that is, automatic feeding, automatic hot stamping, and automatic unloading, which completely eliminates the possibility of the operator touching the hot plate and the workbench. However, during the deb ing process of the machine, this kind of contact is still unavoidable, and it is necessary to carry out the necessary safety training for the operator.

Product Image

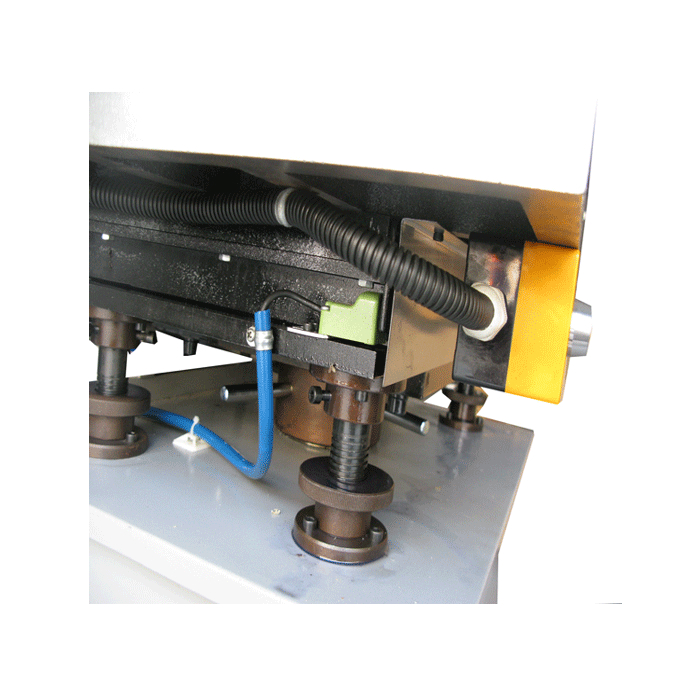

Stalility hot stamping machine(H-TC4060LPN) 1
Img 1

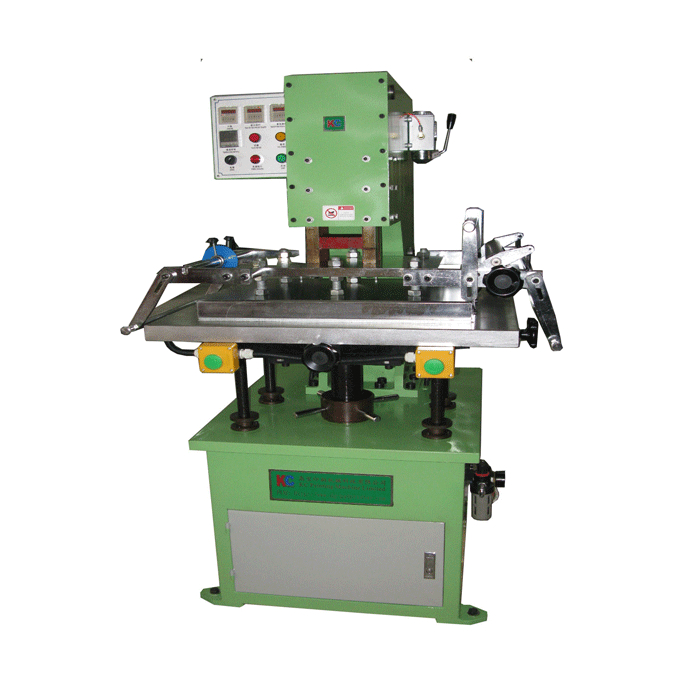

Stalility hot stamping machine(H-TC4060LPN) 2
Img 2

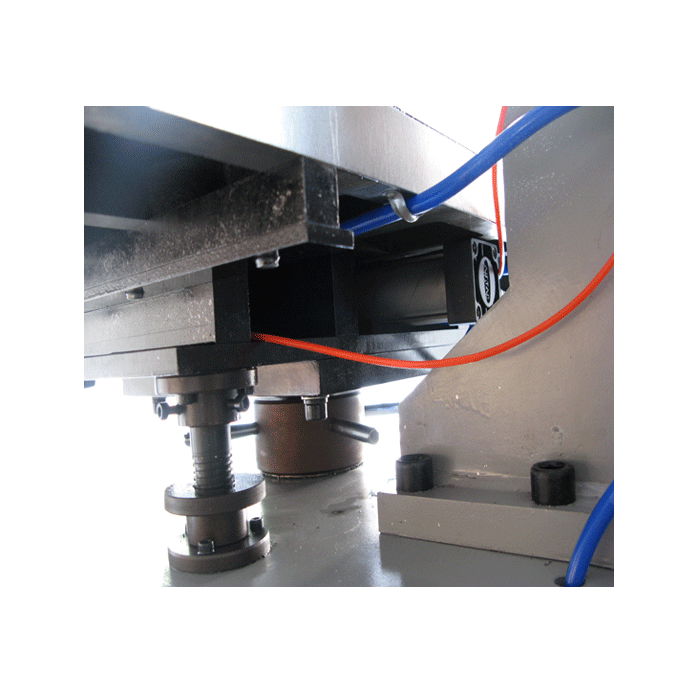

Stalility hot stamping machine(H-TC4060LPN) 3
Img 3
Stalility hot stamping machine(H-TC4060LPN) 4
Img 4
Stalility hot stamping machine(H-TC4060LPN) 5
Img 5
Stalility hot stamping machine(H-TC4060LPN) 6
Img 6
