| Model: | NT-CFTAP-26XG-D |
|---|---|
| Brand: | NetTAP® |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Network Communications Equipment |
| Label: | Network TAP , Network Visibility , network packet brok |
| Price: |
¥9000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:26 Oct, 2021 |

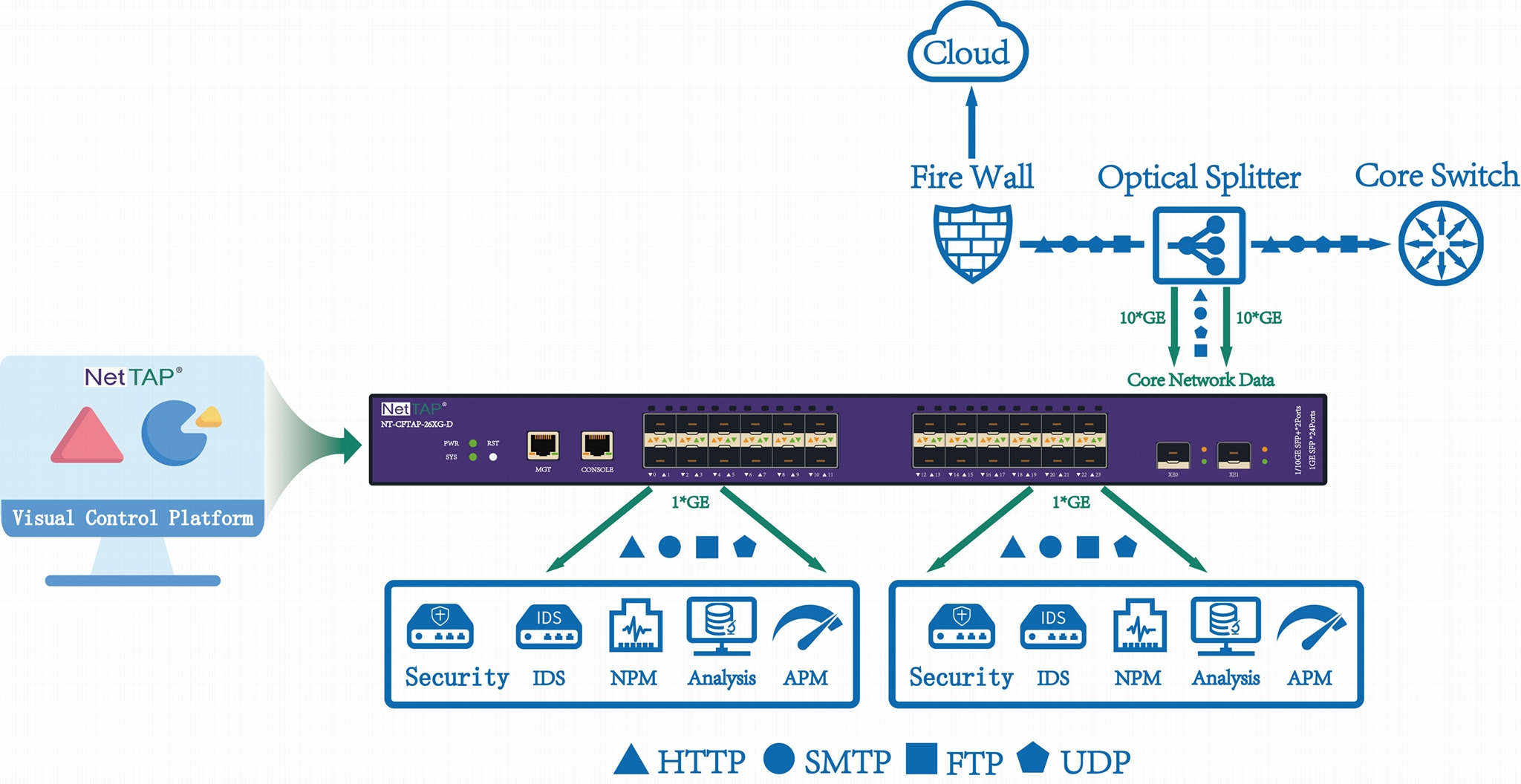

1- Overviews
NetTAP® A full visual control of Data Acquisition device(2*10GE SFP+ plus 24*GE SFP ports).
NetTAP® A full Data Scheduling Management device(duplex Rx/Tx processing).
NetTAP® A full pre-processing and re-distribution device(bidirectional bandwidth 64Gbps).
NetTAP® Supported collection & reception of link data from different network element locations.
NetTAP® Supported collection & reception of link data from different switch routing nodes.
NetTAP® Supported raw packet collected, identified, analyzed, statistically summarized and marked.
NetTAP® Supported to realize irrelevant upper packaging of Ethernet traffic forwarding, supported all kinds of Ethernet packaging protocols, and aslo 802.1q/q-in-q, IPX/SPX, MPLS, PPPO, ISL, GRE, PPTP etc. protocol packaging.
NetTAP® Supported raw packet output for monitoring equipment of BigData Analysis, Protocol Analysis, Signaling Analysis, Security Analysis, Risk Management and other required traffic.
2- Specifications
|

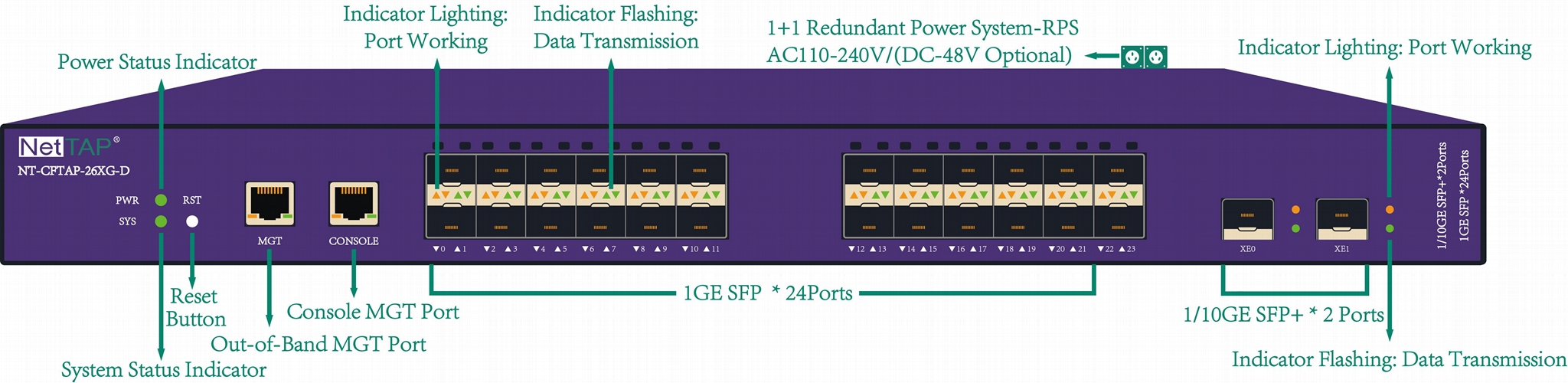

NT-CFTAP-26XG-D NetTAP® NPB Functional Parameters |
||
|
Network Interface |
GE ports |
24*GE SFP slots |
|
|
10GE ports |
2*10GE SFP+ slots |
|
Deployment mode |
SPAN monitoring input |
support |
|
|
In-line mode |
support |
|
|
Total QTYs interface |
26 |
|
|
Traffic replication / aggregation / distribution |
support |
|
|
Link QTYs supporting Mirror replication / aggregation |
1 -> N link traffic replication (N <26) N-> 1 link traffic aggregation (N <26) G Group(M-> N Link) traffic replication and aggregation [G * (M + N) <26] |
|
Functions |
Distribution based on traffic identification |
support |
|
|
Distribution based on IP / protocol / port Five tuple traffic identification |
support |
|
|
Distribution strategy based on protocol header the key labeled traffic identifies |
support |
|
|
Strategic distribution based on deep message content identification |
support |
|
|
Support Ethernet encapsulation independence |
support |
|
|
CONSOLE Network Management |
support |
|
|
IP/WEB Network Management |
support |
|
|
SNMP V1/V2C Network Management |
support |
|
|
TELNET/SSH Network Management |
support |
|
|
S OG Protocol |
support |
|
|
User authentication function |
Password authentication based on user name
|
|
Electric(1+1 Redundant Power System-RPS) |
Rated supply voltage |
AC110-240V/DC-48V [Optional] |
|
|
Rated power frequency |
AC-50HZ |
|
|
Rated input current |
AC-3A / DC-10A |
|
|
Rated power function |
150W(24G: 100W ) |
|
Environment |
Operating Temperature |
0－50℃ |
|
|
Storage Temperature |
-20-70℃ |
|
|
Operating Humidity |
10%-95%, Non-condensing |
|
User Configuration |
Console Configuration |
RS232 Interface, 9600,8,N,1 |
|
|
Password authentication |
support |
|
Rack Height |
Rack space (U) |
1U 460mm*45mm*440mm |
3- Order Information
NT-CFTAP-28XG-D 24*GE SFP ports plus 2*10GE SFP+ ports
